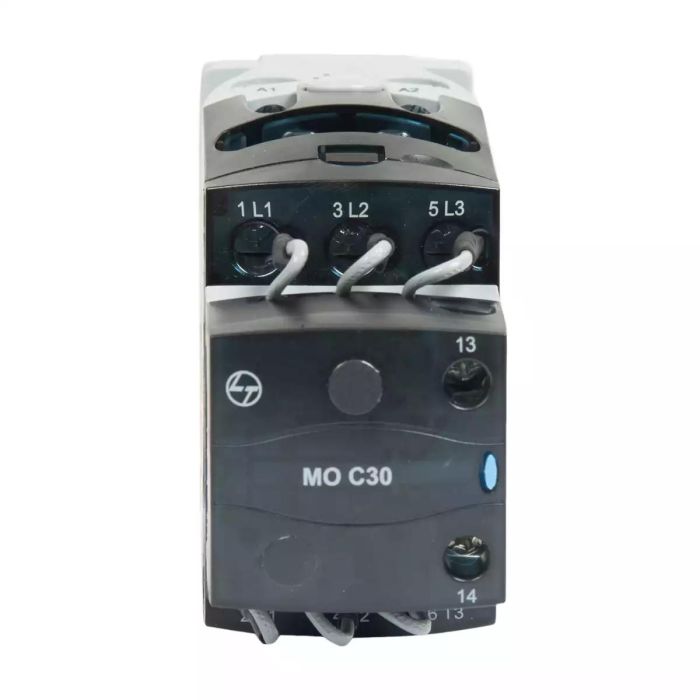

Lauritz Knudsen Capacitor Duty Contactors, MO C, 30kVAr, 240V AC | 3 Pole | 1 Built-in Auxiliary Contacts | AC-6b| Heavy‑Duty Contacts for Long‑Term Durability
SKU :
CS96148BOOO
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CS96148BOOO
Lauritz Knudsen Capacitor Duty Contactors, MO C, 30kVAr, 240V AC | 3 Pole | 1 Built-in Auxiliary Contacts | AC-6b| Heavy‑Duty Contacts for Long‑Term Durability
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹9,190.00
₹7,995.68
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Estimated delivery:
Out of stock
Disclaimer:
Following the brand transition from L&T Switchgear to Lauritz Knudsen effective 29 May 2024, products supplied by sellers may carry either the L&T or Lauritz Knudsen brand name depending on stock availability.
Show More
Lauritz Knudsen Capacitor Duty Contactors, MO C, 30kVAr, 240V AC | 3 Pole | 1 Built-in Auxiliary Contacts | AC-6b| Heavy‑Duty Contacts for Long‑Term Durability
₹9,190.00
₹7,995.68
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Lauritz Knudsen MO C Capacitor Duty Contactors are specially designed for capacitor switching applications.
- As capacitor switching is associated with high inrush current, the contactors are provided with damping resistors which limit the value of inrush current to a safe value.
- The contactors are used in APFC panels for switching power capacitors depending upon the amount of reactive power compensation required.
- The MO C contactors are 3-pole contactors are of the block type design - Control circuit: AC operated and suitable for 50/60Hz frequency - Accessories: a wide range of accessories is available.
Overview
| Ambient temperature | -5 to 55 degree C |
|---|---|
| Mechanical Life (No. of operating cycles) | 240 Operations/Hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 1000V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741, EN 6094741 |
| Coil Voltage | 240 V AC |
| Rated operational current at 415V | 39.4A |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 3P |
| Height(mm) | 115 |
| Width(mm) | 56 |
| Depth(mm) | 133.5 |
| Rated kW | 30kVAr |
| Coil Operating band %Uc (Pick up) | 65 - 110 % |
| Mechanical Life | 10 million |
| Coil Operating band %Uc (Drop off) | 35 - 65 % |
| Pick up VA consumption | 77VA |
| Hold on VA consumption | 9VA |
