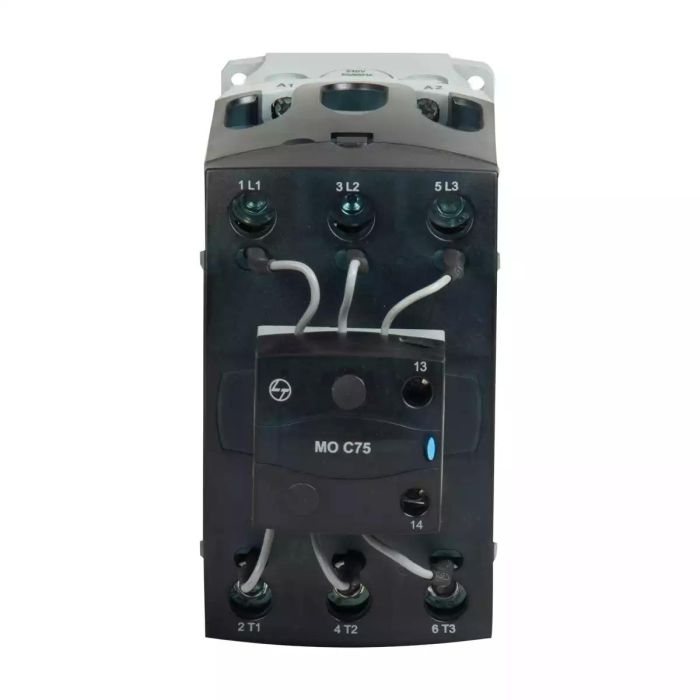

MO C Capacitor Duty Contactor 75kVAr 3P 440V AC In Built 1NO AC-6b 415V AC Coil 50/60 Hz

In stock
SKU
CS96150DOOO
Regular Price ₹17,800.00 Special Price ₹14,702.80
17% Off ( Prices are all inclusive of taxes )
Be the first to review this product
Add to Compare
MO C Capacitor Duty Contactor 75kVAr 3P 440V AC In Built 1NO AC-6b 415V AC Coil 50/60 Hz

HSN Code - 85369090

The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.

Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.

CHECK DELIVERY TIME & COD AVAILABILITY

  • MO C Capacitor Duty Contactors are specially designed for capacitor switching applications.
  • As capacitor switching is associated with high inrush current, the contactors are provided with damping resistors which limit the value of inrush current to a safe value.
  • The contactors are used in APFC panels for switching power capacitors depending upon the amount of reactive power compensation required.
  • The MO C contactors are 3-pole contactors are of the block type design - Control circuit: AC operated and suitable for 50/60Hz frequency - Accessories: a wide range of accessories is available.
Technical Specifications
  • Ambient temperature
    -5 to 55 degree C
  • Mechanical Life (No. of operating cycles)
    240 Operations/Hr
  • Rated impulse withstand voltage (Uimp)
    8kV
  • Rated Insulation Voltage Ui (V)
    1000V
  • Conformance to Standards
    IS/IEC 6094741, IEC 6094741, EN 6094741
  • Coil Voltage
    415 V AC
  • Rated operational current at 415V
    98.4A
  • Discount Percentage
    Between 0-10 %
  • No. of Poles
    3P
  • Height(mm)
    135
  • Width(mm)
    70
  • Depth(mm)
    175
  • Rated kW
    75kVAr
  • Coil Operating band %Uc (Pick up)
    75 - 110 %
  • Mechanical Life
    10 million
  • Coil Operating band %Uc (Drop off)
    35 - 65 %
  • Pick up VA consumption
    240VA
  • Hold on VA consumption
    25VA
