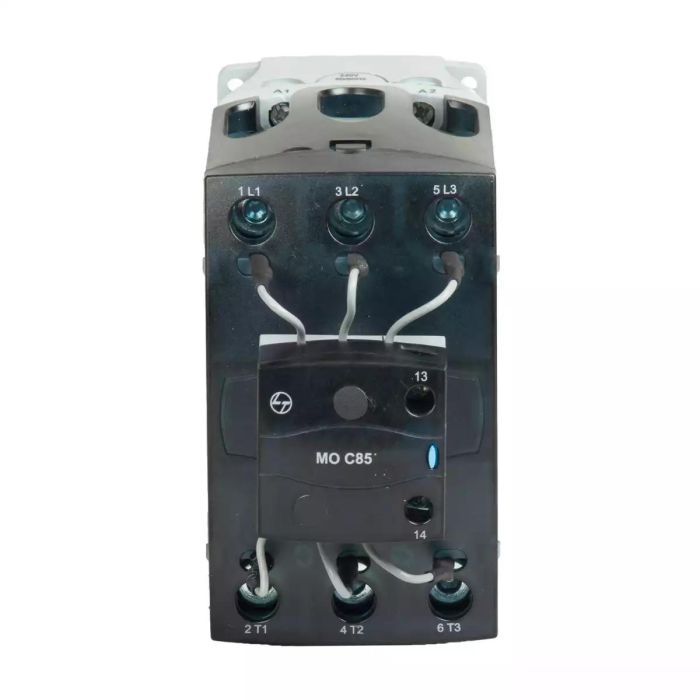

Lauritz Knudsen Capacitor Duty Contactors, MO C, 85kVAr, 240V AC | 3 Pole | 1 Built-in Auxiliary Contacts | AC-6b| Heavy‑Duty Contacts for Long‑Term Durability
SKU :
CS96157BOOO
Lauritz Knudsen Capacitor Duty Contactors, MO C, 85kVAr, 240V AC | 3 Pole | 1 Built-in Auxiliary Contacts | AC-6b| Heavy‑Duty Contacts for Long‑Term Durability
Cat. No./SKU:
CS96157BOOO
Images:
Image 360:
How to video:
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CS96157BOOO
Lauritz Knudsen Capacitor Duty Contactors, MO C, 85kVAr, 240V AC | 3 Pole | 1 Built-in Auxiliary Contacts | AC-6b| Heavy‑Duty Contacts for Long‑Term Durability
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Minimum quantity allowed :
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹28,390.00
₹26,800.16
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Estimated delivery:
Out of stock
Minimum quantity allowed :
Lauritz Knudsen Capacitor Duty Contactors, MO C, 85kVAr, 240V AC | 3 Pole | 1 Built-in Auxiliary Contacts | AC-6b| Heavy‑Duty Contacts for Long‑Term Durability
₹28,390.00
₹26,800.16
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Lauritz Knudsen MO C Capacitor Duty Contactors are specially designed for capacitor switching applications.
- As capacitor switching is associated with high inrush current, the contactors are provided with damping resistors which limit the value of inrush current to a safe value.
- The contactors are used in APFC panels for switching power capacitors depending upon the amount of reactive power compensation required.
- The MO C contactors are 3-pole contactors are of the block type design - Control circuit: AC operated and suitable for 50/60Hz frequency - Accessories: a wide range of accessories is available.
Overview
| Ambient temperature | -5 to 55 degree C |
|---|---|
| Mechanical Life (No. of operating cycles) | 240 Operations/Hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 1000V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741, EN 6094741 |
| Coil Voltage | 240 V AC |
| Rated operational current at 415V | 111.5A |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 3P |
| Height(mm) | 135 |
| Width(mm) | 70 |
| Depth(mm) | 175 |
| Rated kW | 85kVAr |
| Coil Operating band %Uc (Pick up) | 75 - 110 % |
| Mechanical Life | 10 million |
| Coil Operating band %Uc (Drop off) | 35 - 65 % |
| Pick up VA consumption | 240VA |
| Hold on VA consumption | 25VA |
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects...
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
