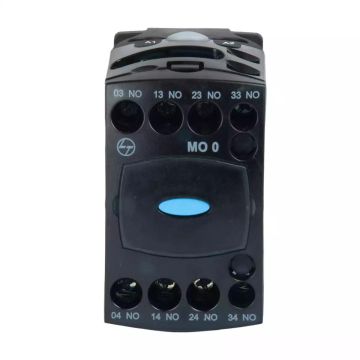

MO0 Control Contactor 4A 4P 415V AC 4NO AC-15 415V AC Coil 50/60 Hz
In stock
SKU
CS91623DOOO
Regular Price
₹935.00
Special Price
₹772.31
17% Off
( Prices are all inclusive of taxes )MO0 Control Contactor 4A 4P 415V AC 4NO AC-15 415V AC Coil 50/60 Hz
HSN Code - 85369090
HSN Code - 85369090
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
CHECK DELIVERY TIME & COD AVAILABILITY
- MO0 AC control contactors are 4 pole block type contactors.
- These contactors are used for switching auxiliary circuits and control circuits.
- The number of contacts can be extended up to 8 nos with the help of addon blocks.
- Control circuit : AC operated and suitable for 50/60 Hz.
- DIN rail mounting facility available.
- Wide range of accessories and spares are available
-
Ambient temperature-5 to 55 degree C
-
Mechanical Life (No. of operating cycles)7200 Operations/Hr
-
Rated impulse withstand voltage (Uimp)8kV
-
Rated Insulation Voltage Ui (V)1000V
-
Conformance to StandardsIS/IEC 6094751, IEC 6094751, EN 6094751
-
Coil Voltage415 V AC
-
Rated operational current at 415V4A (AC15)
-
Discount PercentageBetween 0-10 %
-
No. of Poles4NO
-
Height(mm)86.5
-
Width(mm)45
-
Depth(mm)89
-
Coil Operating band %Uc (Pick up)65 - 110 %
-
Mechanical Life10 million
-
Coil Operating band %Uc (Drop off)30 - 55 %
-
Pick up VA consumption68VA
-
Hold on VA consumption9VA
