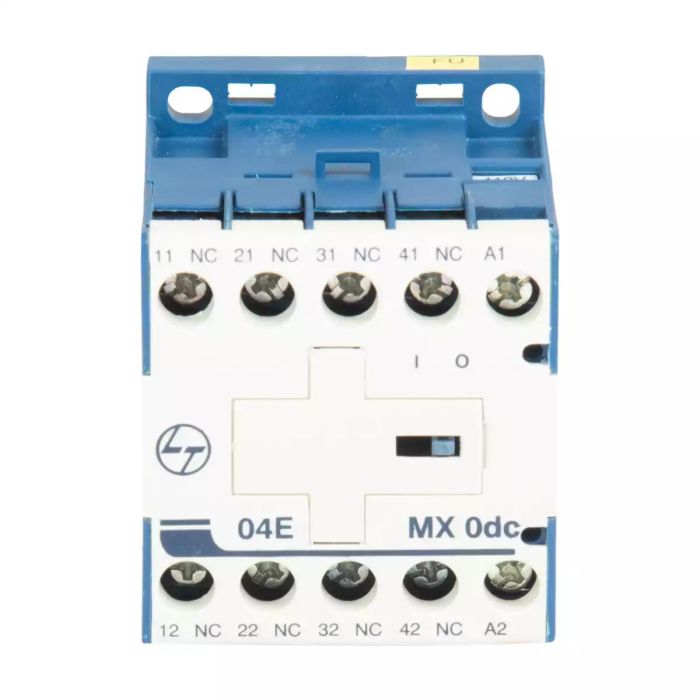

MX0 Mini Control contactor 4A 4P 415V AC 4NC AC-15 110V DC Coil

CS940441OOO
5 (1 reviews)

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

  • MX0 DC control contactors are 4 pole mini type contactors.
  • These contactors are used for switching auxiliary circuits and control circuits.
  • The contactors have acompact design and exhibit reliable performance even in smaller space.
  • The number of contacts can be extended up to 8 nos with the help of addon blocks.
  • Control circuit : DC operated.
  • DIN rail mounting facility available.
  • Wide range of accessories available

Product Details

Ambient temperature -5 to 55 degree C
Mechanical Life (No. of operating cycles) 9000 Operations/Hr
Rated impulse withstand voltage (Uimp) 8kV
Rated Insulation Voltage Ui (V) 690V
Conformance to Standards IS/IEC 6094751, IEC 6094751, EN 6094751
Coil Voltage 110 V DC
Rated operational current at 415V 4A (AC15)
Discount Percentage Between 0-10 %
No. of Poles 4NC
Height(mm) 58
Width(mm) 45
Depth(mm) 54.5
Coil Operating band %Uc (Pick up) 80 - 110 %
Mechanical Life 10 million
Coil Operating band %Uc (Drop off) 10 - 65 %
Pick up VA consumption 2.8VA
Hold on VA consumption 2.8VA
