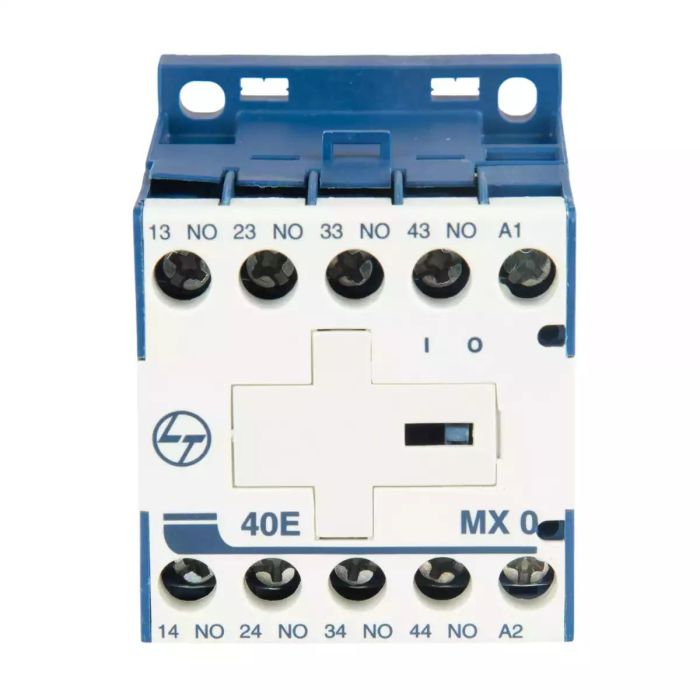

MX0 Mini Control contactor 4A 4P 415V AC 4NO AC-15 110V AC Coil 50 Hz
In stock
SKU
CS94018AOOO
Regular Price
₹1,460.00
Special Price
₹1,205.96
17% Off
( Prices are all inclusive of taxes )MX0 Mini Control contactor 4A 4P 415V AC 4NO AC-15 110V AC Coil 50 Hz
HSN Code - 85369090
HSN Code - 85369090
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
CHECK DELIVERY TIME & COD AVAILABILITY
- MX0 AC control contactors are 4 pole mini type contactors.
- These contactors are used for switching auxiliary circuits and control circuits.
- The contactors have acompact design and exhibit reliable performance even in smaller space.
- The number of contacts can be extended up to 8 nos with the help of addon blocks.
- Control circuit : AC operated.
- DIN rail mounting facility available.
- Wide range of accessories available
-
Ambient temperature-5 to 55 degree C
-
Mechanical Life (No. of operating cycles)9000 Operations/Hr
-
Rated impulse withstand voltage (Uimp)8kV
-
Rated Insulation Voltage Ui (V)690V
-
Conformance to StandardsIS/IEC 6094751, IEC 6094751, EN 6094751
-
Coil Voltage110 V AC
-
Rated operational current at 415V4A (AC15)
-
Discount PercentageBetween 0-10 %
-
No. of Poles4NO
-
Height(mm)58
-
Width(mm)45
-
Depth(mm)54.5
-
Coil Operating band %Uc (Pick up)80 - 110 %
-
Mechanical Life10 million
-
Coil Operating band %Uc (Drop off)20 - 65 %
-
Pick up VA consumption26VA
-
Hold on VA consumption4.5VA
