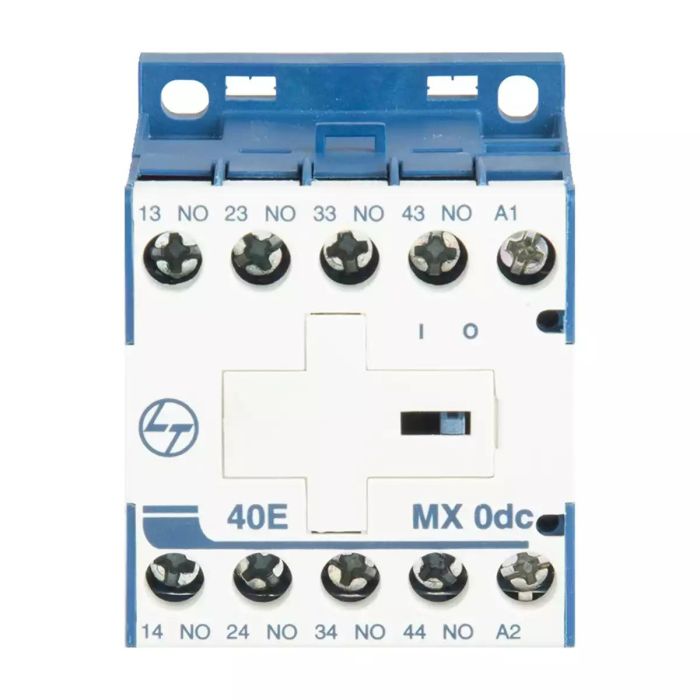

Lauritz Knudsen Control Relay (Auxiliary Contactor), MX0, 40E, 110V DC | 4 Pole | with 4 Inbuilt | AC-15| Compact & Efficient Design
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen Control Relay (Auxiliary Contactor), MX0, 40E, 110V DC | 4 Pole | with 4 Inbuilt | AC-15| Compact & Efficient Design
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen MX0 Mini Control Contactor 4A 4P 415V AC (AC 15) with 4NO Auxiliary Contacts & 110V DC Coil is a compact & high-performance switching device engineered for industrial automation & electrical control applications requiring DC-operated control systems & space-saving panel integration. With a 4A rating & 4 pole configuration, it is ideal for low-power control circuits that demand precise & dependable switching.
Designed for the AC 15 utilization category, this mini contactor is optimized for control circuit switching, handling electromagnetic loads such as relays, PLC outputs, timers, & signaling devices. The 4 normally open (4NO) contact configuration enables multi-output switching, making it suitable for applications where multiple circuits need to be controlled simultaneously.
The 110V DC coil ensures stable DC operation with fast response time, reduced electrical noise, & greater control efficiency, making it highly suitable for modern PLC-based automation environments. Its compact mini design allows installation in space-constrained control panels while maintaining durability & long-term reliability. Built using high-quality materials & precision engineering, this contactor ensures safe operation, long service life, & consistent performance in demanding industrial conditions.
Purpose & Function
This mini control contactor is designed for compact multi-output DC automation systems:
• Controls switching operations in industrial automation circuits
• Operates relays, timers, & signaling devices
• Provides flexible multi-output control using 4NO contacts
• Ensures stable & efficient DC control operation
• Enhances performance in automation control panels
Electrical Configuration
• Product type: Mini Control Contactor
• Model: MX0
• Rated current: 4A
• Number of poles: 4P
• Voltage rating: 415V AC
• Utilization category: AC 15 (control circuit switching)
• Contact configuration: 4NO
• Coil voltage: 110V DC
• Frequency: DC operation
• Function: Control circuit switching & automation
Construction & Design
Engineered for compact & reliable DC control applications:
• Miniature design for space-saving panel installation
• Precision contact system for accurate switching
• Durable contact materials for extended operational life
• Robust housing suitable for industrial environments
• High mechanical & electrical endurance
Safety & Protection
• Ensures safe & stable DC switching performance
• Minimizes electrical faults & contact wear
• Provides reliable performance under frequent switching
• Enhances automation system reliability
• Protects connected control equipment
Mounting & Installation
• Suitable for panel mounting in compact control systems
• Space-efficient mini design for dense panel layouts
• Easy wiring & installation process
• Compatible with PLC & DC automation panels
• Designed for quick maintenance & replacement
Application Domains
• Industrial automation systems
• PLC & control panels
• Machine control circuits
• Process automation applications
• Electrical control systems
• OEM compact equipment
Key Features
• 4A mini control contactor
• 4-pole configuration
• AC 15 rated for control circuits
• 4NO contact configuration
• 110V DC coil
• Compact & space-saving design
Applications
• Multi-output control circuit switching
• PLC & DC automation systems
• Relay & timer control circuits
• Machine control panels
• Industrial process control systems
FAQs
1. What is an AC 15 contactor?
Ans: An AC 15 contactor is designed for switching control circuits & electromagnetic loads such as relays & coils.
2. What is the advantage of 4NO contacts?
Ans: It allows multiple circuits to be controlled simultaneously, making it ideal for automation systems with multiple outputs.
3. Why use a 110V DC coil?
Ans: It ensures stable DC operation, faster switching response, & reduced electrical interference.
4. Where is this contactor used?
Ans: It is used in automation panels, DC control systems, & industrial applications.
5. What is the benefit of a mini contactor?
Ans: It saves panel space while maintaining reliable switching performance.
6. Is this suitable for motor control?
Ans: No, it is designed specifically for control circuits, not for direct motor switching.
7. Why use DC control contactors?
Ans: They provide efficient, stable, & low-noise performance in modern automation systems.
Overview
| Ambient temperature | -5 to 55 degree C |
|---|---|
| Mechanical Life (No. of operating cycles) | 9000 Operations/Hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 690V |
| Conformance to Standards | IS/IEC 6094751, IEC 6094751, EN 6094751 |
| Coil Voltage | 110 V DC |
| Rated operational current at 415V | 4A (AC15) |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 4NO |
| Height(mm) | 58 |
| Width(mm) | 45 |
| Depth(mm) | 54.5 |
| Coil Operating band %Uc (Pick up) | 80 - 110 % |
| Mechanical Life | 10 million |
| Coil Operating band %Uc (Drop off) | 10 - 65 % |
| Pick up VA consumption | 2.8VA |
| Hold on VA consumption | 2.8VA |
