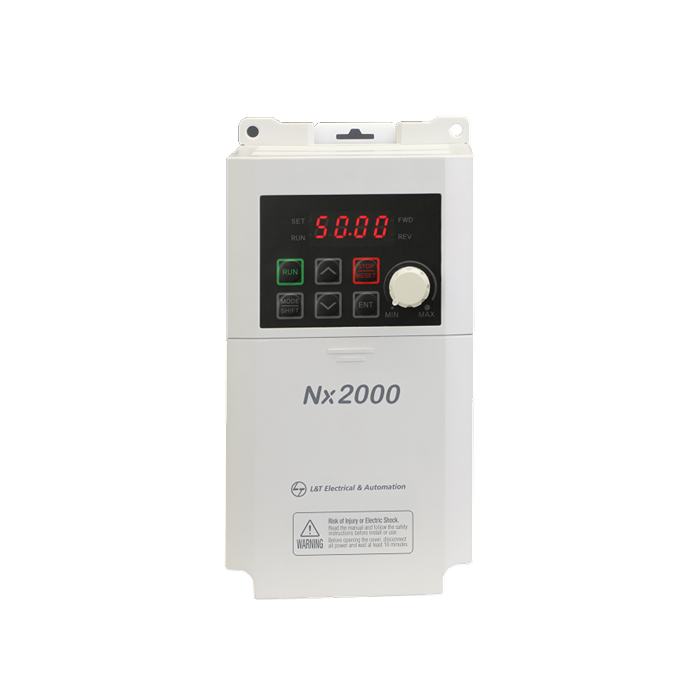

Nx2000 230V Single Phase Drive 0.40 kW (HD)
Nx2000 230V Single Phase Drive 0.40 kW (HD)
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
The Nx2000 series adds a new dimension to L&T Electrical & Automation (E&A)'s AC drive solutions. Built to E&A's stringent quality standards, the Nx2000 Series AC drive is tested and certified to meet global benchmarks, thus giving you the assurance of total reliability.
Range: 0.2kW to 2.2kW
Main Features:
- V/F, Slip Compensation
- DIN Rail mounting for Side-by-Side installation
- Built-in EMC filter class C2 to meet IEC 61800-3
- Built-in 2 Nos multi function relays
- Integrated Potentiometer
- Built-in PID
- Built-in Braking chopper for 1.5kW & 2.2kW
- Torque Boost for forward & reverse direction
- Built-in 24V power source
- RPM display on keypad
- Conformal coating complying to IEC 60721-3-3 class 3C3 (Avg)
- Built-in RS485 Modbus RTU Communication
Applications:
- OEM Machines
- Plastic & Textile Machines
- Food & Packaging Machines
- Conveyors
- AHU Control
- Fan
- Pump
- Compressor
- Escalator
- Press Machine
- Crane Control LT / CT
- Machine Tool
-
Rated Operational voltage (Ue)1Ph 200~240Vac
-
Operational Frequency (Hz)50 ~ 60 [Hz] (±5%)
-
IP ProtectionIP20
-
Height(mm)153
-
Width(mm)85
-
Depth(mm)123
