HVAC (heating, ventilation and air-conditioning systems) operate at the peak load, which happens only for a short period. To improve the energy efficiency of HVAC VFD is used. These electrical drives, including pumps, fans and compressors, are widely used in the sector. VFDs have proved to be effective in adjusting the speed of AC motors by changing their voltage and frequency.

calcActive())">

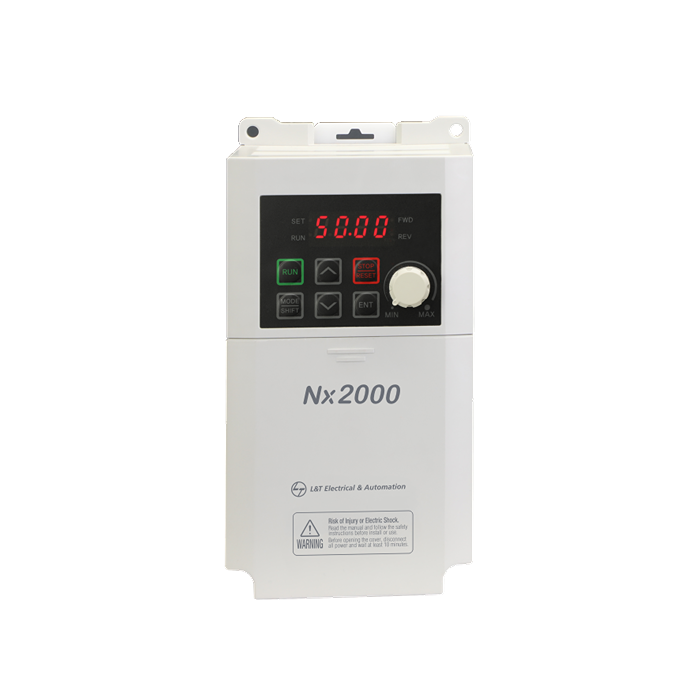

Nx2000 230V Single Phase Drive 0.75 kW (HD)
LTVF-N104P2BAA
₹21,000.00
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers

LTVF-N104P2BAA
Nx2000 230V Single Phase Drive 0.75 kW (HD)
Seller Name | Price | Delivery | Shipping Cost | |
---|---|---|---|---|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
Nx2000 230V Single Phase Drive 0.75 kW (HD)
₹21,000.00
Description
The Nx2000 series adds a new dimension to L&T Electrical & Automation (E&A)'s AC drive solutions. Built to E&A's stringent quality standards, the Nx2000 Series AC drive is tested and certified to meet global benchmarks, thus giving you the assurance of total reliability.
Range: 0.2kW to 2.2kW
Main Features:
V/F, Slip Compensation
DIN Rail mounting for Side-by-Side installation
Built-in EMC filter class C2 to meet IEC 61800-3
Built-in 2 Nos multi function relays
Integrated Potentiometer
Built-in PID
Built-in Braking chopper for 1.5kW & 2.2kW
Torque Boost for forward & reverse direction
Built-in 24V power source
RPM display on keypad
Conformal coating complying to IEC 60721-3-3 class 3C3 (Avg)
Built-in RS485 Modbus RTU Communication
Applications:
OEM Machines
Plastic & Textile Machines
Food & Packaging Machines
Conveyors
AHU Control
Fan
Pump
Compressor
Escalator
Press Machine
Crane Control LT / CT
Machine Tool
Product Details
Operational Frequency (Hz) | 50 ~ 60 [Hz] (±5%) |
---|---|
IP Protection | IP20 |
Rated Operational voltage (Ue) | 1Ph 200~240Vac |
Height(mm) | 153 |
Width(mm) | 85 |
Depth(mm) | 123 |
