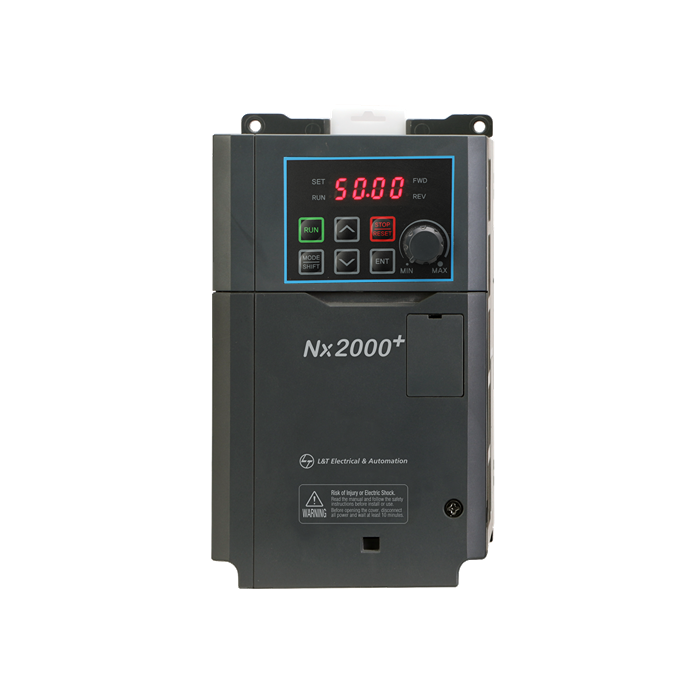

Nx2000+ 230V Three Phase 1.50kW(HD)/2.20kW(ND)

LTVF-N209P6BAA
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

Compact, lightweight, easy to install, operate and service - the Nx2000+ Series is perfectly suited for Conveyors, Pumps, Fans and Textile machinery. It handles load up to 11 kW and is engineered to keep your machine operating at optimum efficiency, even in the hot, humid and dusty conditions that characterise India's industrial environment. Range: 0.4kW to 11kW Main Features: V/F, Slip Compensation, Sensorless Vector DIN Rail mounting for Side-by-Side installation Built-in EMC filter class C3 to meet IEC 61800-3 Built-in 2 Nos multi function relays Integrated Potentiometer Built-in PID Built-in Braking chopper Torque Boost for forward & reverse direction Built-in 24V power source RPM display on keypad KEB for safety stop Auto tuning of Motor Conformal coating complying to IEC 60721-3-3 class 3C3 (Avg) Built-in RS485 Modbus RTU Communication Easy Cooling Fan Mainte nce Fieldbus Options: Ethernet IP, Modbus TCP, RAPIEnet, Profibus-DP, CANopen Applications: OEM Machines Plastic & Textile Machines Food & Packaging Machines Conveyors AHU Control Fan Pump Compressor Escalator Press Machine Crane Control LT / CT Machine Tool Wire Drawing

Product Details

Operational Frequency (Hz) 50 ~ 60 [Hz] (±5%)
IP Protection IP20
Heavy Duty Output (kW) 1.50kW
Normal Duty Output kW 2.20kW
Rated Output Current (HD) 8.0A
Rated Output Current (ND) 9.6A
Overloading Capacity (HD) 150% for 1 min
Overloading Capacity (ND) 120% for 1 min
Rated Operational voltage (Ue) 3Ph 200~240Vac
Ambient temperature (HD) -10°C to 50°C
Ambient Operating Temperature (ND) -10°C to 40°C
Braking Chopper Built-in
DC Reactor N/A
EMC Filter class Built-in - Class C3
Built-in Display 7 segment LED
Optional Display Detachable 7 segment LED
Type of Motor Asynchronous Motors
Conformance to IEC standards IEC 61800-5-1:2007 & IEC61800-3:2004
Internationals & Environemnt Compliances Conformance CE, UL, RoHS
PCB Environment Usage Standard Conformal coating complying to IEC 60721-3-3 class 3C3 (Avg)
Height(mm) 167
Width(mm) 101
Depth(mm) 150.5
