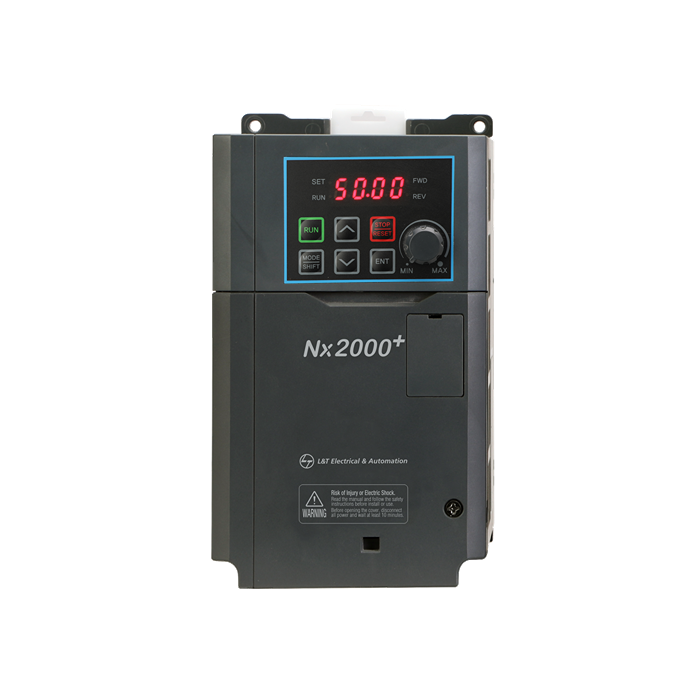

Nx2000+ 230V Three Phase 2.20kW(HD)/3.70kW(ND)
Share
In stock
SKU
LTVF-N212P0BAA
₹30,500.00
( Prices are all inclusive of taxes )Nx2000+ 230V Three Phase 2.20kW(HD)/3.70kW(ND)
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
CHECK DELIVERY TIME & COD AVAILABILITY
Compact, lightweight, easy to install, operate and service - the Nx2000+ Series is perfectly suited for Conveyors, Pumps, Fans and Textile machinery. It handles load up to 11 kW and is engineered to keep your machine operating at optimum efficiency, even in the hot, humid and dusty conditions that characterise India's industrial environment.
Range: 0.4kW to 11kW
Main Features:
V/F, Slip Compensation, Sensorless Vector
DIN Rail mounting for Side-by-Side installation
Built-in EMC filter class C3 to meet IEC 61800-3
Built-in 2 Nos multi function relays
Integrated Potentiometer
Built-in PID
Built-in Braking chopper
Torque Boost for forward & reverse direction
Built-in 24V power source
RPM display on keypad
KEB for safety stop
Auto tuning of Motor
Conformal coating complying to IEC 60721-3-3 class 3C3 (Avg)
Built-in RS485 Modbus RTU Communication
Easy Cooling Fan Mainte nce
Fieldbus Options: Ethernet IP, Modbus TCP, RAPIEnet, Profibus-DP, CANopen
Applications:
OEM Machines
Plastic & Textile Machines
Food & Packaging Machines
Conveyors
AHU Control
Fan
Pump
Compressor
Escalator
Press Machine
Crane Control LT / CT
Machine Tool
Wire Drawing
-
Rated Operational voltage (Ue)3Ph 200~240Vac
-
Operational Frequency (Hz)50 ~ 60 [Hz] (±5%)
-
Heavy Duty Output (kW)2.20kW
-
Normal Duty Output kW3.70kW
-
Rated Output Current (HD)11.0A
-
Rated Output Current (ND)12.0A
-
Overloading Capacity (HD)150% for 1 min
-
Overloading Capacity (ND)120% for 1 min
-
Ambient temperature (HD)-10°C to 50°C
-
Ambient Operating Temperature (ND)-10°C to 40°C
-
Braking ChopperBuilt-in
-
EMC Filter classBuilt-in - Class C3
-
Built-in Display7 segment LED
-
Optional DisplayDetachable 7 segment LED
-
IP ProtectionIP20
-
Type of MotorAsynchronous Motors
-
Conformance to IEC standardsIEC 61800-5-1:2007 & IEC61800-3:2004
-
Internationals & Environemnt Compliances ConformanceCE, UL, RoHS
-
PCB Environment Usage StandardConformal coating complying to IEC 60721-3-3 class 3C3 (Avg)
-
Height(mm)167
-
Width(mm)101
-
Depth(mm)150.5
