An integral electrical part that manages and controls the power sent to motors in different devices is a motor driver.

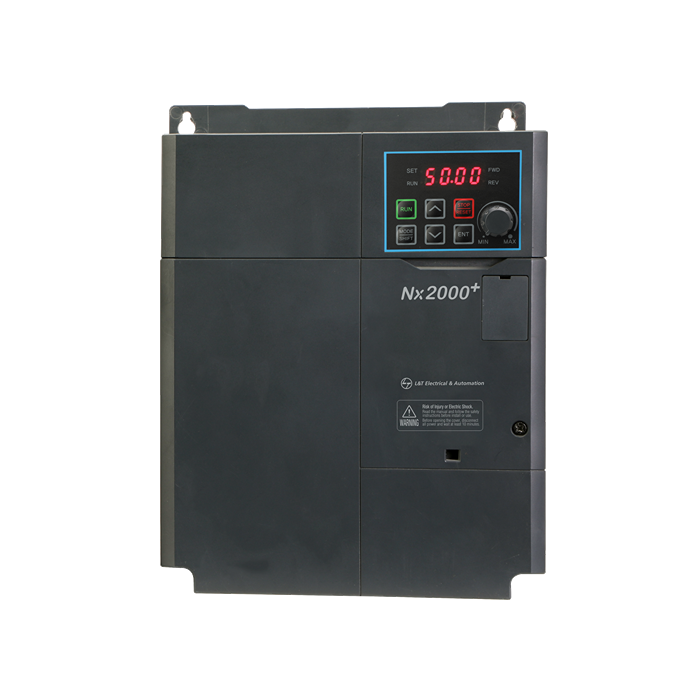

Nx2000+ 230V Three Phase 7.50kW(HD)/11.0kW(ND)
LTVF-N240P0BAA
₹66,500.00
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
LTVF-N240P0BAA
Nx2000+ 230V Three Phase 7.50kW(HD)/11.0kW(ND)
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
Nx2000+ 230V Three Phase 7.50kW(HD)/11.0kW(ND)
₹66,500.00
Description
Compact, lightweight, easy to install, operate and service - the Nx2000+ Series is perfectly suited for Conveyors, Pumps, Fans and Textile machinery. It handles load up to 11 kW and is engineered to keep your machine operating at optimum efficiency, even in the hot, humid and dusty conditions that characterise India's industrial environment.
Range: 0.4kW to 11kW
Main Features:
V/F, Slip Compensation, Sensorless Vector
DIN Rail mounting for Side-by-Side installation
Built-in EMC filter class C3 to meet IEC 61800-3
Built-in 2 Nos multi function relays
Integrated Potentiometer
Built-in PID
Built-in Braking chopper
Torque Boost for forward & reverse direction
Built-in 24V power source
RPM display on keypad
KEB for safety stop
Auto tuning of Motor
Conformal coating complying to IEC 60721-3-3 class 3C3 (Avg)
Built-in RS485 Modbus RTU Communication
Easy Cooling Fan Mainte nce
Fieldbus Options: Ethernet IP, Modbus TCP, RAPIEnet, Profibus-DP, CANopen
Applications:
OEM Machines
Plastic & Textile Machines
Food & Packaging Machines
Conveyors
AHU Control
Fan
Pump
Compressor
Escalator
Press Machine
Crane Control LT / CT
Machine Tool
Wire Drawing
Product Details
| Operational Frequency (Hz) | 50 ~ 60 [Hz] (±5%) |
|---|---|
| IP Protection | IP20 |
| Heavy Duty Output (kW) | 7.50kW |
| Normal Duty Output kW | 11.0kW |
| Rated Output Current (HD) | 32.0A |
| Rated Output Current (ND) | 40.0A |
| Overloading Capacity (HD) | 150% for 1 min |
| Overloading Capacity (ND) | 120% for 1 min |
| Rated Operational voltage (Ue) | 3Ph 200~240Vac |
| Ambient temperature (HD) | -10°C to 50°C |
| Ambient Operating Temperature (ND) | -10°C to 40°C |
| Braking Chopper | Built-in |
| DC Reactor | N/A |
| EMC Filter class | Built-in - Class C3 |
| Built-in Display | 7 segment LED |
| Optional Display | Detachable 7 segment LED |
| Type of Motor | Asynchronous Motors |
| Conformance to IEC standards | IEC 61800-5-1:2007 & IEC61800-3:2004 |
| Internationals & Environemnt Compliances Conformance | CE, UL, RoHS |
| PCB Environment Usage Standard | Conformal coating complying to IEC 60721-3-3 class 3C3 (Avg) |
| Height(mm) | 220 |
| Width(mm) | 180 |
| Depth(mm) | 144 |
