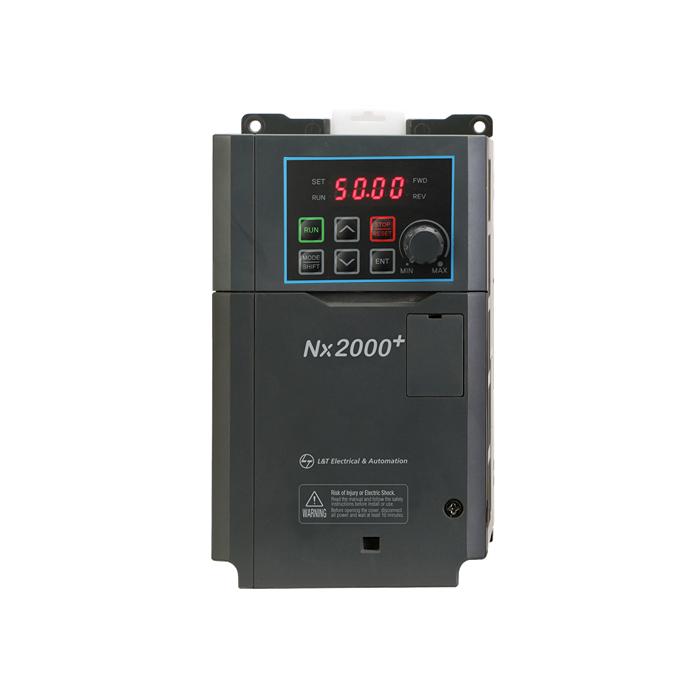

Nx2000+ 415V Three Phase Drive 2.20kW(HD)/3.70kW(ND)
Nx2000+ 415V Three Phase Drive 2.20kW(HD)/3.70kW(ND)
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
Compact, lightweight, easy to install, operate and service - the Nx2000+ Series is perfectly suited for Conveyors, Pumps, Fans and Textile machinery. It handles load up to 11 kW and is engineered to keep your machine operating at optimum efficiency, even in the hot, humid and dusty conditions that characterise India's industrial environment.
Range: 0.4kW to 11kW
Main Features:
- V/F, Slip Compensation, Sensorless Vector
- DIN Rail mounting for Side-by-Side installation
- Built-in EMC filter class C3 to meet IEC 61800-3
- Built-in 2 Nos multi function relays
- Integrated Potentiometer
- Built-in PID
- Built-in Braking chopper
- Torque Boost for forward & reverse direction
- Built-in 24V power source
- RPM display on keypad
- KEB for safety stop
- Auto tuning of Motor
- Conformal coating complying to IEC 60721-3-3 class 3C3 (Avg)
- Built-in RS485 Modbus RTU Communication
- Easy Cooling Fan Mainte nce
- Fieldbus Options: Ethernet IP, Modbus TCP, RAPIEnet, Profibus-DP, CANopen
Applications:
- OEM Machines
- Plastic & Textile Machines
- Food & Packaging Machines
- Conveyors
- AHU Control
- Fan
- Pump
- Compressor
- Escalator
- Press Machine
- Crane Control LT / CT
- Machine Tool
- Wire Drawing
-
Rated Operational voltage (Ue)3P 380-480 Vac
-
Operational Frequency (Hz)50 ~ 60 [Hz] (±5%)
-
Heavy Duty Output (kW)2.20kW
-
Normal Duty Output kW3.70kW
-
Rated Output Current (HD)5.5A
-
Rated Output Current (ND)6.9A
-
Overloading Capacity (HD)150% for 1 min
-
Overloading Capacity (ND)120% for 1 min
-
Ambient temperature (HD)-10°C to 50°C
-
Ambient Operating Temperature (ND)-10°C to 40°C
-
Braking ChopperBuilt-in
-
EMC Filter classBuilt-in - Class C3
-
Built-in Display7 segment LED
-
Optional DisplayDetachable 7 segment LED
-
IP ProtectionIP20
-
Type of MotorAsynchronous Motors
-
Conformance to IEC standardsIEC 61800-5-1:2007 & IEC61800-3:2004
-
Internationals & Environemnt Compliances ConformanceCE, UL, RoHS
-
PCB Environment Usage StandardConformal coating complying to IEC 60721-3-3 class 3C3 (Avg)
-
Height(mm)167
-
Width(mm)101
-
Depth(mm)150.5
