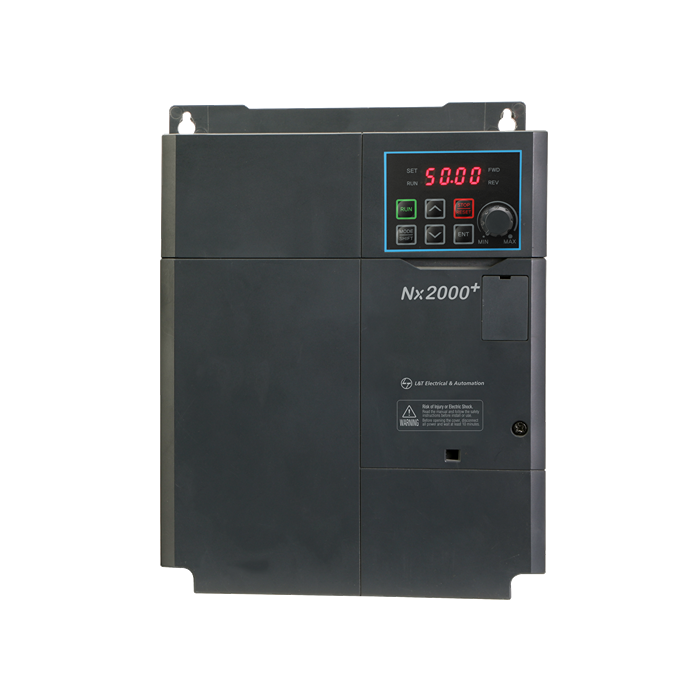

Nx2000+ 415V Three Phase Drive 7.50kW(HD)/11.0kW(ND)

In stock
SKU
LTVF-N423P0BAA
₹60,000.00
( Prices are all inclusive of taxes )

Nx2000+ 415V Three Phase Drive 7.50kW(HD)/11.0kW(ND)

The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.

Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.

CHECK DELIVERY TIME & COD AVAILABILITY

Compact, lightweight, easy to install, operate and service - the Nx2000+ Series is perfectly suited for Conveyors, Pumps, Fans and Textile machinery. It handles load up to 11 kW and is engineered to keep your machine operating at optimum efficiency, even in the hot, humid and dusty conditions that characterise India's industrial environment.

Range: 0.4kW to 11kW

Main Features:

  • V/F, Slip Compensation, Sensorless Vector
  • DIN Rail mounting for Side-by-Side installation
  • Built-in EMC filter class C3 to meet IEC 61800-3
  • Built-in 2 Nos multi function relays
  • Integrated Potentiometer
  • Built-in PID
  • Built-in Braking chopper
  • Torque Boost for forward & reverse direction
  • Built-in 24V power source
  • RPM display on keypad
  • KEB for safety stop
  • Auto tuning of Motor
  • Conformal coating complying to IEC 60721-3-3 class 3C3 (Avg)
  • Built-in RS485 Modbus RTU Communication
  • Easy Cooling Fan Mainte nce
  • Fieldbus Options: Ethernet IP, Modbus TCP, RAPIEnet, Profibus-DP, CANopen

Applications:

  • OEM Machines
  • Plastic & Textile Machines
  • Food & Packaging Machines
  • Conveyors
  • AHU Control
  • Fan
  • Pump
  • Compressor
  • Escalator
  • Press Machine
  • Crane Control LT / CT
  • Machine Tool
  • Wire Drawing
  • Rated Operational voltage (Ue)
    3P 380-480 Vac
  • Operational Frequency (Hz)
    50 ~ 60 [Hz] (±5%)
  • Heavy Duty Output (kW)
    7.50kW
  • Normal Duty Output kW
    11.0kW
  • Rated Output Current (HD)
    16.0A
  • Rated Output Current (ND)
    23.0A
  • Overloading Capacity (HD)
    150% for 1 min
  • Overloading Capacity (ND)
    120% for 1 min
  • Ambient temperature (HD)
    -10°C to 50°C
  • Ambient Operating Temperature (ND)
    -10°C to 40°C
  • Braking Chopper
    Built-in
  • EMC Filter class
    Built-in - Class C3
  • Built-in Display
    7 segment LED
  • Optional Display
    Detachable 7 segment LED
  • IP Protection
    IP20
  • Type of Motor
    Asynchronous Motors
  • Conformance to IEC standards
    IEC 61800-5-1:2007 & IEC61800-3:2004
  • Internationals & Environemnt Compliances Conformance
    CE, UL, RoHS
  • PCB Environment Usage Standard
    Conformal coating complying to IEC 60721-3-3 class 3C3 (Avg)
  • Height(mm)
    220
  • Width(mm)
    180
  • Depth(mm)
    144
