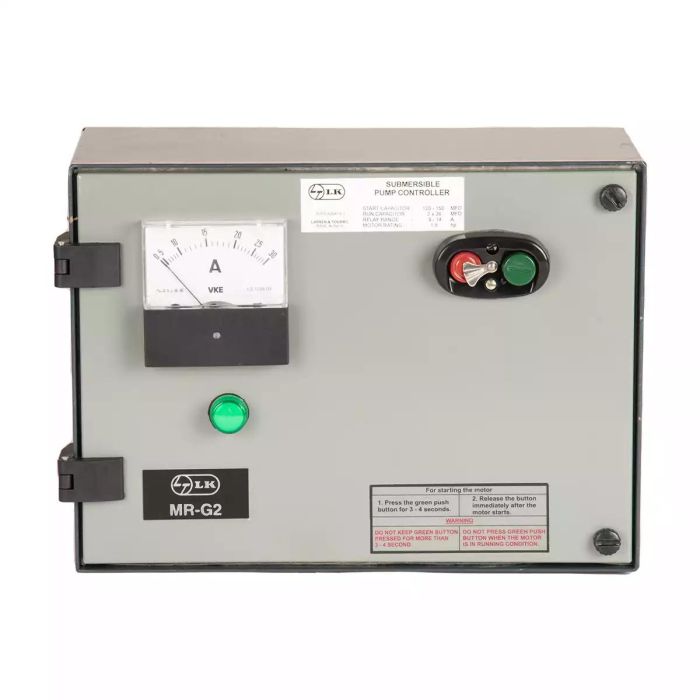

Lauritz Knudsen MR-G2 Single Phase Submersible Pump Controllers of 1.5 HP, Start Capacitor 120/150, Run Capacitor 2X36 MFD | Relay Range 9-14A | with MU-2P Contactor & MU-2P Relay
SKU :
SS96989BCAF
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
SS96989BCAF
Lauritz Knudsen MR-G2 Single Phase Submersible Pump Controllers of 1.5 HP, Start Capacitor 120/150, Run Capacitor 2X36 MFD | Relay Range 9-14A | with MU-2P Contactor & MU-2P Relay
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹6,490.00
₹4,592.56
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Estimated delivery:
Out of stock
Disclaimer:
Following the brand transition from L&T Switchgear to Lauritz Knudsen effective 29 May 2024, products supplied by sellers may carry either the L&T or Lauritz Knudsen brand name depending on stock availability.
Show More
Lauritz Knudsen MR-G2 Single Phase Submersible Pump Controllers of 1.5 HP, Start Capacitor 120/150, Run Capacitor 2X36 MFD | Relay Range 9-14A | with MU-2P Contactor & MU-2P Relay
₹6,490.00
₹4,592.56
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
1. Starts, stops & protects your single-phase submersible pump
2. Rugged MU-2P contactor with wide band voltage
3. (140V to 264V) suitable for low voltage
4. Fitted with MU-2P Relay for reliable overload protection
5. Available with heavy duty START & RUN condensers
6. Controller provided with unique combination of dual Volt-Ammeter
Applications:
1. Reliable protection for 1-Phase submersible pumps
2. Up to 5 HP for domestic & agricultural purpose
3. Suitable for water cooled submersible pumps
Overview
| With Ammeter only / Ammeter and Voltmeter | With Ammeter Only |
|---|---|
| Conformity to Standard | IS/IEC 60947-4-1 |
| Contactor Electrical Life - AC3 | 1 Million Operations |
| Discount Percentage | Between 0-10 % |
| Mechanical Life | 5 Million Operations |
| Service temperature | -5˚C to 55˚C |
| type | MR-G2 |
| Rated Impulse Withstand Voltage | 6kV |
| Rated Insulation Voltage | 660V |
| With/ Without WLC | Without WLC |
| Run Capacitor | 2X36 |
| Start Capacitor | 120/150 |
| HP | 1.5HP |
| Length(mm) | 357 |
| Breadth(mm) | 145.8 |
| Height(mm) | 230 |
| Relay Range (A) | 9 - 14A |
