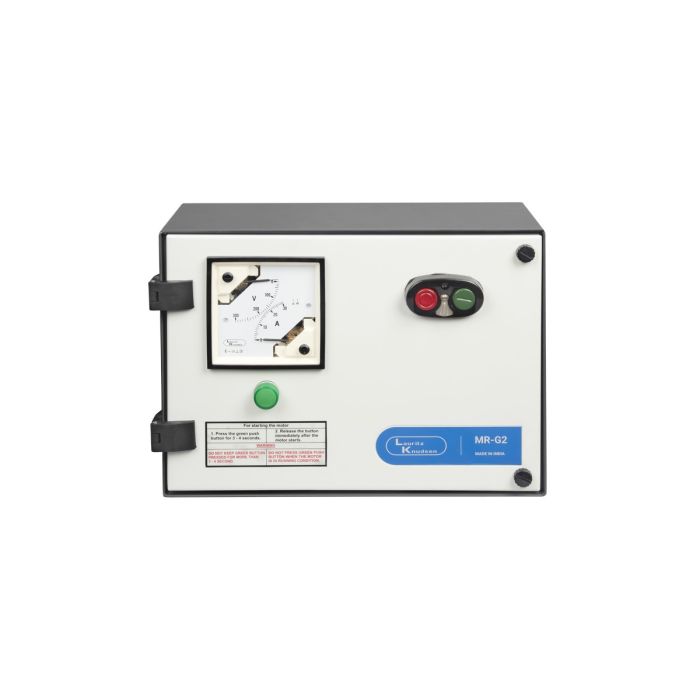

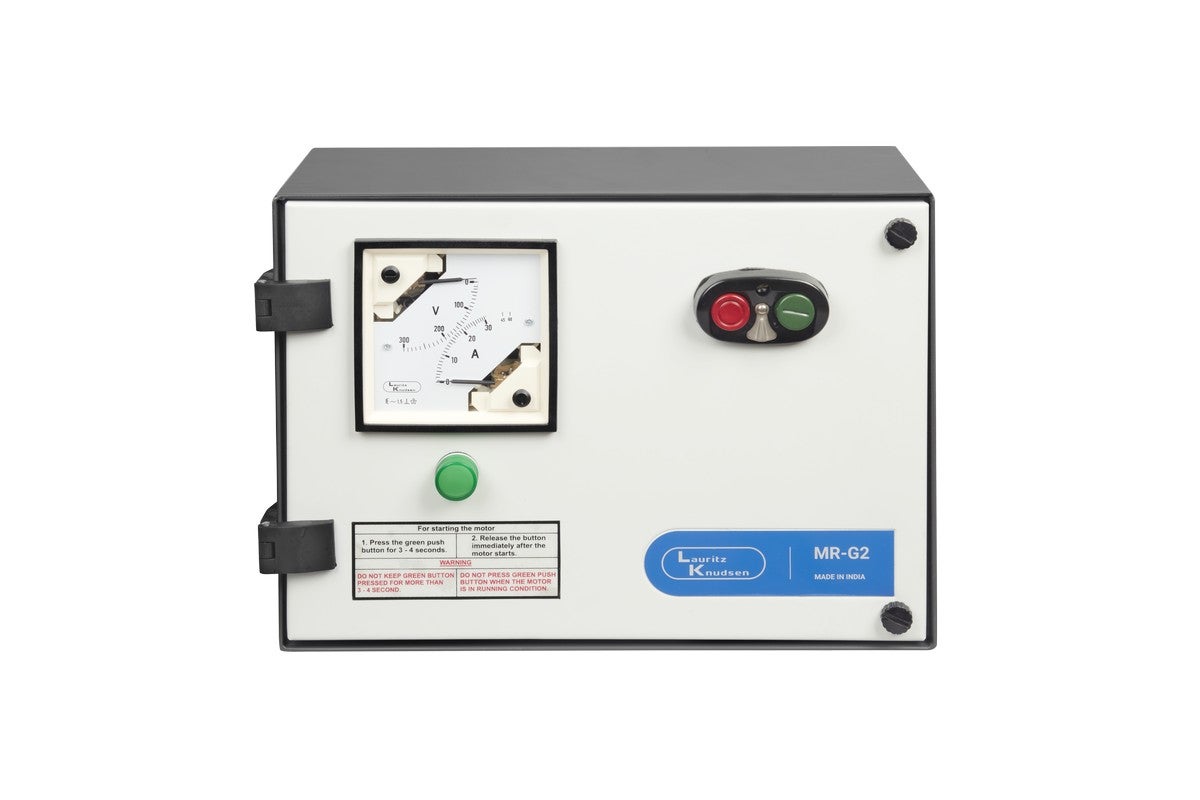

Lauritz Knudsen MR-G2 Single Phase Submersible Pump Controllers of 2 HP, Start Capacitor 200/250, Run Capacitor 1 x 72MFD) | Relay Range 11-18A | with MU-2P Contactor & MU-2P Relay
SKU :
SS96990BECJ
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
SS96990BECJ
Lauritz Knudsen MR-G2 Single Phase Submersible Pump Controllers of 2 HP, Start Capacitor 200/250, Run Capacitor 1 x 72MFD) | Relay Range 11-18A | with MU-2P Contactor & MU-2P Relay
Further Offers for this product:
No sellers found for this product.
₹5,980.00
₹4,790.80
Incl. Tax
To View the best prices please Log In / Register
Shipping:
Out of stock
Lauritz Knudsen MR-G2 Single Phase Submersible Pump Controllers of 2 HP, Start Capacitor 200/250, Run Capacitor 1 x 72MFD) | Relay Range 11-18A | with MU-2P Contactor & MU-2P Relay
₹5,980.00
₹4,790.80
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
1. Starts, stops & protects your single-phase submersible pump
2. Rugged MU-2P contactor with wide band voltage
3. (140V to 264V) suitable for low voltage
4. Fitted with MU-2P Relay for reliable overload protection
5. Available with heavy duty START & RUN condensers
6. Controller provided with unique combination of dual Volt-Ammeter
Applications:
1. Reliable protection for 1-Phase submersible pumps
2. Up to 5 HP for domestic & agricultural purpose
3. Suitable for water cooled submersible pumps
Overview
| With Ammeter only / Ammeter and Voltmeter | With Ammeter Only |
|---|---|
| Conformity to Standard | IS/IEC 60947-4-1 |
| Contactor Electrical Life - AC3 | 1 Million Operations |
| Discount Percentage | Between 0-10 % |
| Mechanical Life | 5 Million Operations |
| Service temperature | -5˚C to 55˚C |
| type | MR-G2 |
| Rated Impulse Withstand Voltage | 6kV |
| Rated Insulation Voltage | 660V |
| With/ Without WLC | Without WLC |
| Run Capacitor | 1X72 |
| Start Capacitor | 200/250 |
| HP | 2HP |
| Length(mm) | 357 |
| Breadth(mm) | 145.8 |
| Height(mm) | 230 |
| Relay Range (A) | 11 - 18A |
Documents
Warranty
All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
View All
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
