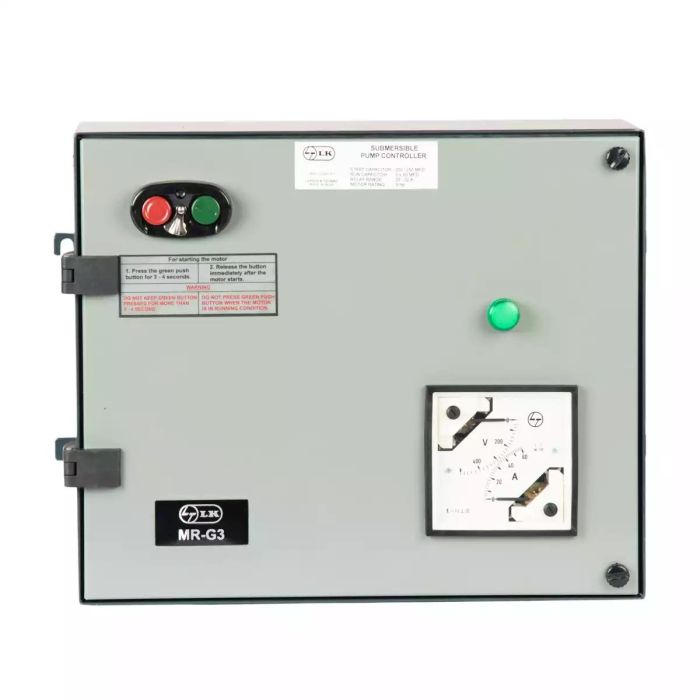

Single Phase Controller for Submersible Pump Application,MR-G3,5 HP,200 / 250mfd,3 x 50mfd
In stock
SKU
CS90490BEEJ
₹9,025.00
( Prices are all inclusive of taxes )Single Phase Controller for Submersible Pump Application,MR-G3,5 HP,200 / 250mfd,3 x 50mfd
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
CHECK DELIVERY TIME & COD AVAILABILITY
MR-G Controller:
1. Starts, stops & protects your single-phase submersible pump
2. Rugged MU-2P contactor with wide band voltage
3. (140V to 264V) suitable for low voltage
4. Fitted with MU-2P Relay for reliable overload protection
5. Available with heavy duty START & RUN condensers
6. Controller provided with unique combination of dual Volt-Ammeter
Applications:
1. Reliable protection for 1-Phase submersible pumps
2. Up to 5 HP for domestic & agricultural purpose
3. Suitable for water cooled submersible pumps
1. Starts, stops & protects your single-phase submersible pump
2. Rugged MU-2P contactor with wide band voltage
3. (140V to 264V) suitable for low voltage
4. Fitted with MU-2P Relay for reliable overload protection
5. Available with heavy duty START & RUN condensers
6. Controller provided with unique combination of dual Volt-Ammeter
Applications:
1. Reliable protection for 1-Phase submersible pumps
2. Up to 5 HP for domestic & agricultural purpose
3. Suitable for water cooled submersible pumps
-
Conformity to StandardIS/IEC 60947-4-1
-
Contactor Electrical Life - AC31 Million Operations
-
Discount PercentageBetween 0-10 %
-
Mechanical Life5 Million Operations
-
Service temperature-5˚C to 55˚C
-
typeMR-G3
-
Rated Impulse Withstand Voltage6kV
-
Rated Insulation Voltage660V
-
With/ Without WLCWithout WLC
-
Run Capacitor3X50
-
Start Capacitor200/250
-
HP5 HP
-
Length(mm)398
-
Breadth(mm)145.7
-
Height(mm)300
-
Relay Range (A)20 - 32A
