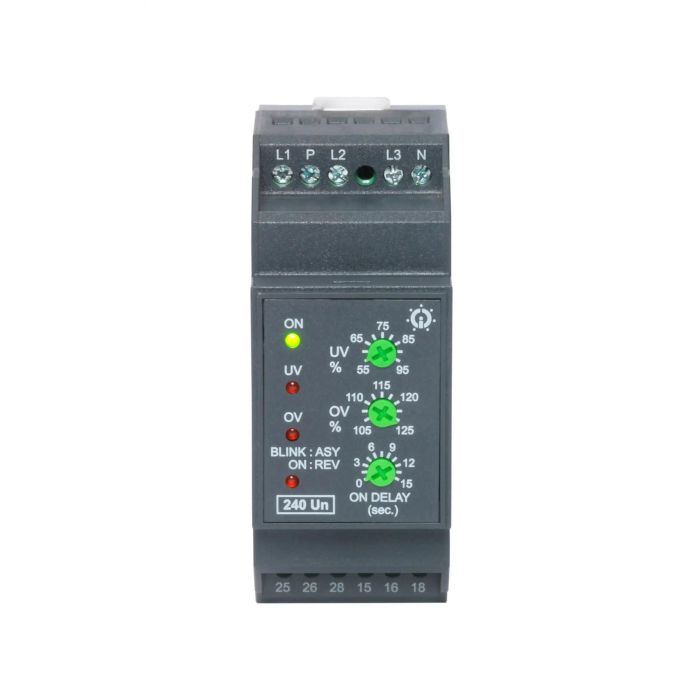

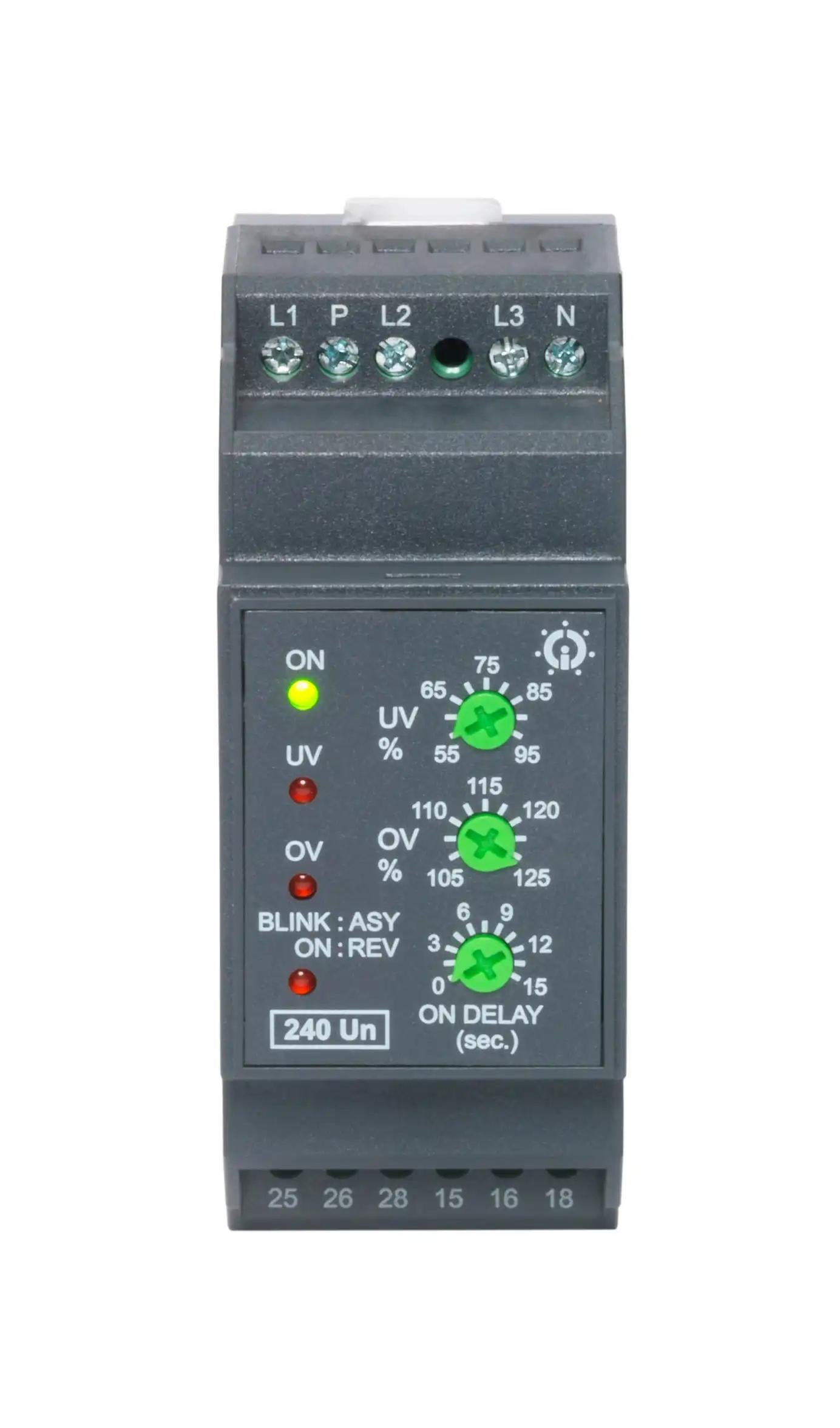

SPP + OV/OV with Neutral loss protection
Share
In stock
SKU
MAC04D0100
Regular Price
₹2,000.00
Price
₹2,000.00
21% Off
( Prices are all inclusive of taxes )SPP + OV/OV with Neutral loss protection
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
CHECK DELIVERY TIME & COD AVAILABILITY
Monitoring Relay is a protective control device which is used to receive input voltage signals. It monitors the voltage signals and raises an output in case threshold is reached. Features Protects against Phase Loss, Phase Sequence & Asymmetry
Can be configured for Single & Three phase
Available with options of selectable UV/OV & selectable ON/OFF delay
LED Indications for Power & Fault conditions
1 C/O & 2 C/O Configuration
Supply Voltage: 240 VAC (1 Phase / 3 Phase, 4 Wire) and 415V, (3phase/4 wire with neutral loss protection) Application: MCC Panels/Process automation panels
-
Rated operational voltage (Ue)415 VAC
-
Conformance to IEC standardsIEC-60947-5-1
-
Internationals & Environemnt Compliances ConformanceCE, & RoHS
-
IP rating65
-
time rangeON Delay 5 sec and OFF Delay 5 sec,500ms-1s for Neutral fail
-
no of contacts2
-
Phase Symmetry94 VAC Asymmetry
-
Type of Sysytem (phases)3Ph, 4W
-
Type Of MountingDin Mounting
-
TypeSingle Phasing Preventor + Selectable Under Voltage + Selectable Over Voltage with neutral loss protection
