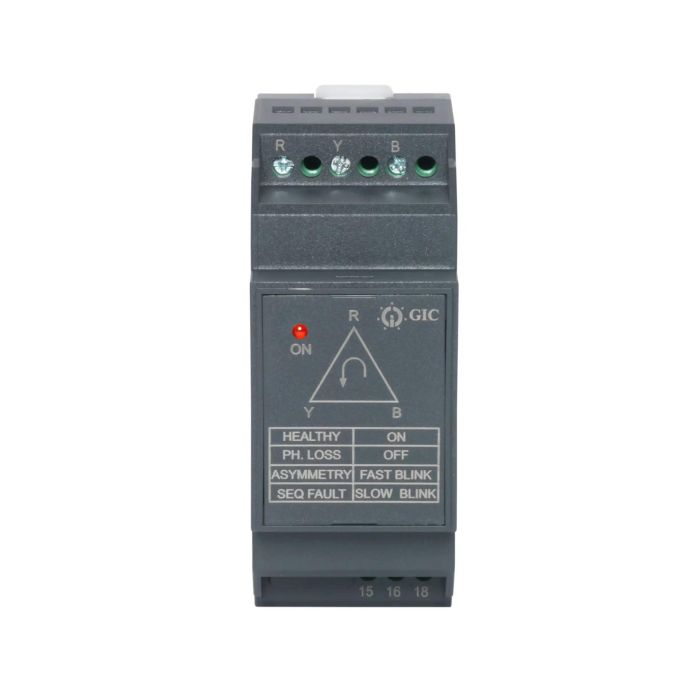

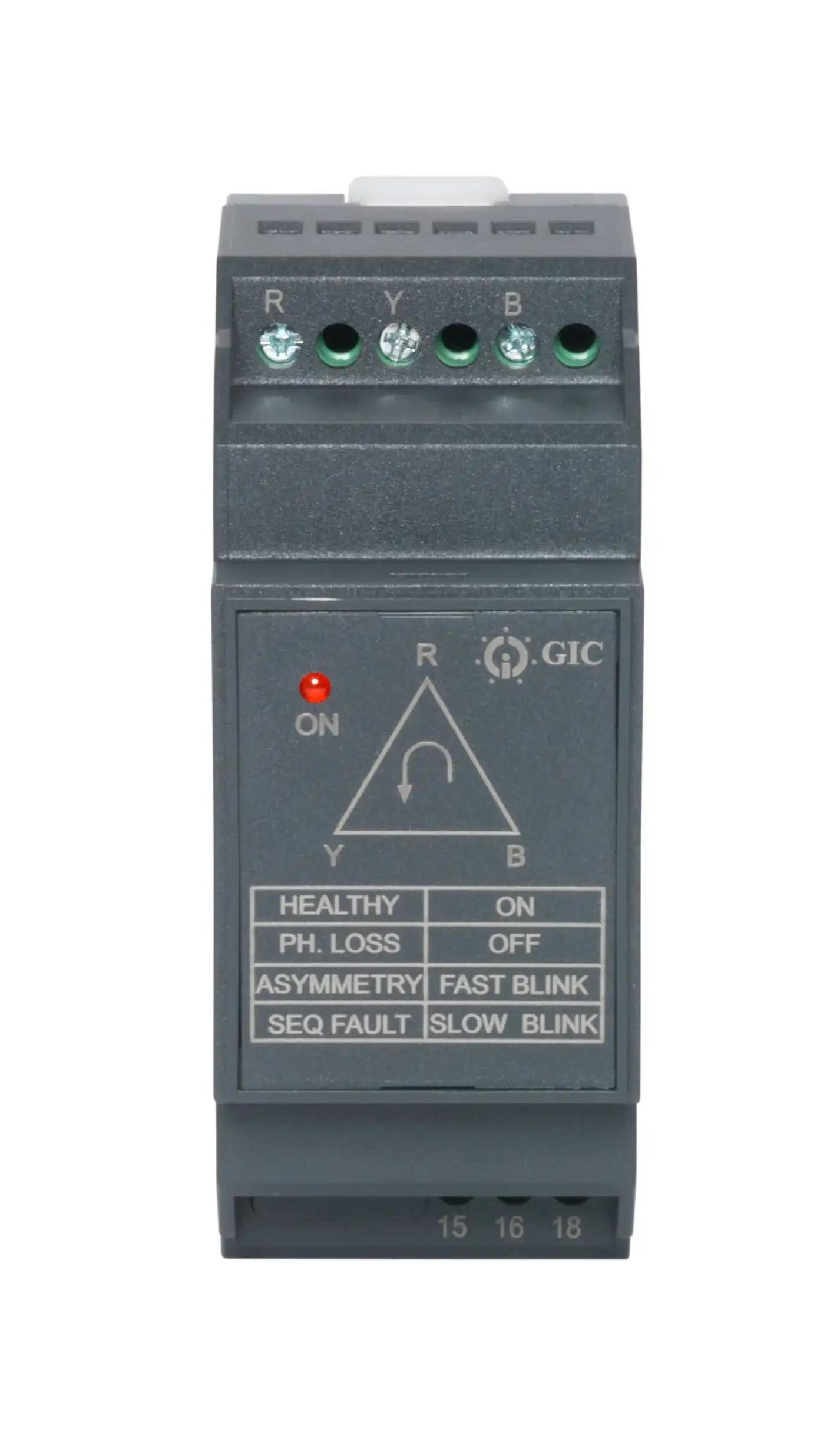

SPP SERIES SM 301 3 PH 415 VAC
MA51BC
₹1,065.00
₹754.02
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
MA51BC
SPP SERIES SM 301 3 PH 415 VAC
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
SPP SERIES SM 301 3 PH 415 VAC
₹1,065.00
₹754.02
Description
Monitoring Relay is a protective control device which is used to receive input voltage signals. It monitors the voltage signals and raises an output in case threshold is reached. Features Protects against Phase Loss, Phase Sequence & Asymmetry
1 C/O & 2 C/O Configuration
Supply Voltage: 415 VAC (3 Phase, 3 Wire)
In built on delay of 2sec & OFF delay of 7 sec
Auxiliary Supply not needed
Designed for Industrial & Agricultural Applications
Product Details
| Rated operational voltage (Ue) | 415 VAC |
|---|---|
| Conformance to IEC standards | IEC-60947-5-1 |
| Internationals & Environemnt Compliances Conformance | CE, & RoHS |
| IP rating | 65 |
| time range | ON Delay 2 sec and OFF Delay 7 sec |
| no of contacts | 1 |
| Phase Symmetry | 65 VAC Asymmetry |
| Type of Sysytem (phases) | 3Ph, 3W |
| Type Of Mounting | Din Mounting |
| Type | Single phasing Preventor(SPP) Fail safe Type |
