PFC (Power Factor Correction) is an important mechanism used in power electronics to improve the performance and overall effectiveness of electrical systems. PFC uses a variety of techniques to improve the power factor coefficient of electric circuits. As a result, energy is used more efficiently, and less waste is produced. Recognising the role of PFC is the most important factor in the smooth operation and durability of electrical infrastructure. In this blog, we will explain what power factor correction is in electrical engineering and why it is essential.
Standard Duty with MCB & LED Box Capacitor 7.5 kVAr 440 VAC
LTBCM307B2
₹4,355.00
₹2,261.12
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
LTBCM307B2
Standard Duty with MCB & LED Box Capacitor 7.5 kVAr 440 VAC
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock

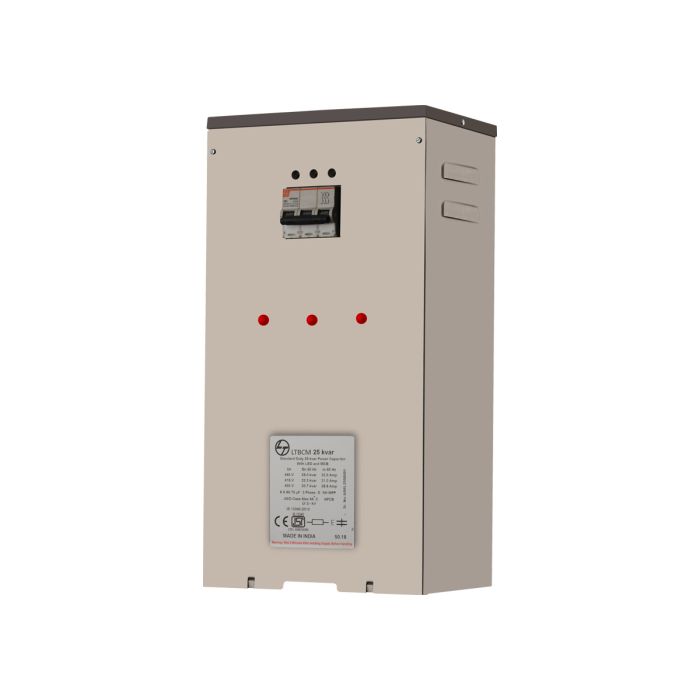

Standard Duty with MCB & LED Box Capacitor 7.5 kVAr 440 VAC
₹4,355.00
₹2,261.12
Description
- Standard Duty Capacitors with inbuilt MCB & LED are designed with Metallized Polypropylene technology.
- These capacitors are specially designed for industries where fixed compensation using Box type capacitors is preferred.
- Instead of procuring capacitor, protection device & enclosure separately, these capacitors provide complete 3-in-1solution.
Product Details
| Over Voltage Withstand Ability | 10% (8h/24h), 15% (30m/24h), 20% (5m/24h), 30% (1m/24h) |
|---|---|
| Peak Inrush Current Withstand Ability | 200 × In |
| Extended 1yr warranty | No |
| Length(mm) | 220 |
| Height(mm) | 430 |
| Breadth(mm) | 75 |
| Total Operating Losses | 0.45 Watts / kVAr |
| Over Current Withstand Ability | 1.5 × In |
| Switching Operation Cycles Per Year | 5000 |
| Operating Life Under Standard Conditions | 100000 hours |
| Ambient Temperature Range | -25 ˚C to 55 ˚C |
| Discount Percentage | Between 0-10 % |
