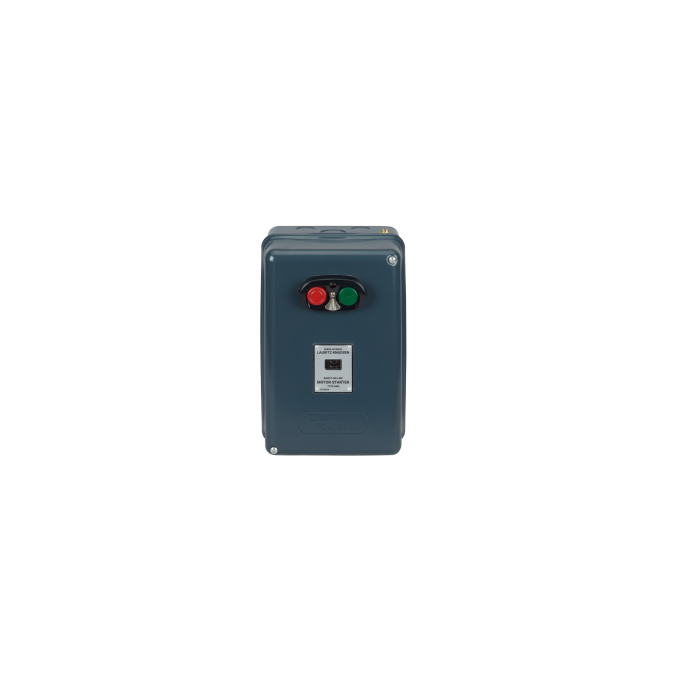

Lauritz Knudsen MK1 DOL, Starter - 4 HP | Relay Range 4-6.5A | Coil Voltage 400/440V AC
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen MK1 DOL, Starter - 4 HP | Relay Range 4-6.5A | Coil Voltage 400/440V AC
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Three Phase Direct-On-Line Starter is a motor control & protection device designed for starting & operating three phase induction motors using full-voltage starting.
It provides a simple & dependable method of motor control by directly connecting the motor to the power supply during startup. This makes it suitable for pumps, compressors, fans, blowers, conveyors, & various industrial applications requiring efficient motor operation & protection.
How the DOL Starter Works
This starter provides direct motor starting & protection functions:
• Connects the motor directly to the power supply
• Applies full line voltage during startup
• Enables rapid motor acceleration
• Supports reliable operation under normal load conditions
• Helps protect the motor from overload-related issues
DOL starters are widely used in applications where motors can safely withstand full-voltage starting current.
Electrical Configuration
• Phase: Three Phase
• Starter Type: Direct-On-Line (DOL) Starter
• Application: Three Phase Motor Control
• Function: Full-Voltage Motor Starting & Protection
• System Compatibility: Low Voltage Three Phase Systems
• Usage: Industrial, Commercial, & Pumping Applications
Construction & Design
The starter is engineered for dependable performance in demanding environments:
• Integrated motor starting & protection components
• Robust enclosure suitable for panel mounting
• Designed for continuous & stable operation
• Optimized internal electrical arrangement
• Suitable for industrial & commercial installations
Safety & Protection
• Protects motors against overload conditions
• Supports safe motor starting operations
• Helps improve motor reliability & service life
• Provides dependable switching performance
• Reduces the risk of equipment downtime
Mounting & Durability
• Suitable for panel mounting installations
• Designed for motor control panels & switchboards
• Durable construction for industrial environments
• Resistant to typical operating conditions
• Designed for long service life
Application Domains
• Industrial motor control systems
• Water pumping applications
• Compressors & air handling systems
• Fans & blowers
• Manufacturing machinery
• Material handling equipment
Key Features
• Three phase direct-on-line starter
• Full-voltage motor starting capability
• Integrated motor protection functionality
• Reliable switching performance
• Suitable for industrial & commercial applications
• Durable construction for long-term operation
• Easy installation & maintenance
Applications
• Water pumping systems
• Industrial machinery
• Air compressors
• Ventilation & blower systems
• Manufacturing plants
• Motor control panels
FAQs
1. What is a DOL starter used for?
Ans: A DOL starter is used to start three phase motors by directly applying full supply voltage to the motor.
2. What does DOL stand for?
Ans: DOL stands for Direct-On-Line, meaning the motor is connected directly to the power supply during startup.
3. Where are DOL starters commonly used?
Ans: They are used in pumps, compressors, fans, blowers, conveyors, & industrial machinery.
4. Does the starter provide motor protection?
Ans: Yes, it provides protection against overload conditions & helps ensure safe motor operation.
5. Is it suitable for industrial applications?
Ans: Yes, it is widely used in industrial & commercial motor control systems.
6. Why choose a DOL starter?
Ans: It offers a simple, reliable, & cost-effective solution for motor starting applications.
7. Can it be installed in motor control panels?
Ans: Yes, it is designed for integration into motor control panels & electrical systems.
Overview
| DOL/SASD/ FASD | DOL |
|---|---|
| Conformity to Standard | IS/IEC 60947-4-1 |
| Contactor Electrical Life - AC3 | 1 Million Operations |
| Discount Percentage | Between 0-10 % |
| Mechanical Life | 10 Million Operations |
| type | MK1 DOL |
| Rated Insulation Voltage | 690V |
| HP | 4 HP |
| Length(mm) | 141 |
| Breadth(mm) | 115 |
| Height(mm) | 221 |
| Relay Range (A) | 4 - 6.5A |
