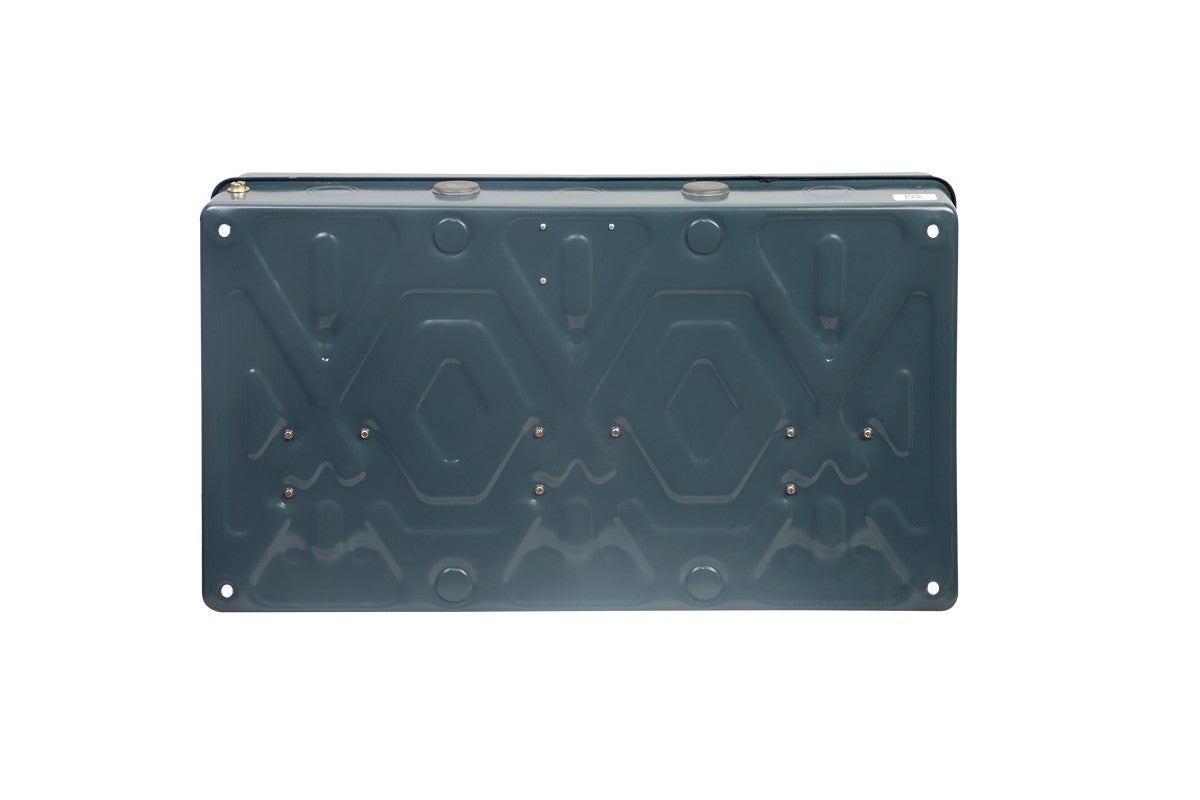

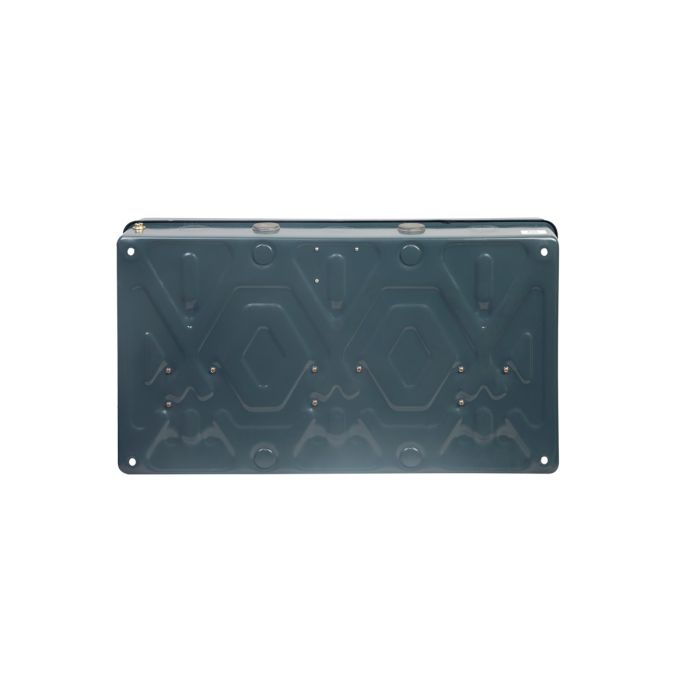

Three Phase Direct On Line Starter,MK2 DOL,7.5 HP (CS90947SOEO)
CS90947SOEO
₹3,440.00
₹2,841.44
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
CS90947SOEO
Three Phase Direct On Line Starter,MK2 DOL,7.5 HP (CS90947SOEO)
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
Three Phase Direct On Line Starter,MK2 DOL,7.5 HP (CS90947SOEO)
₹3,440.00
₹2,841.44
Description
MK1 with Relay ranges up to 13-22 A relay
MK2 with 20-32A Relay range for higher current application
New MK2 Contactor (AC3-25A)
Features:
1. 200-400 V wide band coil operation
2. Field proven starters
3. Reliable protection against overload
4. Reliable operation & performance under adverse field conditions viz. Hot & humid environment, supply voltage-unbalance etc.
5. “ON & OFF” indication
6. Rugged silver tipped contacts
7. Enclosure provides protection against dust, humidity & insects
8. Compatible with Voltage/Current Auto SPPR
9. Can be connected to Dry Run Protection device
Applications:
1. DOL Starters - Available up to 7.5hp
2. Star-Delta Starters - Available up to 15hp (Types : Fully-Automatic / Semi-Automatic)
3. Agriculture water pumps
4. Flour mill motors
MK2 with 20-32A Relay range for higher current application
New MK2 Contactor (AC3-25A)
Features:
1. 200-400 V wide band coil operation
2. Field proven starters
3. Reliable protection against overload
4. Reliable operation & performance under adverse field conditions viz. Hot & humid environment, supply voltage-unbalance etc.
5. “ON & OFF” indication
6. Rugged silver tipped contacts
7. Enclosure provides protection against dust, humidity & insects
8. Compatible with Voltage/Current Auto SPPR
9. Can be connected to Dry Run Protection device
Applications:
1. DOL Starters - Available up to 7.5hp
2. Star-Delta Starters - Available up to 15hp (Types : Fully-Automatic / Semi-Automatic)
3. Agriculture water pumps
4. Flour mill motors
Product Details
| Coil Voltage | 360V-W (200V-400V) |
|---|---|
| DOL/SASD/ FASD | DOL |
| Conformity to Standard | IS/IEC 60947-4-1 |
| Contactor Electrical Life - AC3 | 1 Million Operations |
| Discount Percentage | Between 0-10 % |
| Mechanical Life | 10 Million Operations |
| type | MK2 DOL |
| Rated Insulation Voltage | 690V |
| HP | 7.5 HP |
| Length(mm) | 141 |
| Breadth(mm) | 115 |
| Height(mm) | 221 |
| Relay Range (A) | 20 - 32A |
