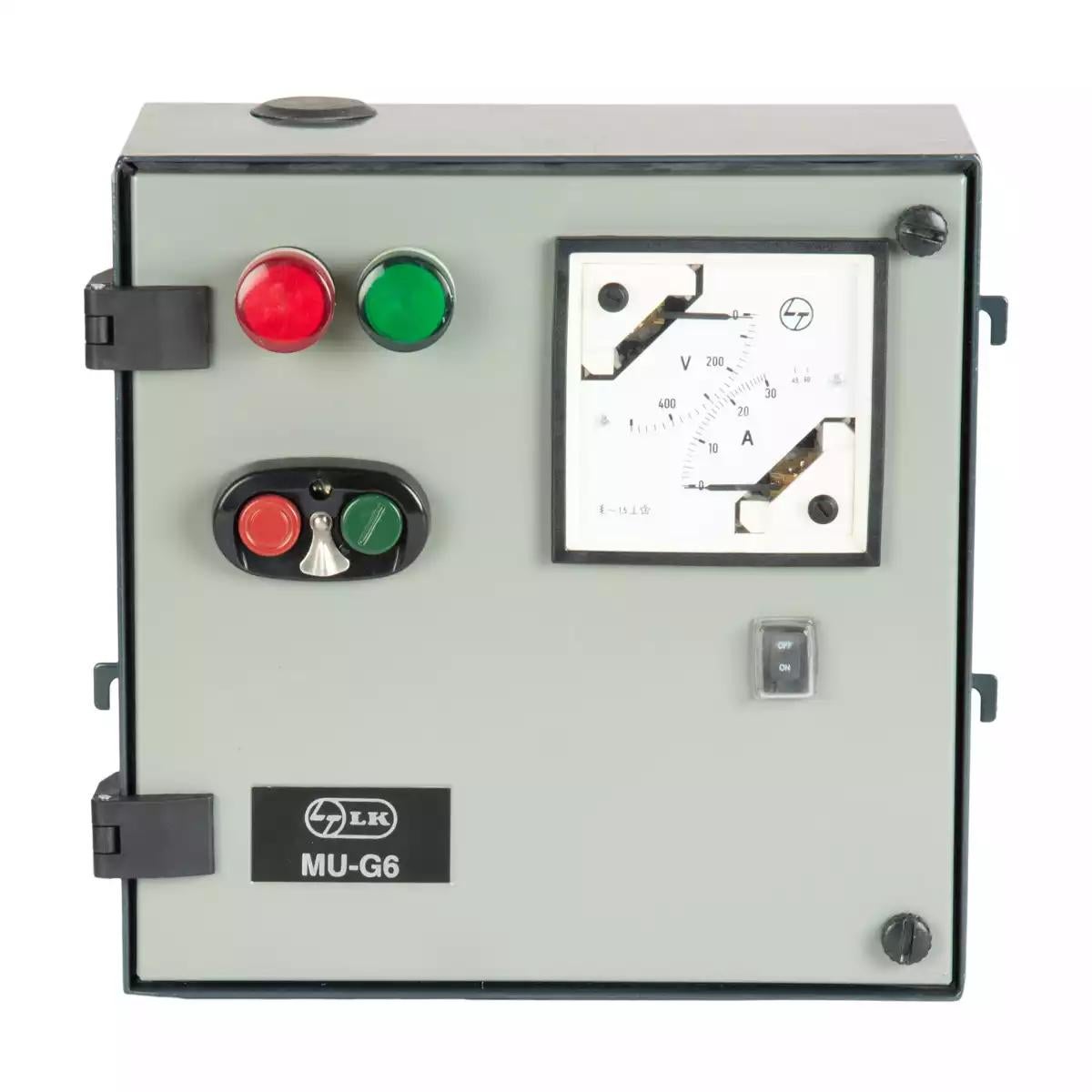

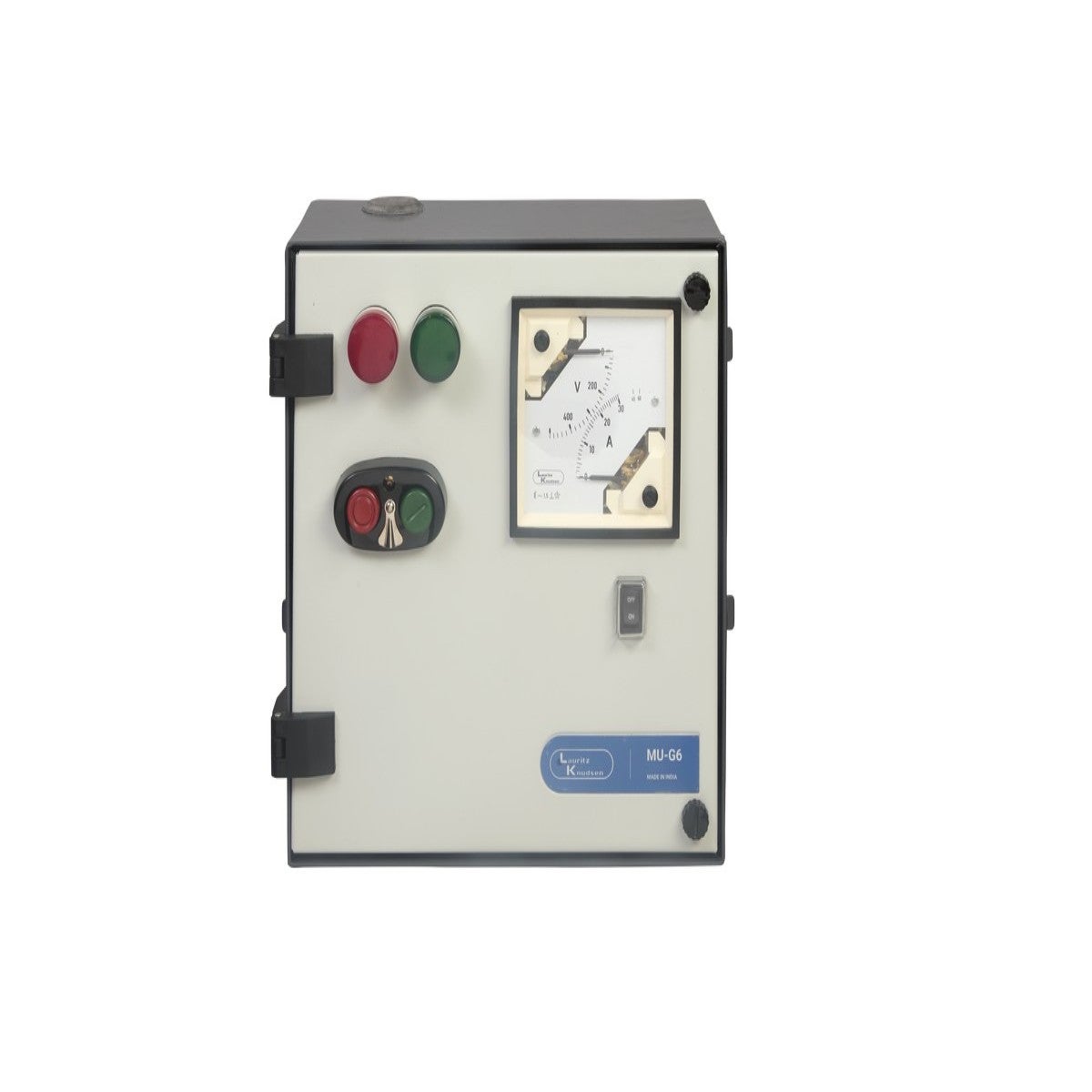

Lauritz Knudsen Three Phase DOL Controller for Submersible Pump Application,MU-G6,6HP,DOL
SS97756COAO
₹8,540.00
₹7,054.04
Incl. Tax
To View the best prices please Log In/register
Loading...
All Sellers
SS97756COAO
Lauritz Knudsen Three Phase DOL Controller for Submersible Pump Application,MU-G6,6HP,DOL
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
Lauritz Knudsen Three Phase DOL Controller for Submersible Pump Application,MU-G6,6HP,DOL
₹8,540.00
₹7,054.04
Description
MU-G Controller:
1. Controller providing excellent and complete protection to your water pump
2. Suitable for use from 180V to 415V supply voltage
3. Reliable operation & performance under adverse, field conditions viz. Hot & humid environment, supply voltage-unbalance etc.
4. Quick protection against single phasing condition
5. Unique combined Volt-Ammeter to indicate voltage & current in same meter
6. Suitable for heavy duty application
Applications:
1. DOL Starters - Available up to 10hp
2. Star-Delta Starters - Available from 15 hp to 75hp, Type : Fully – Automatic
3. Suitable for submersible pump application
1. Controller providing excellent and complete protection to your water pump
2. Suitable for use from 180V to 415V supply voltage
3. Reliable operation & performance under adverse, field conditions viz. Hot & humid environment, supply voltage-unbalance etc.
4. Quick protection against single phasing condition
5. Unique combined Volt-Ammeter to indicate voltage & current in same meter
6. Suitable for heavy duty application
Applications:
1. DOL Starters - Available up to 10hp
2. Star-Delta Starters - Available from 15 hp to 75hp, Type : Fully – Automatic
3. Suitable for submersible pump application
Product Details
| Coil Voltage | 360V-W (200V-400V) |
|---|---|
| DOL/SASD/ FASD | DOL |
| Conformity to Standard | IS/IEC 60947-4-1 |
| Contactor Electrical Life - AC3 | 1 Million Operations |
| Discount Percentage | Between 0-10 % |
| Mechanical Life | 10 Million Operations |
| Service temperature | -5˚C to 55˚C |
| type | MU-G6 |
| Rated Impulse Withstand Voltage | 8kV |
| Rated Insulation Voltage | 690V |
| With/ Without WLC | Without WLC |
| HP | 6HP |
| Length(mm) | 276 |
| Breadth(mm) | 123 |
| Height(mm) | 250 |
| Relay Range (A) | 9 - 14A |
