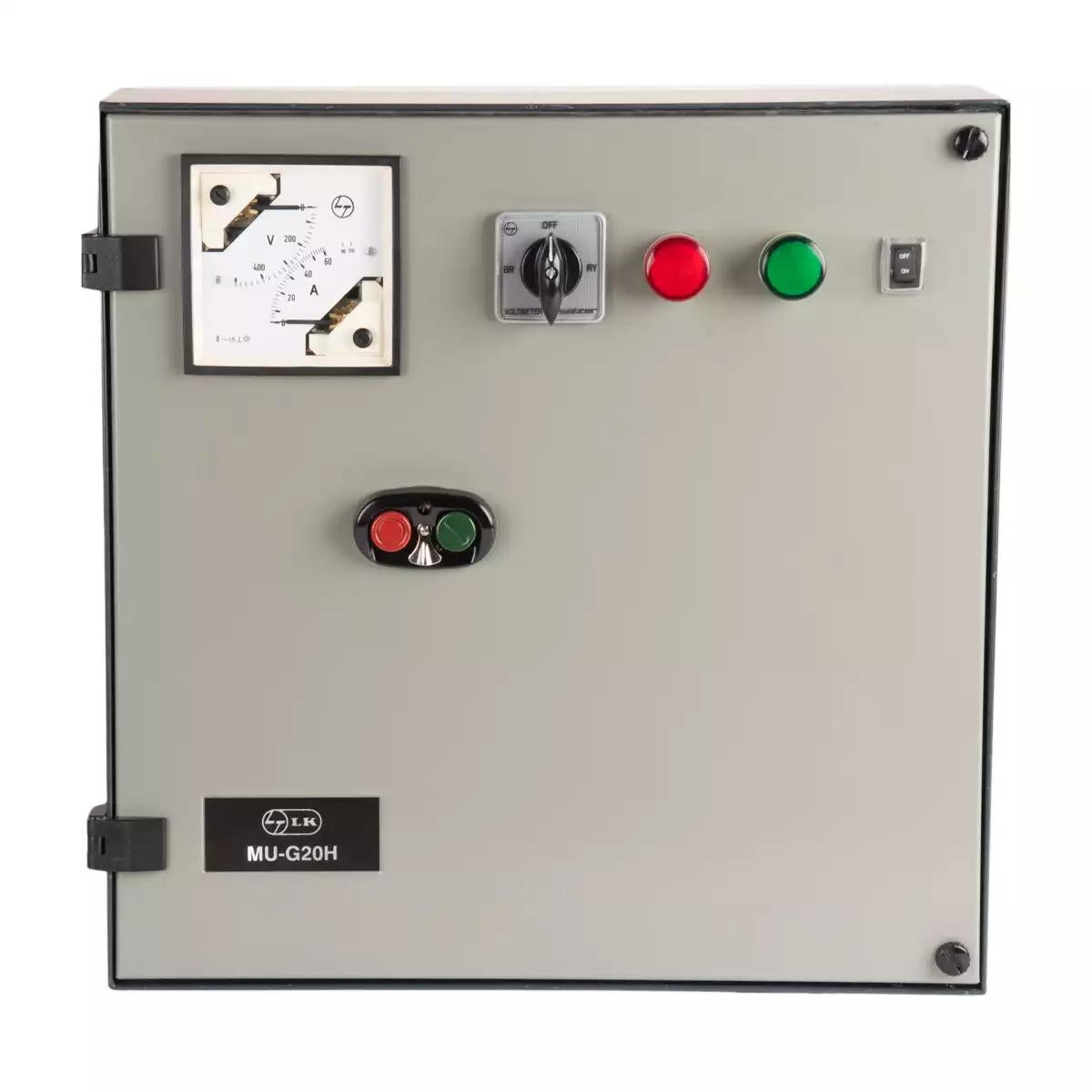

Three Phase Fully Automatic Star Delta Controller for Submersible Pump Application,MU-G20H,20HP,FASD (SS95975COEO)
In stock
SKU
SS95975COEO
₹22,860.00
( Prices are all inclusive of taxes )Three Phase Fully Automatic Star Delta Controller for Submersible Pump Application,MU-G20H,20HP,FASD
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
CHECK DELIVERY TIME & COD AVAILABILITY
MU-G Controller:
1. Controller providing excellent and complete protection to your water pump
2. Suitable for use from 180V to 415V supply voltage
3. Reliable operation & performance under adverse, field conditions viz. Hot & humid environment, supply voltage-unbalance etc.
4. Quick protection against single phasing condition
5. Unique combined Volt-Ammeter to indicate voltage & current in same meter
6. Suitable for heavy duty application
Applications:
1. DOL Starters - Available up to 10hp
2. Star-Delta Starters - Available from 15 hp to 75hp, Type : Fully – Automatic
3. Suitable for submersible pump application
1. Controller providing excellent and complete protection to your water pump
2. Suitable for use from 180V to 415V supply voltage
3. Reliable operation & performance under adverse, field conditions viz. Hot & humid environment, supply voltage-unbalance etc.
4. Quick protection against single phasing condition
5. Unique combined Volt-Ammeter to indicate voltage & current in same meter
6. Suitable for heavy duty application
Applications:
1. DOL Starters - Available up to 10hp
2. Star-Delta Starters - Available from 15 hp to 75hp, Type : Fully – Automatic
3. Suitable for submersible pump application
-
Coil Voltage360V
-
DOL/SASD/ FASDFASD
-
Conformity to StandardIS/IEC 60947-4-1
-
Contactor Electrical Life - AC31 Million Operations
-
Discount PercentageBetween 0-10 %
-
Mechanical Life10 Million Operations
-
Service temperature-5˚C to 55˚C
-
typeMU-G20H
-
Rated Impulse Withstand Voltage8kV
-
Rated Insulation Voltage690V
-
With/ Without WLCWithout WLC
-
HP20HP
-
Length(mm)400
-
Breadth(mm)147
-
Height(mm)408
-
Relay Range (A)20 - 32A
