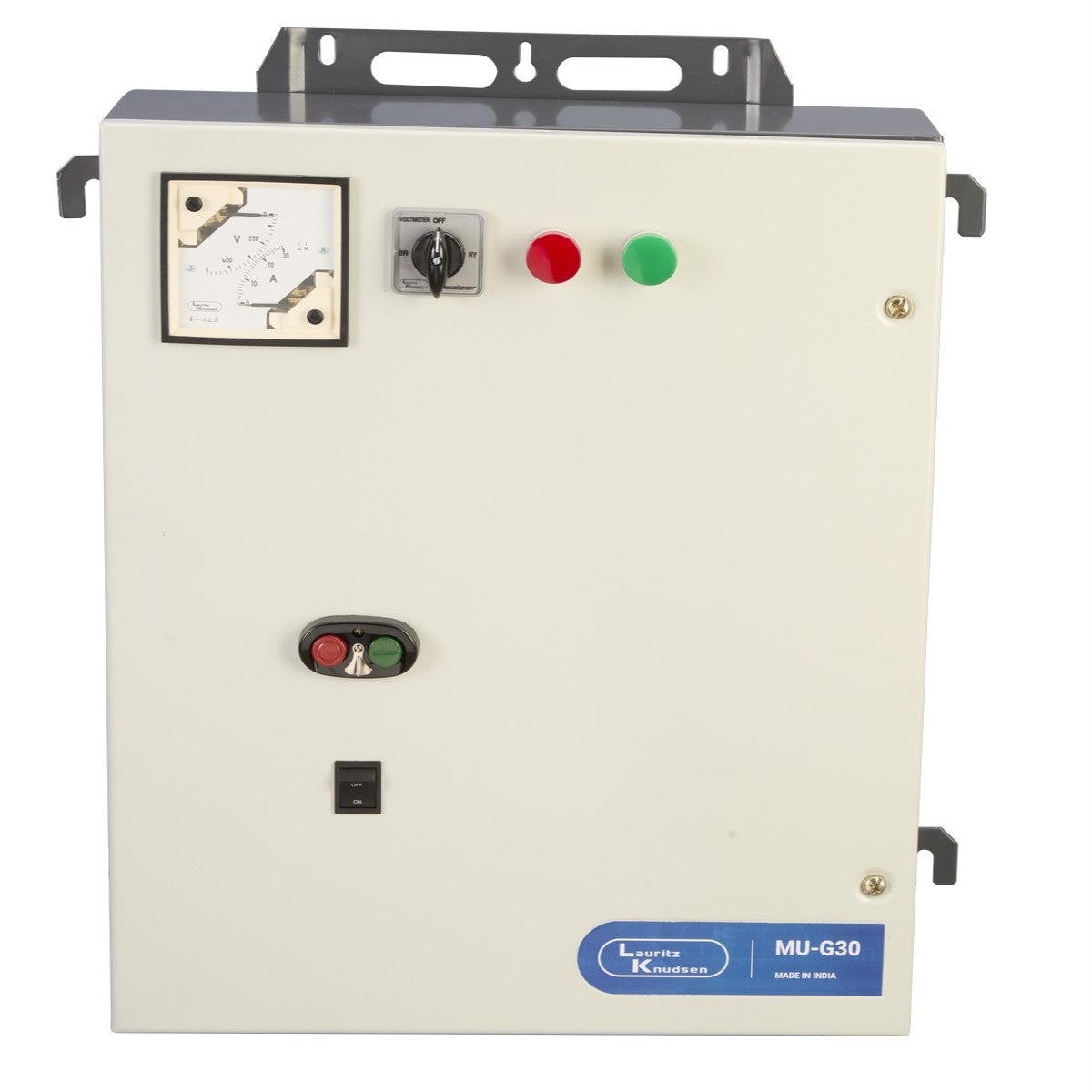

Lauritz Knudsen MU-G30 Three Phase Submersible Pump Controllers (With Single Phase Preventer) of 30HP| Relay Range 30-50A | 380V AC | FASD (With Wideband Coil)
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen MU-G30 Three Phase Submersible Pump Controllers (With Single Phase Preventer) of 30HP| Relay Range 30-50A | 380V AC | FASD (With Wideband Coil)
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Three Phase Fully Automatic Star Delta Controller for Submersible Pump Application is a control & protection unit designed for starting & operating three phase submersible pump motors using reduced voltage starting.
It automatically transitions from star to delta configuration to reduce starting current & mechanical stress, making it suitable for borewell installations, irrigation systems, & industrial water pumping applications where reliable motor control & protection are required.
How the Star Delta Controller Works
This controller ensures smooth & efficient motor operation through a staged starting process:
• Starts the motor in star configuration with reduced voltage
• Minimizes inrush current during startup
• Automatically switches to delta configuration after a preset interval
• Enables efficient operation at full motor capacity
• Reduces electrical & mechanical stress on the motor & connected equipment
Star-delta controllers are commonly used for higher-capacity motors where direct-on-line starting may result in excessive starting current.
Electrical Configuration
• Phase: Three Phase
• Control Type: Fully Automatic Star Delta Starter
• Application: Submersible pump motor control
• Function: Reduced voltage motor starting & protection
• System Compatibility: Low-voltage three phase systems
• Usage: Automatic star-to-delta transition
Construction & Design
The controller is designed for dependable performance in demanding pumping applications:
• Integrated star-delta switching & control mechanism
• Robust enclosure suitable for panel-mounted installations
• Designed for continuous & stable operation
• Optimized electrical arrangement for reliable performance
• Suitable for agricultural & industrial environments
Safety & Protection
• Reduces high starting current during motor startup
• Minimizes stress on motor windings & mechanical components
• Protects against overload conditions
• Provides protection against phase-related electrical faults
• Helps improve motor life & operational reliability
• Ensures safe & controlled motor operation
Mounting & Durability
• Suitable for panel mounting installations
• Designed for pump control panels & motor starter systems
• Built for outdoor & agricultural environments
• Resistant to dust & typical installation site conditions
• Designed for long operational life & dependable service
Application Domains
• Submersible pump systems
• Borewell installations
• Agricultural irrigation systems
• Industrial water pumping systems
• High-capacity motor control applications
Key Features
• Fully automatic star delta controller
• Reduced voltage motor starting capability
• Automatic star-to-delta transition
• Reduces starting current & motor stress
• Integrated motor control & protection system
• Suitable for submersible pump applications
• Designed for agricultural & industrial use
Applications
• Agricultural irrigation systems
• Borewell pump installations
• Industrial pumping systems
• Motor control panels
• Water supply & distribution systems
FAQs
1. What is a star delta controller used for?
Ans: It is used to start three phase motors with reduced voltage, minimizing starting current & protecting the electrical system.
2. How does star delta starting work?
Ans: The motor starts in star configuration with reduced voltage & then automatically switches to delta configuration for normal operation.
3. Why use a star delta controller instead of DOL starting?
Ans: Star delta starting reduces inrush current & mechanical stress, making it suitable for larger motors.
4. Where is this controller commonly installed?
Ans: It is commonly installed in borewell systems, irrigation networks, water pumping stations, & industrial applications.
5. Is it suitable for submersible pumps?
Ans: Yes, it is specifically designed for three phase submersible pump motor applications.
6. Does it provide motor protection?
Ans: Yes, it helps protect against overload conditions & phase-related electrical faults.
7. What is the benefit of automatic star-to-delta changeover?
Ans: It ensures smooth motor acceleration, efficient operation, & reduced stress on electrical systems.
Overview
| Coil Voltage | 380V |
|---|---|
| DOL/SASD/ FASD | FASD |
| Conformity to Standard | IS/IEC 60947-4-1 |
| Contactor Electrical Life - AC3 | 1 Million Operations |
| Discount Percentage | Between 0-10 % |
| Mechanical Life | 10 Million Operations |
| Service temperature | -5˚C to 55˚C |
| type | MU-G30 |
| Rated Impulse Withstand Voltage | 8kV |
| Rated Insulation Voltage | 690V |
| With/ Without WLC | Without WLC |
| HP | 30HP |
| Length(mm) | 526 |
| Breadth(mm) | 187 |
| Height(mm) | 572 |
| Relay Range (A) | 30 - 50A |
