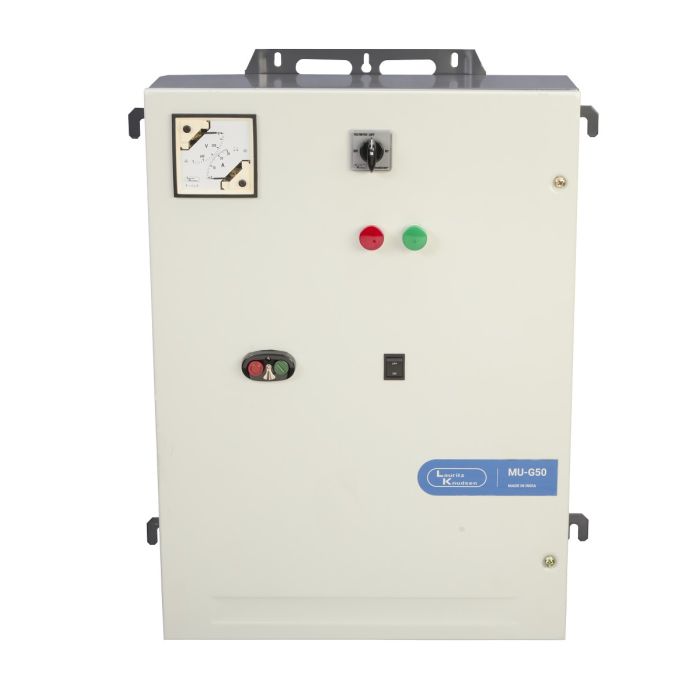

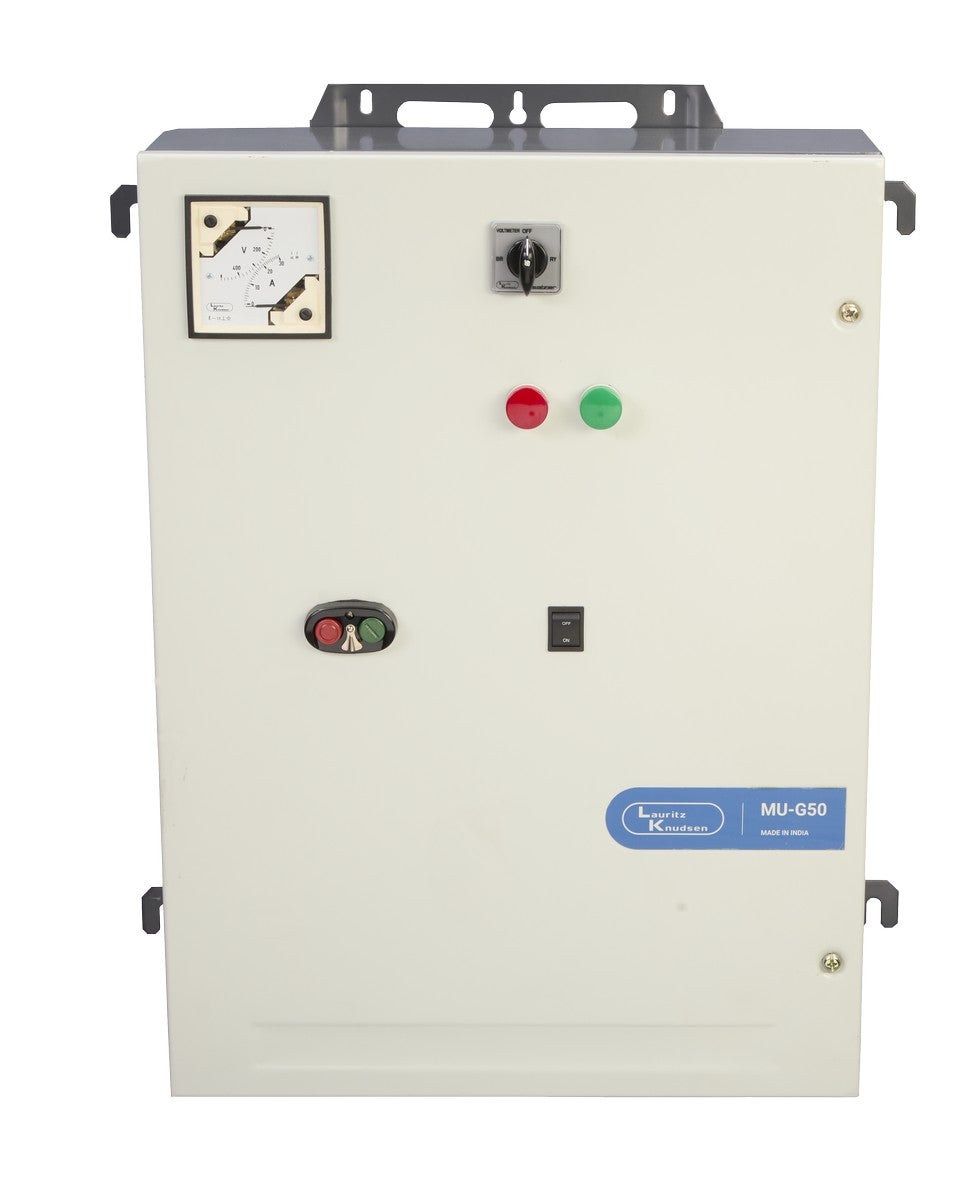

Lauritz Knudsen MU-G50 Three Phase Submersible Pump Controllers (With Single Phase Preventer) of 30HP| Relay Range 30-50A | 380V AC | FASD (With Wideband Coil)
SKU :
CS96009COGO
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CS96009COGO
Lauritz Knudsen MU-G50 Three Phase Submersible Pump Controllers (With Single Phase Preventer) of 30HP| Relay Range 30-50A | 380V AC | FASD (With Wideband Coil)
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹75,700.00
₹51,145.92
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Estimated delivery:
Out of stock
Lauritz Knudsen MU-G50 Three Phase Submersible Pump Controllers (With Single Phase Preventer) of 30HP| Relay Range 30-50A | 380V AC | FASD (With Wideband Coil)
₹75,700.00
₹51,145.92
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
1. Controller providing excellent and complete protection to your water pump
2. Suitable for use from 180V to 415V supply voltage
3. Reliable operation & performance under adverse, field conditions viz. Hot & humid environment, supply voltage-unbalance etc.
4. Quick protection against single phasing condition
5. Unique combined Volt-Ammeter to indicate voltage & current in same meter
6. Suitable for heavy duty application
Applications:
1. DOL Starters - Available up to 10hp
2. Star-Delta Starters - Available from 15 hp to 75hp, Type : Fully Automatic
3. Suitable for submersible pump application
Overview
| Coil Voltage | 380V |
|---|---|
| DOL/SASD/ FASD | FASD |
| Conformity to Standard | IS/IEC 60947-4-1 |
| Contactor Electrical Life - AC3 | 1 Million Operations |
| Discount Percentage | Between 0-10 % |
| Mechanical Life | 10 Million Operations |
| Service temperature | -5˚C to 55˚C |
| type | MU-G50 |
| Rated Impulse Withstand Voltage | 8kV |
| Rated Insulation Voltage | 690V |
| With/ Without WLC | Without WLC |
| HP | 30HP |
| Length(mm) | 586 |
| Breadth(mm) | 207 |
| Height(mm) | 712 |
| Relay Range (A) | 30 - 50A |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
View All
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
