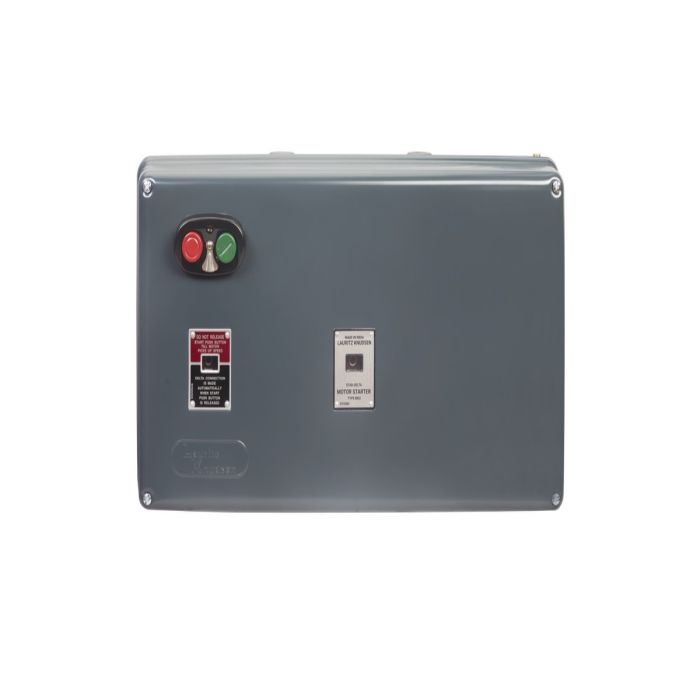

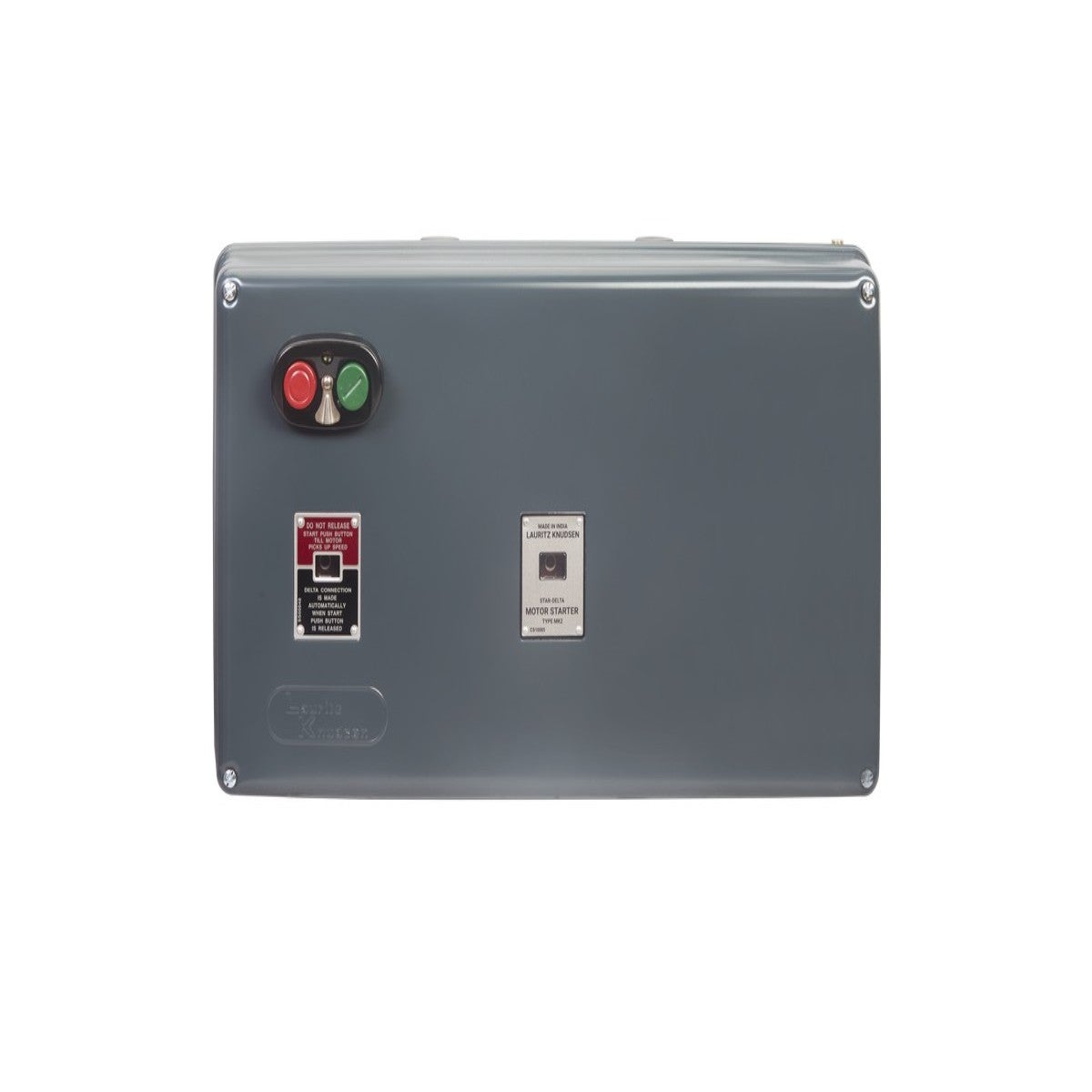

Three Phase Semi Automatic Star Delta Starter,MK2 SASD,15 HP (CS91582COEO)
CS91582COEO
₹11,980.00
₹9,895.48
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
CS91582COEO
Three Phase Semi Automatic Star Delta Starter,MK2 SASD,15 HP (CS91582COEO)
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
Three Phase Semi Automatic Star Delta Starter,MK2 SASD,15 HP (CS91582COEO)
₹11,980.00
₹9,895.48
Description
MK1 with Relay ranges up to 13-22 A relay
MK2 with 20-32A Relay range for higher current application
New MK2 Contactor (AC3-25A)
Features:
1. 200-400 V wide band coil operation
2. Field proven starters
3. Reliable protection against overload
4. Reliable operation & performance under adverse field conditions viz. Hot & humid environment, supply voltage-unbalance etc.
5. “ON & OFF” indication
6. Rugged silver tipped contacts
7. Enclosure provides protection against dust, humidity & insects
8. Compatible with Voltage/Current Auto SPPR
9. Can be connected to Dry Run Protection device
Applications:
1. DOL Starters - Available up to 7.5hp
2. Star-Delta Starters - Available up to 15hp (Types : Fully-Automatic / Semi-Automatic)
3. Agriculture water pumps
4. Flour mill motors
MK2 with 20-32A Relay range for higher current application
New MK2 Contactor (AC3-25A)
Features:
1. 200-400 V wide band coil operation
2. Field proven starters
3. Reliable protection against overload
4. Reliable operation & performance under adverse field conditions viz. Hot & humid environment, supply voltage-unbalance etc.
5. “ON & OFF” indication
6. Rugged silver tipped contacts
7. Enclosure provides protection against dust, humidity & insects
8. Compatible with Voltage/Current Auto SPPR
9. Can be connected to Dry Run Protection device
Applications:
1. DOL Starters - Available up to 7.5hp
2. Star-Delta Starters - Available up to 15hp (Types : Fully-Automatic / Semi-Automatic)
3. Agriculture water pumps
4. Flour mill motors
Product Details
| Coil Voltage | 360V |
|---|---|
| DOL/SASD/ FASD | SASD |
| Discount Percentage | Between 0-10 % |
| type | MK2 SASD |
| HP | 15HP |
| Length(mm) | 399 |
| Breadth(mm) | 115 |
| Height(mm) | 221 |
| Relay Range (A) | 20 - 32A |
