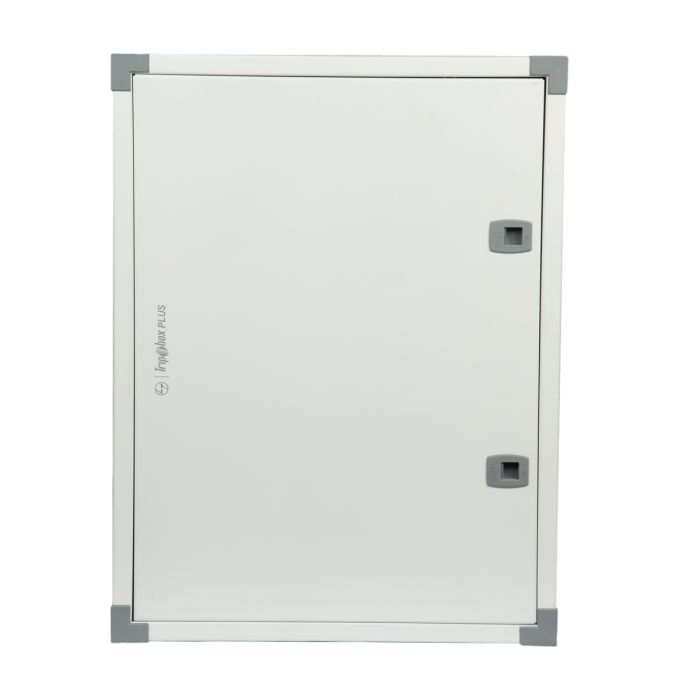

Lauritz Knudsen Tripbox PLUS, Distribution Board (DB) VTPN, Double Door, 6 Way MCCB I/C | Plastic Corners for Corner Protection
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Tripbox Plus DB VTPN 12 Way Double Door 125A MCCB I/C is a heavy-duty distribution board enclosure engineered for three phase (VTPN) electrical systems requiring reliable & large-scale power distribution. It is built to securely house both incoming & outgoing protection devices while ensuring organized & safe electrical management.
Equipped with a 125A MCCB incomer, this unit offers strong protection against overloads & short circuits & can handle medium to high electrical loads efficiently. The 12-way capacity provides flexibility to distribute power across multiple circuits, making it suitable for complex commercial & industrial installations.
Purpose & Function
This DB enclosure serves as a central hub for distribution, control, & protection:
• Houses a 125A MCCB incomer for main power control
• Distributes electrical power to multiple outgoing circuits
• Provides overload & short circuit protection
• Organizes three phase wiring & circuit layout
• Enables safe isolation & maintenance of the system
Technical Specifications
• System: VTPN (Three Phase + Neutral)
• Incomer: 125A MCCB (Moulded Case Circuit Breaker)
• Capacity: 12 Way (supports multiple outgoing circuits)
• Rated voltage: 415V AC
• Function: Power distribution, protection, & control
Construction & Design
The enclosure is designed for robust performance & durability:
• Heavy-duty construction for long service life
• Double door design for enhanced safety & accessibility
• Inner protective cover to prevent contact with live parts
• Outer door for secure operation & professional finish
• High-capacity structure suitable for complex installations
• Designed for neat cable routing & organized layout
Safety & Protection
• MCCB ensures protection against overload & short circuit faults
• Double door design minimizes risk of accidental contact
• Protects internal components from dust, impact, & environment
• Provides safe isolation of incoming & outgoing circuits
• Enhances reliability & operational safety
Mounting & Installation
• Suitable for surface or flush mounting
• Easy installation in electrical rooms & panels
• Compatible with standard three phase wiring systems
• Ideal for medium to large distribution boards
• Supports clean & structured wiring
Application Areas
• Commercial buildings & complexes
• Industrial installations & factories
• Three phase distribution systems
• Machinery & heavy equipment circuits
• Electrical control panels & switchgear
• Centralized power distribution systems
Key Features
• 12-way VTPN DB enclosure with 125A MCCB incomer
• Double door design for enhanced safety
• Built-in overload & short circuit protection
• Suitable for high-capacity three phase systems
• Durable & heavy-duty construction
• Easy installation & maintenance
Applications
• Large three phase distribution panels
• Commercial electrical systems
• Industrial power distribution
• Machinery & equipment supply systems
• Electrical protection & control systems
FAQs
1. What is an MCCB incomer?
Ans: An MCCB incomer is the main circuit breaker that controls & protects the incoming power supply to the distribution board.
2. What does 125A rating mean?
Ans: It indicates the maximum current capacity the MCCB can safely handle, suitable for medium to high load systems.
3. What does VTPN mean?
Ans: VTPN refers to a three phase electrical system with neutral, used in industrial & commercial power distribution.
4. What does 12 way mean?
Ans: It means the enclosure supports multiple outgoing circuits from one incoming supply.
5. Why is a double door design important?
Ans: It provides an inner protective barrier & an outer door, improving safety & controlled access.
6. Where is this DB used?
Ans: It is used in commercial buildings, factories, & industrial setups for structured power distribution.
7. Why is an MCCB important?
Ans: An MCCB protects the system from overloads & short circuits, ensuring safe & reliable operation.
Overview
| Door Type | Double Door |
|---|---|
| Discount Percentage | Between 0-10 % |
| Conformance to Standards | IS 8623 |
| No of Module Incomer | 125A MCCB |
| No of Module Outgoing | 12+12+12 |
| Length(mm) | 123 |
| Height(mm) | 884 |
| Breadth(mm) | 470 |
Documents
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
