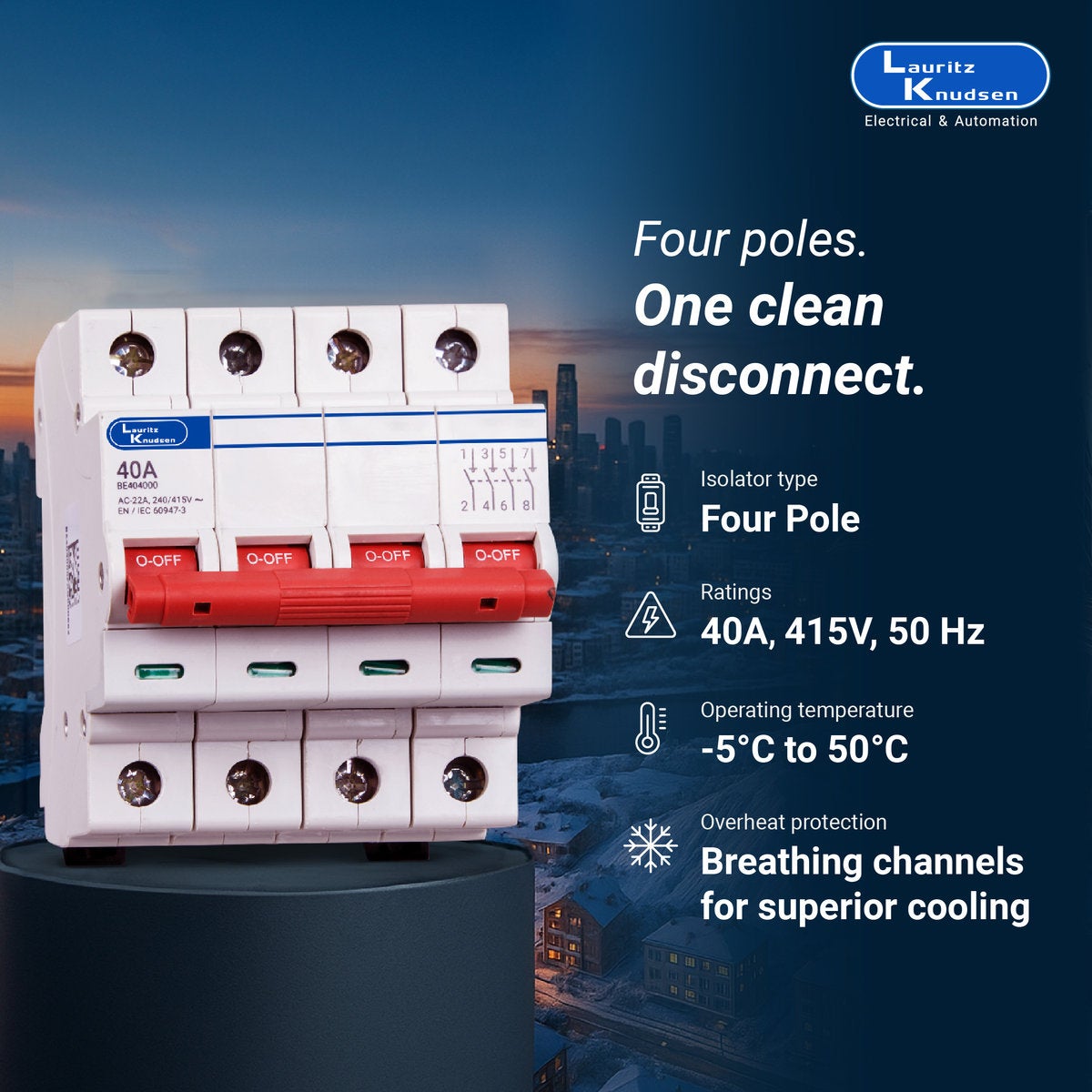

Lauritz Knudsen Isolator, 40A | 4 Pole | Higher Life | 415V AC | CE Marked
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Tripper Isolator 40A FP 415V AC is a reliable & efficient isolation device designed for complete disconnection of three phase electrical circuits along with the neutral conductor. It is used for maintenance, servicing, & operational safety, ensuring secure isolation without providing protection against overload or short circuit faults.
With a 40A current rating, this isolator is suitable for medium load three phase systems such as motors, control panels, & distribution boards. The four pole (FP) configuration ensures simultaneous disconnection of all three phases & the neutral, providing total circuit isolation & enhanced safety.
How the Isolator Work
The isolator operates as a manual switching device:
• Allows manual ON/OFF switching of electrical circuits
• Disconnects all three phases along with the neutral simultaneously
• Provides safe isolation for maintenance & servicing
• Ensures zero current flow when switched OFF
• Does not trip automatically (manual operation only)
Technical Specifications
• Rated current: 40A
• Poles: Four pole (FP – 3 phase + neutral)
• Rated voltage: 415V AC
• Function: Circuit isolation (manual switching)
• Protection: Does not provide overload or short circuit protection
• Application: Three phase circuit isolation with neutral
Construction & Design
The isolator is built for durability & reliable performance:
• Four pole design for full system isolation including neutral
• Compact modular construction
• DIN rail mountable for easy installation
• Smooth & durable switching mechanism
• High-quality internal components for long service life
Safety & Protection
• Provides safe isolation of three phase circuits including neutral
• Ensures complete disconnection of all conductors
• Prevents accidental energization during maintenance
• Improves safety in industrial & commercial systems
• Must be used with MCB/RCBO for complete protection
Mounting & Durability
• DIN rail mountable for quick installation
• Suitable for distribution boards & control panels
• Compact design for efficient panel space usage
• Designed for long mechanical life
• Reliable under continuous medium load operation
Application Areas
• Industrial electrical systems
• Commercial installations
• Three phase distribution boards
• Motor & machinery circuits
• Control panels & switchgear
Key Features
• 40A rated isolator for three phase applications
• Four pole (FP) configuration including neutral isolation
• Manual ON/OFF switching
• DIN rail mountable design
• Compact & robust construction
• Ensures safe & complete circuit isolation
Applications
• Three phase circuit isolation with neutral
• Industrial maintenance & servicing
• Motor & equipment isolation
• Distribution panel switching
• Commercial electrical systems
FAQs
1. What is an FP isolator?
Ans: An FP (Four Pole) isolator disconnects all three phases along with the neutral for complete system isolation.
2. Does this isolator provide overload protection?
Ans: No, isolators do not provide protection. They must be used with MCBs or RCBOs.
3. Where is a 40A FP isolator used?
Ans: It is used in three phase systems requiring full isolation, including neutral, such as industrial panels & control systems.
4. Can this isolator trip automatically?
Ans: No, it operates manually & does not include any automatic tripping feature.
5. Why is neutral isolation important?
Ans: Neutral isolation ensures complete circuit disconnection, improving safety during maintenance & fault conditions.
6. What is the difference between TP & FP isolator?
Ans: TP isolators disconnect only the three phases, while FP isolators disconnect three phases plus the neutral.
7. How is this isolator installed?
Ans: It is installed on a DIN rail inside a distribution board or electrical panel.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -5°C to +50°C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 100000 |
| No. of Poles | FP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Impulse Voltage | 4kV |
| Current Rating | 40A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IEC 60947-3 |
| Length(mm) | 74.5 |
| Height(mm) | 87.3 |
| Breadth(mm) | 70 |
