main product photo

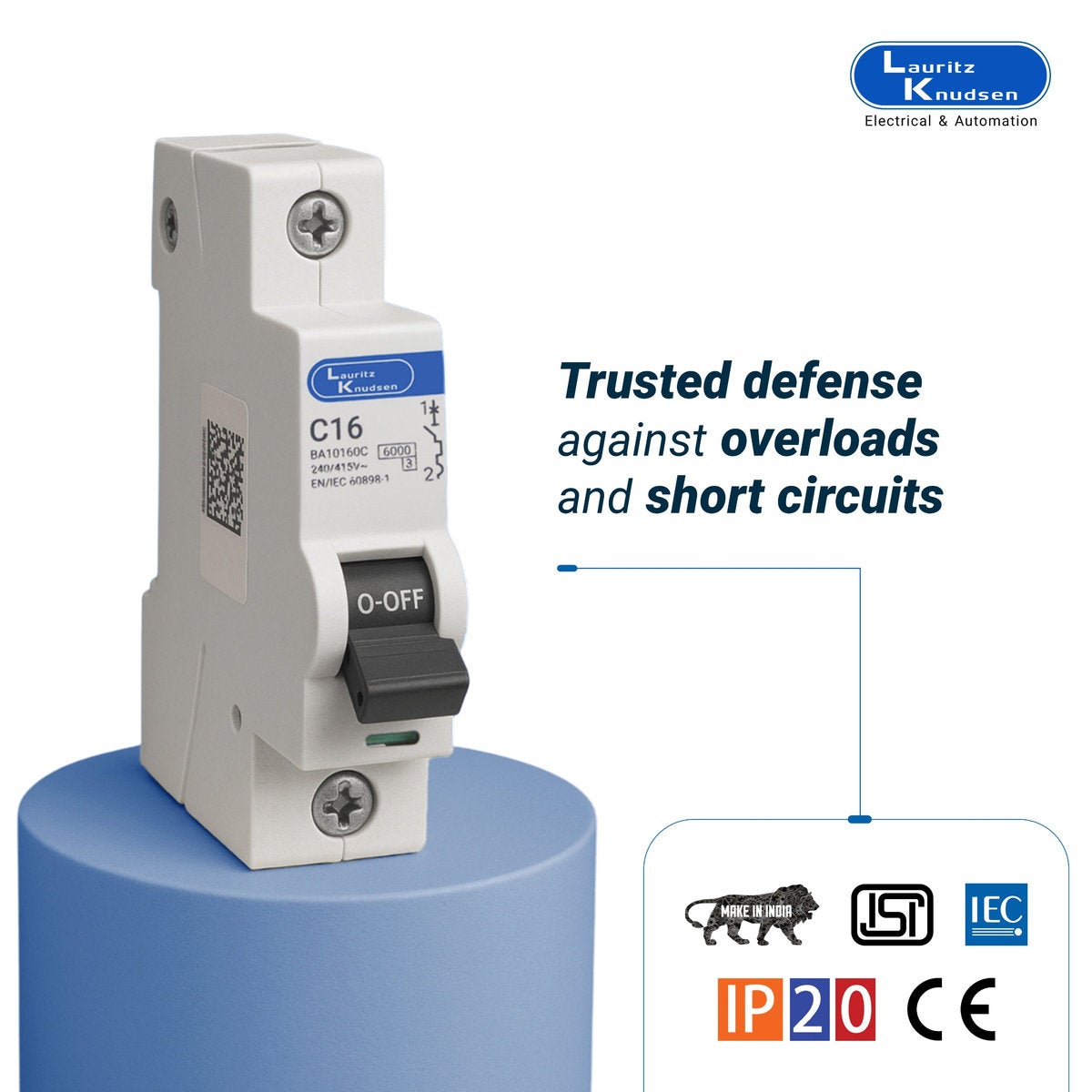

Tripper MCB 16A SP 240V AC 6kA C Curve

In stock
SKU
BA10160C
Regular Price ₹201.00 Special Price ₹150.75
25% Off ( Prices are all inclusive of taxes )
Be the first to review this product
Add to Compare
Tripper MCB 16A SP 240V AC 6kA C Curve

HSN Code - 85362030

The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.

Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.

CHECK DELIVERY TIME & COD AVAILABILITY

  • The MCB is a vital protection device that is essential in every electrical installation to safeguard both your life and valuable property against short-circuit and overload.
Technical Specifications
  • Discount Percentage
    Between 0-10 %
  • Operating Temperature Range
    -25°C to +70°C
  • Electrical life (Operating Cylces)
    10000
  • Tightening Torque
    4Nm
  • Termination capacity
    35 Sq. mm (Rigid) 25 Sq. mm (Flexible)
  • Mechanical Life (Operating Cycles)
    100000
  • No. of Poles
    SP
  • Rated Insulation Voltage Ui (V)
    500V
  • Rated Frequency
    50Hz/60Hz
  • Rated Short-circuit Breaking Capacity
    6kA
  • Rated Impulse Voltage
    4kV
  • Current Rating
    16A
  • Rated operational voltage (Ue)
    240V
  • Conformance to Standards
    IS/IEC 60898-1
  • Tripping Characteristic
    C Curve
  • Length(mm)
    74.5
  • Height(mm)
    87.3
  • Breadth(mm)
    17.5
Reviews
Write Your Own Review
You're reviewing:Tripper MCB 16A SP 240V AC 6kA C Curve
Your Rating

No sellers found for this product.
Customer Who Purchased This Product Also Bought

A single pole MCB with current rating range of 16 amp, this 16 amp miniature circuit breaker from Lauritz Knudsen (Formerly L&T Switchgear) TRIPPER range is DIN Rail Mountable and has a rated voltage of 240V. Keeping in with the tradition of highly safe and versatile use cases offered by Lauritz Knudsen (Formerly L&T Switchgear) MCB products, this unit offers the following features:

  1. A Type C Curve MCB switch
  2. Quick breaking hammer trip mechanism
  3. True Contact Position Indicator
  4. Up to 10000 operating cycles
  5. Enhanced safety for personnel and applications
  6. Conforms to IS/IEC 60898-1 standards for watt loss
  7. Has a breaking capacity of 6kA
  8. Supports wide range of accessories such as aux contacts
  9. Rated frequency of 50-60 Hz

Installation and Usage:

Safeguard your electrical installation from short circuits and current overload. This 16 Amp single pole MCB is suitable for use in both residential and commercial establishments as required. The MCB can be mounted in any supported 1 pole MCB box.

16 Amp 1 Pole MCB Price:

Buy direct from the Lauritz Knudsen (Formerly L&T Switchgear) Smartshop for best deals on 16 Amp 1 pole MCBs. Check out our listings for product to product single pole MCB price comparison.
