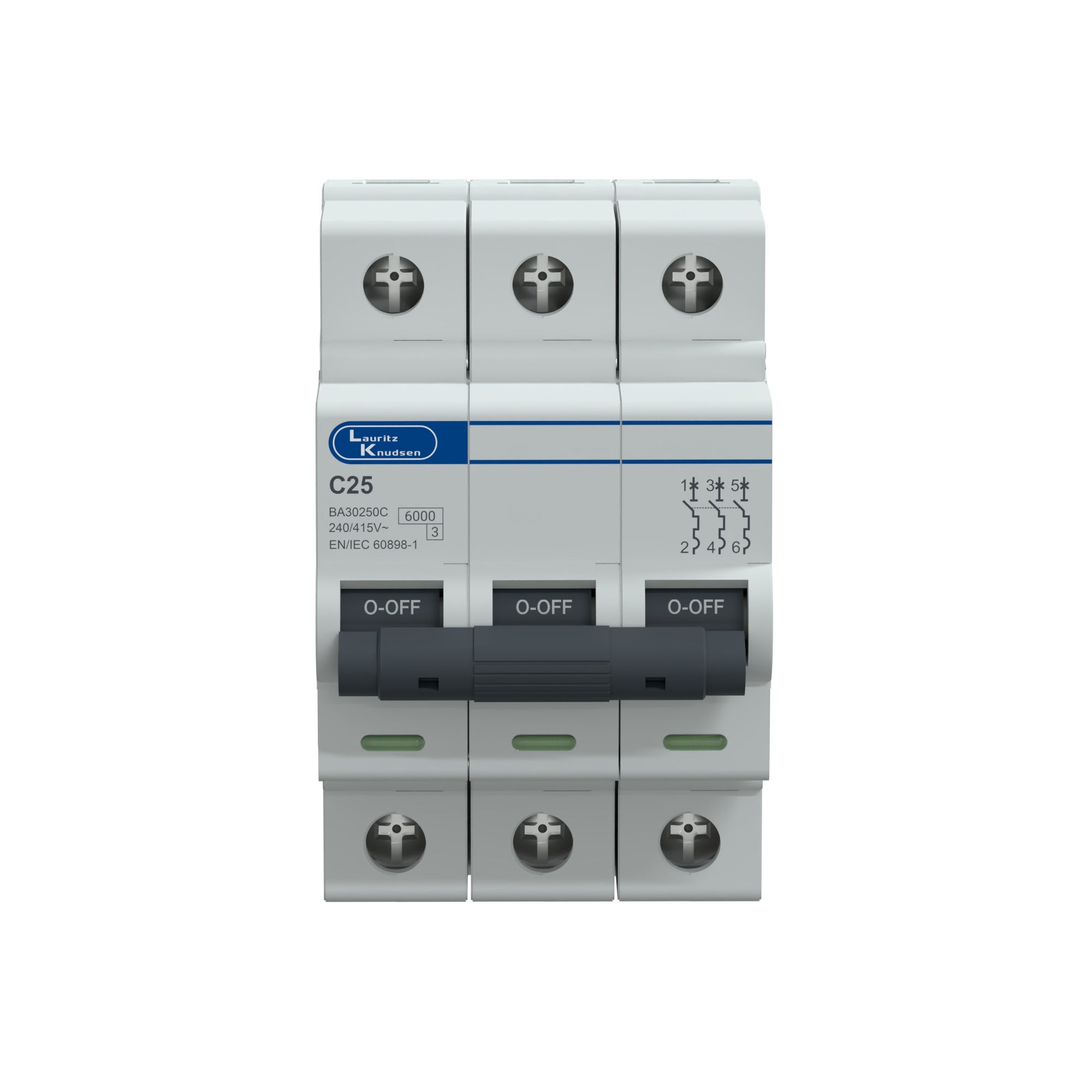

Lauritz Knudsen Tripper, MCB, C-Curve, 25A | 3 Pole | Energy Saving | Higher Life | 415V AC
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Tripper MCB 25A TP 415V AC 6kA C Curve is a high-performance Miniature Circuit Breaker engineered for protection of three phase electrical systems against overload & short circuit faults. It is ideal for industrial & commercial applications where moderate to high current loads & inductive equipment are present.
With a 25A current rating & a 6kA breaking capacity, this MCB ensures safe & efficient interruption of fault currents. The triple pole (TP) configuration allows simultaneous protection & isolation of all three phases, ensuring balanced & reliable system safety. The C Curve tripping characteristic makes it suitable for circuits with moderate inrush currents such as motors, pumps, compressors, & other inductive loads.
How the Mechanism Works
This MCB provides dependable circuit protection through continuous monitoring & rapid tripping:
• Continuously monitors current across all three phases
• Trips when overload conditions exceed safe limits
• Instantly disconnects supply during short circuit faults
• Allows moderate inrush currents without nuisance tripping
• Simultaneously isolates all three phases
This ensures safe, stable, & efficient operation of three phase electrical systems.
Technical Specifications
• Rated current: 25A
• Poles: Triple pole (TP)
• Rated voltage: 415V AC
• Breaking capacity: 6kA
• Tripping curve: C Curve
• Function: Overload & short circuit protection
• Application: Medium load three phase circuits with inductive loads
Construction & Design
The MCB is engineered for durability & consistent performance:
• Triple pole design for complete three phase protection
• Compact modular construction suitable for DIN rail mounting
• C Curve tripping optimized for moderate surge current loads
• Efficient arc extinguishing mechanism
• High-quality internal components for reliable operation
Safety & Protection
• Protects against overload & short circuit faults
• Ensures simultaneous disconnection of all three phases
• Suitable for circuits with moderate inrush currents
• Prevents damage to wiring & connected equipment
• Enhances system safety & operational reliability
Mounting & Durability
• DIN rail mountable for quick & easy installation
• Suitable for distribution boards & control panels
• Compact modular design for efficient panel space usage
• Designed for long mechanical & electrical life
• Reliable under continuous & moderate load conditions
Application Areas
• Industrial electrical systems
• Motor, pump, & compressor circuits
• Commercial electrical installations
• Three phase distribution boards
• Control panels & machinery applications
Key Features
• 25A rated MCB for three phase applications
• Triple pole (TP) configuration
• 6kA breaking capacity
• C Curve for moderate inrush current circuits
• Reliable overload & short circuit protection
• Compact DIN rail mountable design
• Durable & long-lasting construction
Applications
• Motor & pump circuits
• Industrial machinery systems
• Commercial electrical installations
• Inductive load protection
• Three phase power distribution
FAQs
1. What does TP mean in this MCB?
Ans: TP (Triple Pole) means the breaker protects & disconnects all three phases simultaneously.
2. What does C Curve indicate?
Ans: C Curve is suitable for circuits with moderate inrush currents such as motors, pumps, & compressors.
3. Where is a 25A TP C Curve MCB used?
Ans: It is used in medium load three phase circuits such as industrial machinery, motors, & commercial electrical systems.
4. What is the importance of 6kA breaking capacity?
Ans: It ensures safe interruption of fault currents up to 6kA.
5. Does it protect all three phases?
Ans: Yes, it provides protection & isolation for all three phases simultaneously.
6. How is this MCB installed?
Ans: It is installed on a DIN rail inside a distribution board or control panel.
7. Why use a TP MCB?
Ans: It ensures balanced protection & simultaneous disconnection of all three phases, improving safety & system reliability.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +70°C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 100000 |
| No. of Poles | TP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz/60Hz |
| Rated Short-circuit Breaking Capacity | 6kA |
| Rated Impulse Voltage | 4kV |
| Current Rating | 25A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IS/IEC 60898-1 |
| Tripping Characteristic | C Curve |
| Length(mm) | 74.5 |
| Height(mm) | 87.3 |
| Breadth(mm) | 52.5 |
Documents
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
