Description
About the Product

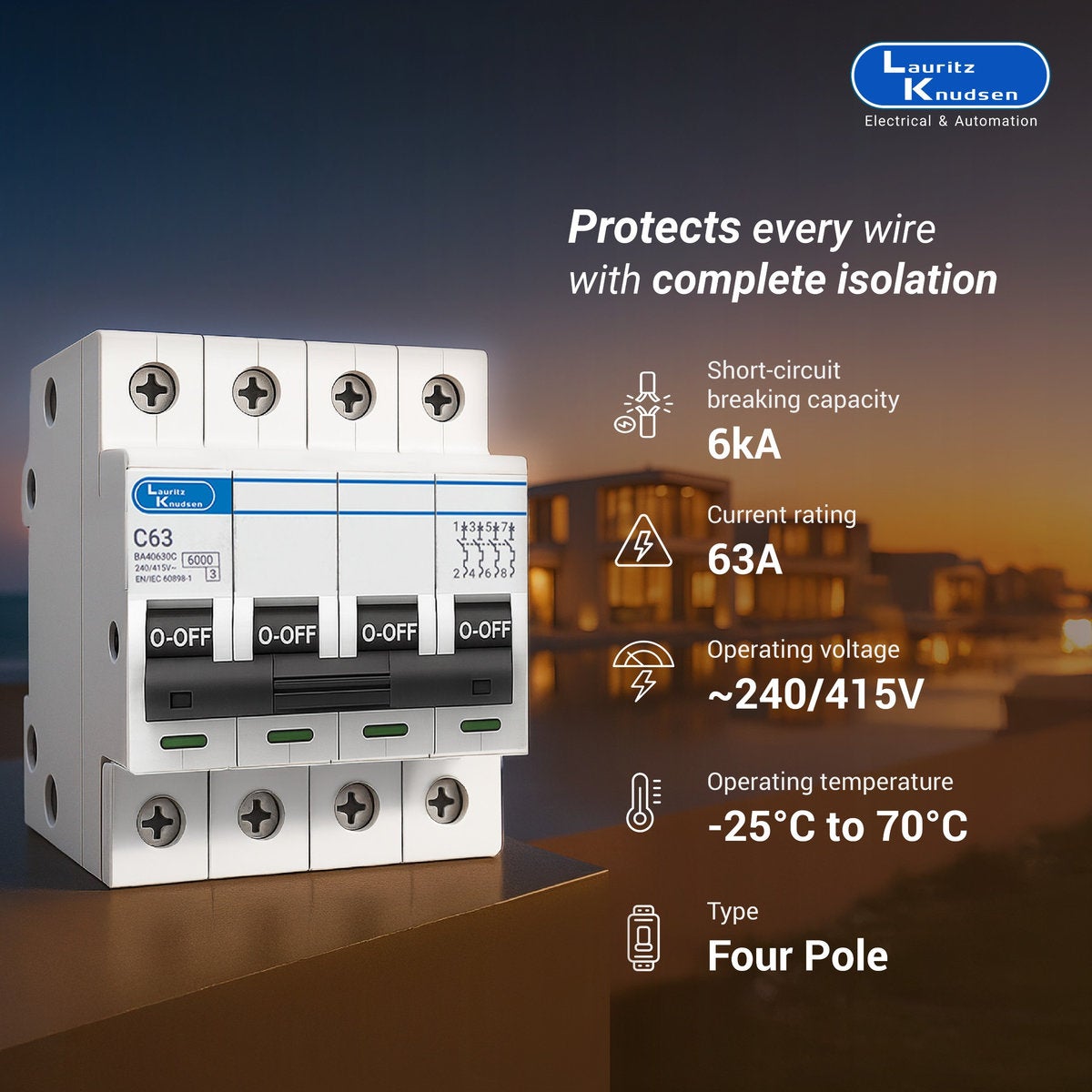

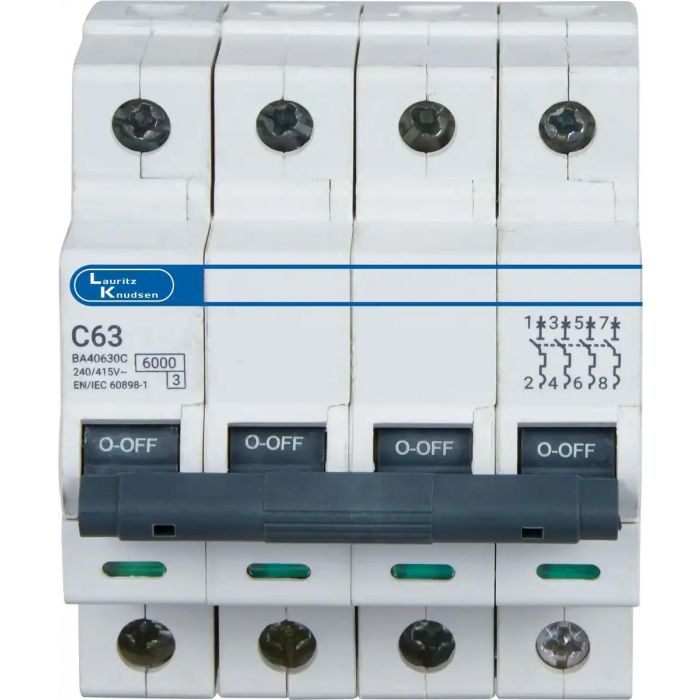

The Tripper MCB 63A FP 415V AC 6kA C Curve is a heavy-duty Miniature Circuit Breaker engineered to provide superior protection for three phase electrical systems against overloads & short circuit faults. It is ideal for industrial & commercial installations where very high current loads & inductive equipment are widely used.
With a 63A current rating & a 6kA breaking capacity, this MCB ensures safe & efficient interruption of fault currents. The four pole (FP) configuration enables simultaneous isolation of all three phases along with the neutral conductor, ensuring complete system protection & enhanced operational safety. The C Curve tripping characteristic makes it particularly suitable for circuits with moderate inrush currents such as motors, compressors, pumps, & HVAC systems.
How the Mechanism Works
This MCB provides reliable protection through continuous monitoring & automatic tripping:
• Continuously monitors current across all phases & neutral
• Trips during sustained overload conditions
• Instantly disconnects the circuit during short circuit faults
• Allows moderate inrush currents without nuisance tripping
• Simultaneously isolates all three phases & the neutral conductor
This ensures safe, stable, & efficient operation of high-load three phase electrical systems.
Technical Specifications
• Rated current: 63A
• Poles: Four pole (FP – 3 phase + neutral)
• Rated voltage: 415V AC
• Breaking capacity: 6kA
• Tripping curve: C Curve
• Function: Overload & short circuit protection
• Application: Very high load three phase circuits with inductive loads
Construction & Design
The MCB is engineered for durability & high performance:
• Four pole configuration for complete system isolation
• Compact modular construction for DIN rail mounting
• C Curve tripping optimized for moderate surge current loads
• Efficient arc extinguishing mechanism
• High-quality internal components for long-term reliability
Safety & Protection
• Protects against overload & short circuit faults
• Ensures full isolation of all phases & neutral
• Suitable for circuits with moderate inrush currents
• Prevents damage to wiring & connected equipment
• Enhances system safety & operational reliability
Mounting & Durability
• DIN rail mountable for easy installation
• Suitable for distribution boards & control panels
• Compact modular design for efficient panel space usage
• Designed for long mechanical & electrical life
• Reliable under continuous heavy load operation
Application Areas
• Industrial electrical systems
• Motor, pump, & compressor circuits
• HVAC & air conditioning systems
• Commercial & industrial installations
• Three phase distribution boards
Key Features
• 63A rated MCB for very high load applications
• Four pole (FP) configuration with neutral isolation
• 6kA breaking capacity
• C Curve for moderate inrush current circuits
• Reliable overload & short circuit protection
• Compact DIN rail mountable design
• Durable & heavy-duty construction
Applications
• Large motor & pump circuits
• HVAC & compressor systems
• Industrial machinery setups
• Commercial power distribution
• High-load electrical panels
FAQs
1. What does FP mean in this MCB?
Ans: FP (Four Pole) means the breaker disconnects all three phases along with the neutral conductor simultaneously.
2. What does C Curve indicate?
Ans: C Curve is suitable for circuits with moderate inrush currents such as motors, compressors, & pumps.
3. Where is a 63A FP MCB used?
Ans: It is used in very high load industrial & commercial three phase systems with inductive equipment.
4. What is the importance of 6kA breaking capacity?
Ans: It ensures the breaker can safely interrupt fault currents up to 6kA.
5. Does it isolate the neutral conductor?
Ans: Yes, the four pole design ensures complete isolation including the neutral conductor.
6. How is this MCB installed?
Ans: It is installed on a DIN rail inside a distribution board or control panel.
7. Why use an FP MCB?
Ans: An FP MCB ensures complete isolation of all phases & neutral, improving safety, system reliability, & operational control in three phase electrical systems.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +70°C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 100000 |
| No. of Poles | FP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz/60Hz |
| Rated Short-circuit Breaking Capacity | 6kA |
| Rated Impulse Voltage | 4kV |
| Current Rating | 63A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IS/IEC 60898-1 |
| Tripping Characteristic | C Curve |
| Length(mm) | 74.5 |
| Height(mm) | 87.3 |
| Breadth(mm) | 70 |
