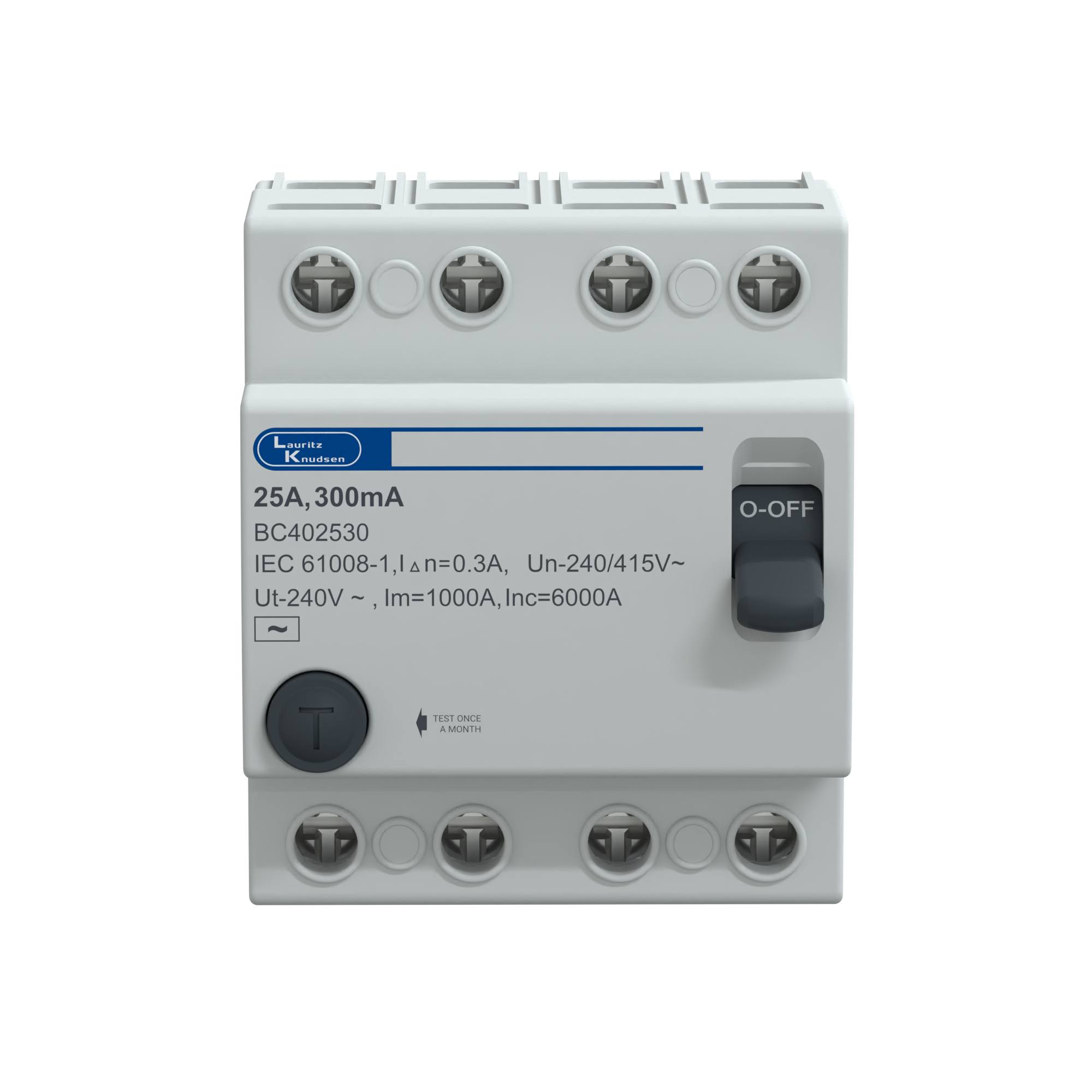

Lauritz Knudsen Tripper, RCCB, 25A | 4 Pole | 300mA | Finger proof IP20 terminals | 415V AC | ISI Certified
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Tripper RCCB 25A FP 415V AC 300mA is a robust Residual Current Circuit Breaker (RCCB) engineered for use in three phase electrical systems. It provides dependable protection against earth leakage faults, making it ideal for applications where fire prevention & upstream system safety are critical.
With a 25A current rating & a 300mA residual current sensitivity, this RCCB is designed primarily for detecting higher leakage currents that may lead to insulation failure or electrical fires. The four pole (FP) configuration ensures simultaneous disconnection of all three phases & the neutral conductor, delivering complete circuit isolation during fault conditions.
How the RCCB Works
This RCCB continuously monitors current balance across all phases & neutral:
• Detects imbalance caused by leakage current to earth
• Identifies abnormal current flow outside the intended circuit path
• Trips automatically when leakage exceeds 300mA
• Disconnects all three phases & neutral simultaneously
• Helps prevent fire hazards & protects electrical systems
This ensures safe & reliable operation in three phase installations.
Technical Specifications
• Rated current: 25A
• Poles: Four pole (FP – 3 phase + neutral)
• Rated voltage: 415V AC
• Residual current sensitivity: 300mA
• Function: Earth leakage protection
• Application: Fire protection & upstream safety circuits
Construction & Design
The RCCB is designed for long-term durability & efficient performance:
• Four pole design for complete phase & neutral isolation
• Compact modular construction
• DIN rail mountable for easy installation
• High precision tripping mechanism
• High-quality internal components for long service life
Safety & Protection
• Protects against earth leakage faults
• Designed for fire protection applications
• Reduces risk of insulation-related hazards
• Ensures full isolation of all phases & neutral
• Enhances electrical system safety & reliability
Mounting & Durability
• DIN rail mountable for quick installation
• Suitable for distribution boards & control panels
• Compact design for efficient panel space utilization
• Designed for long mechanical & electrical life
• Reliable under continuous operation
Application Areas
• Industrial & commercial electrical systems
• Main distribution & upstream protection circuits
• Fire protection installations
• Three phase electrical panels
• Automation & control systems
Key Features
• 25A rated RCCB for three phase applications
• Four pole (FP) configuration with full isolation
• 300mA earth leakage sensitivity for fire protection
• Accurate leakage detection & quick tripping
• Compact DIN rail mountable design
• Durable & reliable construction
Applications
• Upstream distribution protection
• Fire risk mitigation systems
• Industrial & commercial installations
• Electrical distribution panels
• Equipment & system safety circuits
FAQs
1. What is an RCCB?
Ans: An RCCB is a protective device that detects earth leakage currents & disconnects the power supply, but does not provide overload or short circuit protection.
2. What does 300mA sensitivity mean?
Ans: It means the RCCB trips when leakage current exceeds 300mA, mainly used for fire protection rather than personal safety.
3. What does FP mean?
Ans: FP (Four Pole) means the device disconnects all three phases along with the neutral simultaneously.
4. Does this RCCB provide overload protection?
Ans: No, RCCBs only provide earth leakage protection. An MCB is required separately for overload & short circuit protection.
5. Where is a 25A FP 300mA RCCB used?
Ans: It is used in three phase systems such as industrial panels, upstream distribution boards, & fire protection circuits.
6. Why use 300mA instead of 30mA RCCB?
Ans: 300mA RCCBs are designed for fire protection & system-level safety, while 30mA RCCBs are intended to protect against electric shock.
7. How is this RCCB installed?
Ans: It is installed on a DIN rail inside a distribution board or electrical panel for easy integration into electrical systems.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -5°C to +55°C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 50 Sq. mm (Rigid) 35 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20000 |
| No. of Poles | FP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Residual Making & Breaking capacity | 1kA |
| Rated Impulse Voltage | 4kV |
| Rated Conditional SC Current | 6kA |
| Current Rating | 25A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IS 12640-1 |
| Sensitivity | 300mA |
| Length(mm) | 77.1 |
| Height(mm) | 83 |
| Breadth(mm) | 71 |
Documents
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
