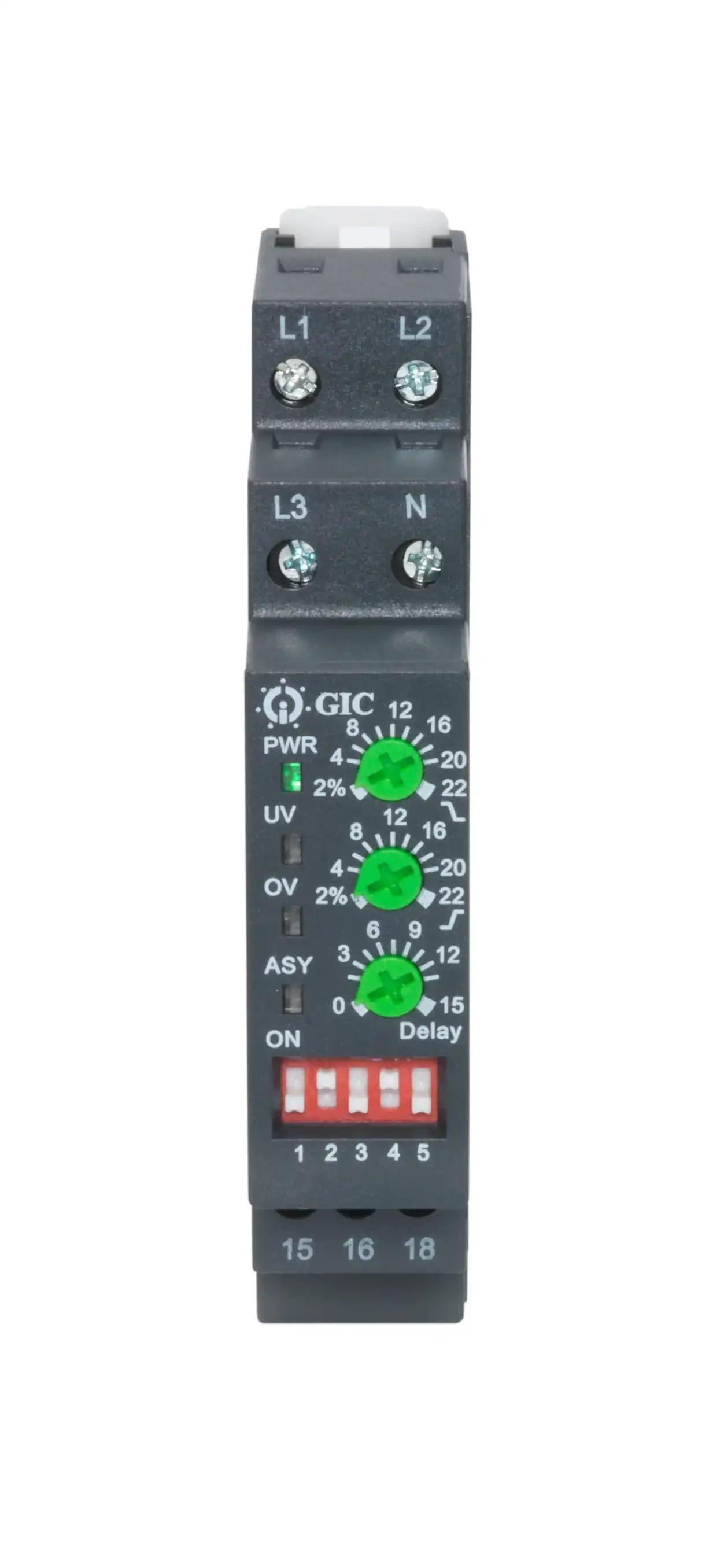

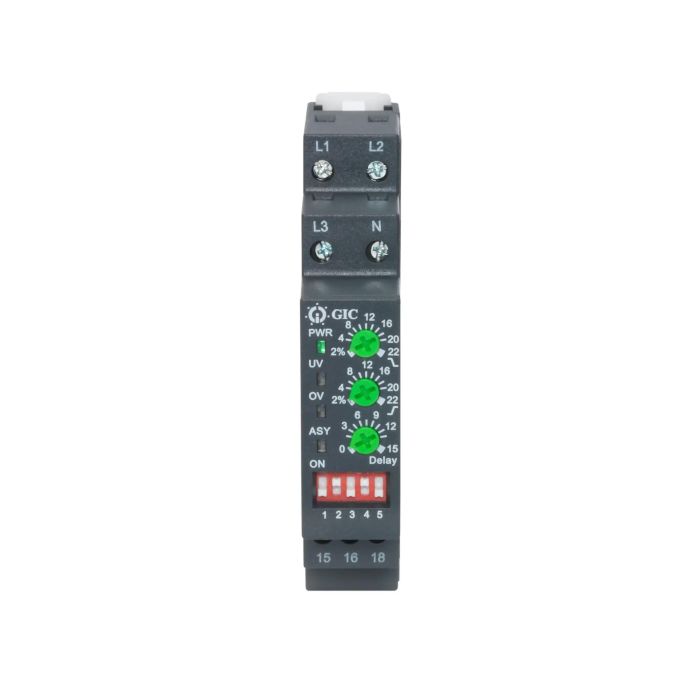

UV,OV,3P4W sel ONOFF del,10%asymCont app
MAG03D0424
₹2,035.00
₹1,440.78
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
MAG03D0424
UV,OV,3P4W sel ONOFF del,10%asymCont app
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
UV,OV,3P4W sel ONOFF del,10%asymCont app
₹2,035.00
₹1,440.78
Description
Monitoring Relay is a protective control device which is used to receive input voltage signals. It monitors the voltage signals and raises an output in case threshold is reached. Features Protects against Phase Loss, Phase Sequence & Asymmetry
1 C/O & 2 C/O Configuration
In built on delay of 500msec & OFF delay of 100m sec
Auxiliary Supply not needed
Designed for Industrial & Agricultural Applications
Product Details
| Rated operational voltage (Ue) | 120 to 277 VAC |
|---|---|
| Conformance to IEC standards | IEC-60947-5-1 |
| Internationals & Environemnt Compliances Conformance | CE, & RoHS |
| Width(mm) | 17.5mm |
| IP rating | 65 |
| time range | Selectable ON delay (0 to 15 Sec), Selectable OFF delay (0 to 15 sec) |
| no of contacts | 1 |
| Phase Symmetry | Phase Asymmetry (10% fixed) |
| Type of Sysytem (phases) | 3Ph, 4W |
| Type Of Mounting | Din Mounting |
| Type | Phase loss+ Phase Sequence+ Under Voltage + Over Voltage (UV:-2% to -22% of , OV: 2% to 22% of ) |
