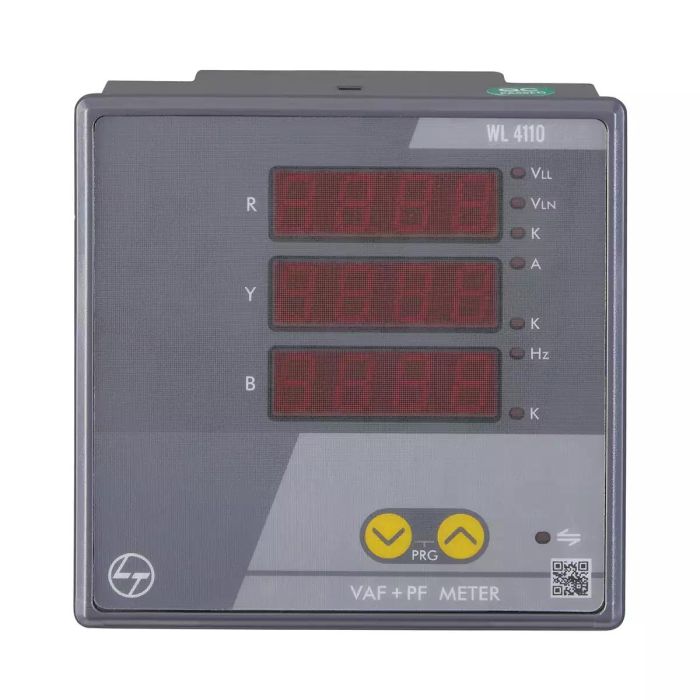

VAF + PF Digital Meter with RS485, Cl 1
VAF + PF meter with RS485, Cl 1
The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.
Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.
- Auto and manual scrolling.
- Password protection site selectable
- Accuracy Class 1 as per IEC 62053-21 and Class 0.5 as per IEC 62053-22
- True RMS measurement
- Field programmable CT, PT ratio
- Site selectable 1A/5A
- Phase wise and average display of voltage and current as per applicable meter
- Inbuilt selector switch for 3 phase models
- Site selectable for 3 Phase 4 wire, 3 Phase 3 wire, 1 phase
- Wide operating range of 80 to 300 V AC/DC auxiliary supply
- Suitable for 50/60 Hz
- Suitable with EMS, PMS, SCADA Softwares
This is a basic Multifinction Meter which is used to Measure the Voltage, Current, Frequency & Power Factor with Class 1 Accuracy.
Salient Propositions and Features:
Packing Inclusions: Meter, Manual, Calibration Report, Panel Fixing & Screws
This Meter can be used at Residential / Industrial Power Distribution Panel to measure basic Electrical Power Parameters.
-
Length(mm)58
-
Height(mm)96
-
Width(mm)96
-
CommunicationWith RS 485
-
Type of Measurement3 Phase 3 Wire, 3 Phase 4 Wire & 1 Phase
-
Type of Measurement - 2True Root Mean Square Values with 64 Samples per Cycle
-
Display & Resolution3 Line LED - 4 Digit
-
Weight (in grams)300
-
Phase1 & 3 Ph
-
Size96x96x58 mm
-
Accuracy ClassCL 1
-
Warranty1 Year
