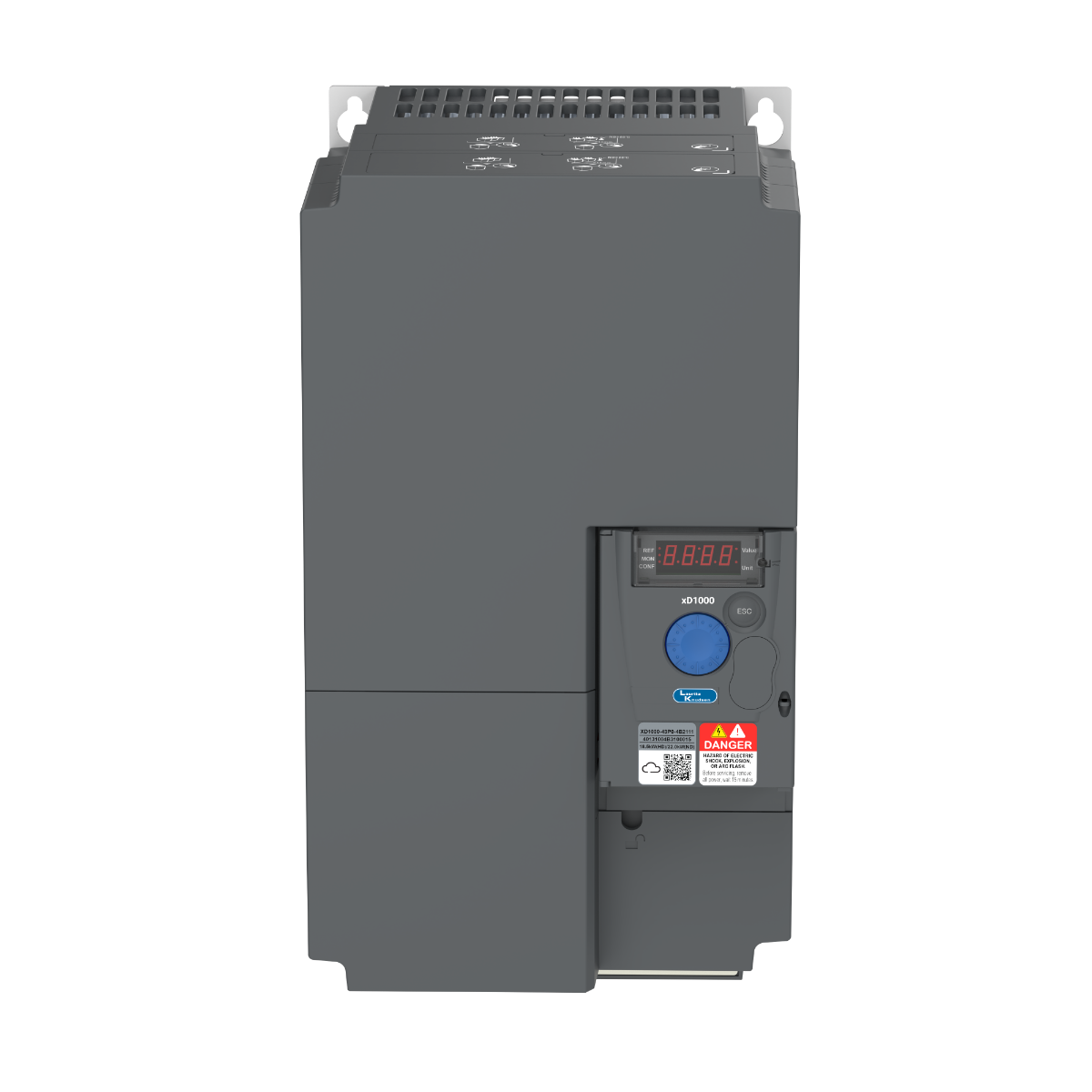

xD1000 Series 415V Drive 15.0kW(HD)/18.5kW(ND)

XD1000-36P0-4B2111
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

literature section Download Getting Started Guide The xD1000 Drive is a compact yet robust variable frequency drive (VFD) designed to meet the needs of various general-purpose applications such as pump, fan, conveyor & compressors cutting across Industry & Building segments. It is also capable to handle machine applications like F&B machines, packaging machines, woodworking machines, textile machines, special purpose machines etc. It offers a user-friendly interface that simplifies installation and operation, making it accessible for both experienced and novice users.

Standard features

  • Rated @ 55 degC (HD), @ 50 deg C (ND)
  • Transient overtorque 170%~200%
  • 4DIs, 2DOs,1AI, 1AO
  • Inbuilt PID with 4 Preset PID references, Sleep & Wakeup, Predictive speed
  • Auxiliary Pump control
  • Catch on the Fly
  • Skip Frequency
  • Automatic Restart
  • Current Limitation
  • 8 preset speeds
  • Auto restart
  • Cooling fan control
  • Fast stop ramp divider

Application & Segments

  • Pump, Fan, Conveyor & Compressor
  • Building HVAC loads - AHU, cooling tower fans & pumps, compressors, HVLS fans
  • Ceramic machine - Conveyors
  • Material handling - Long Travel, Cross Travel, Conveyors
  • F&B machines
  • Packaging machine
  • Wood working machine
  • Textile machine
  • Machine tools
  • Special purpose machine
  • Washing machine

Product Details

Rated Input Voltage 3 P 380-460 Vac
Communication Modbus RS 485
Warranty 1 Year
Display & Resolution Single Line LED - 4 Digit
Operational Frequency (Hz) 50/60Hz
IP Protection IP 20
Ambient temperature HD : -10 – +55 °C without derating ND : -10 – +50 °C without derating
Heavy Duty Output (kW) 15kW
Normal Duty Output kW 18.5
Rated Output Current (HD) 33A
Rated Output Current (ND) 36
Overloading Capacity (HD) Continuous current with 150% overload for 60 secs.
Overloading Capacity (ND) Continuous current with 110% overload for 60 secs.
Built-In Keypad 4 digit, 7 segment LED
Inputs/Outputs 4DIs, 2DOs,1AI, 1AO
Control Method V/F, Slip Compensation, V/F - Energy Saving, Quadratic V/F, Sensorless Vector Control (SVC)
Max Output Frequency 400Hz
Certifications CE, RoHS
Compliance standards IEC 61800-3 IEC 61800-5-1 IEC 60721-12
PCB Protection Conformal coating class 3S2 for Dust and class 3C3 for Chemical pollution, complying to IEC 60721-3-12
Height(mm) 180.0
Width(mm) 330.0
Depth(mm) 191.0
