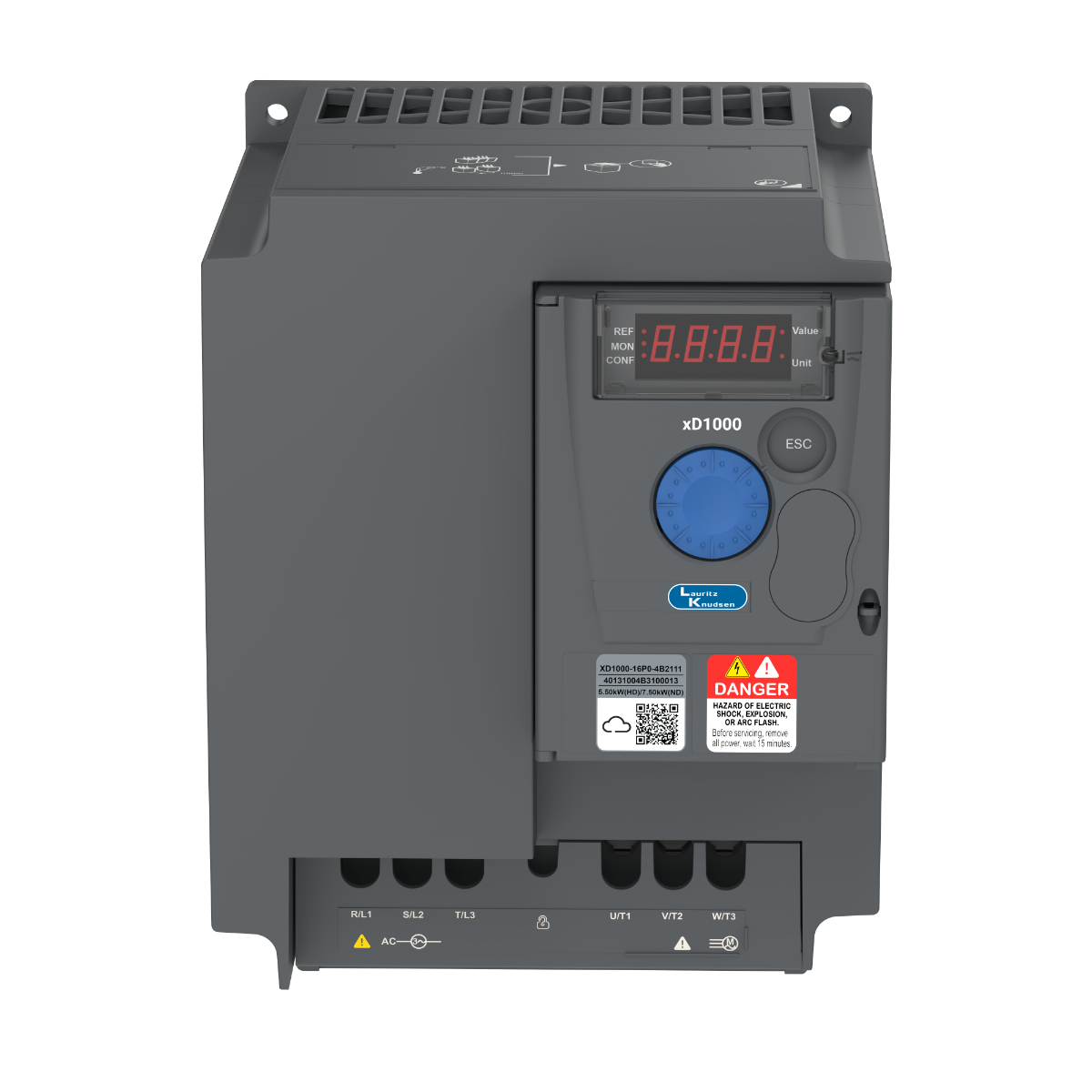

main product photo

xD1000 Series 415V Drive 3.00kW(HD)/4.00kW(ND)

XD1000-08P9-4B2111
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

literature section Download Getting Started Guide The xD1000 Drive is a compact yet robust variable frequency drive (VFD) designed to meet the needs of various general-purpose applications such as pump, fan, conveyor & compressors cutting across Industry & Building segments. It is also capable to handle machine applications like F&B machines, packaging machines, woodworking machines, textile machines, special purpose machines etc. It offers a user-friendly interface that simplifies installation and operation, making it accessible for both experienced and novice users.

Standard features

  • Rated @ 55 degC (HD), @ 50 deg C (ND)
  • Transient overtorque 170%~200%
  • 4DIs, 2DOs,1AI, 1AO
  • Inbuilt PID with 4 Preset PID references, Sleep & Wakeup, Predictive speed
  • Auxiliary Pump control
  • Catch on the Fly
  • Skip Frequency
  • Automatic Restart
  • Current Limitation
  • 8 preset speeds
  • Auto restart
  • Cooling fan control
  • Fast stop ramp divider

  • Application & Segments
    • Pump, Fan, Conveyor & Compressor
    • Building HVAC loads - AHU, cooling tower fans & pumps, compressors, HVLS fans
    • Ceramic machine - Conveyors
    • Material handling - Long Travel, Cross Travel, Conveyors
    • F&B machines
    • Packaging machine
    • Wood working machine
    • Textile machine
    • Machine tools
    • Special purpose machine
    • Washing machine

    Product Details

    Rated Input Voltage 3 P 380-460 Vac
    Communication Modbus RS 485
    Warranty 1 Year
    Display & Resolution Single Line LED - 4 Digit
    Operational Frequency (Hz) 50/60Hz
    IP Protection IP 20
    Ambient temperature HD : -10 – +55 °C without derating ND : -10 – +50 °C without derating
    Heavy Duty Output (kW) 3kW
    Normal Duty Output kW 4
    Rated Output Current (HD) 7.1A
    Rated Output Current (ND) 8.9
    Overloading Capacity (HD) Continuous current with 150% overload for 60 secs.
    Overloading Capacity (ND) Continuous current with 110% overload for 60 secs.
    Built-In Keypad 4 digit, 7 segment LED
    Inputs/Outputs 4DIs, 2DOs,1AI, 1AO
    Control Method V/F, Slip Compensation, V/F - Energy Saving, Quadratic V/F, Sensorless Vector Control (SVC)
    Max Output Frequency 400Hz
    Certifications CE, RoHS
    Compliance standards IEC 61800-3 IEC 61800-5-1 IEC 60721-7
    PCB Protection Conformal coating class 3S2 for Dust and class 3C3 for Chemical pollution, complying to IEC 60721-3-7
    Height(mm) 140.0
    Width(mm) 184.0
    Depth(mm) 151.0
