Lauritz Knudsen xD1000 Series 415V Drive 5.50kW(HD)/7.50kW(ND) | Auto Restart | Torque boost | Cooling Fan Control
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product

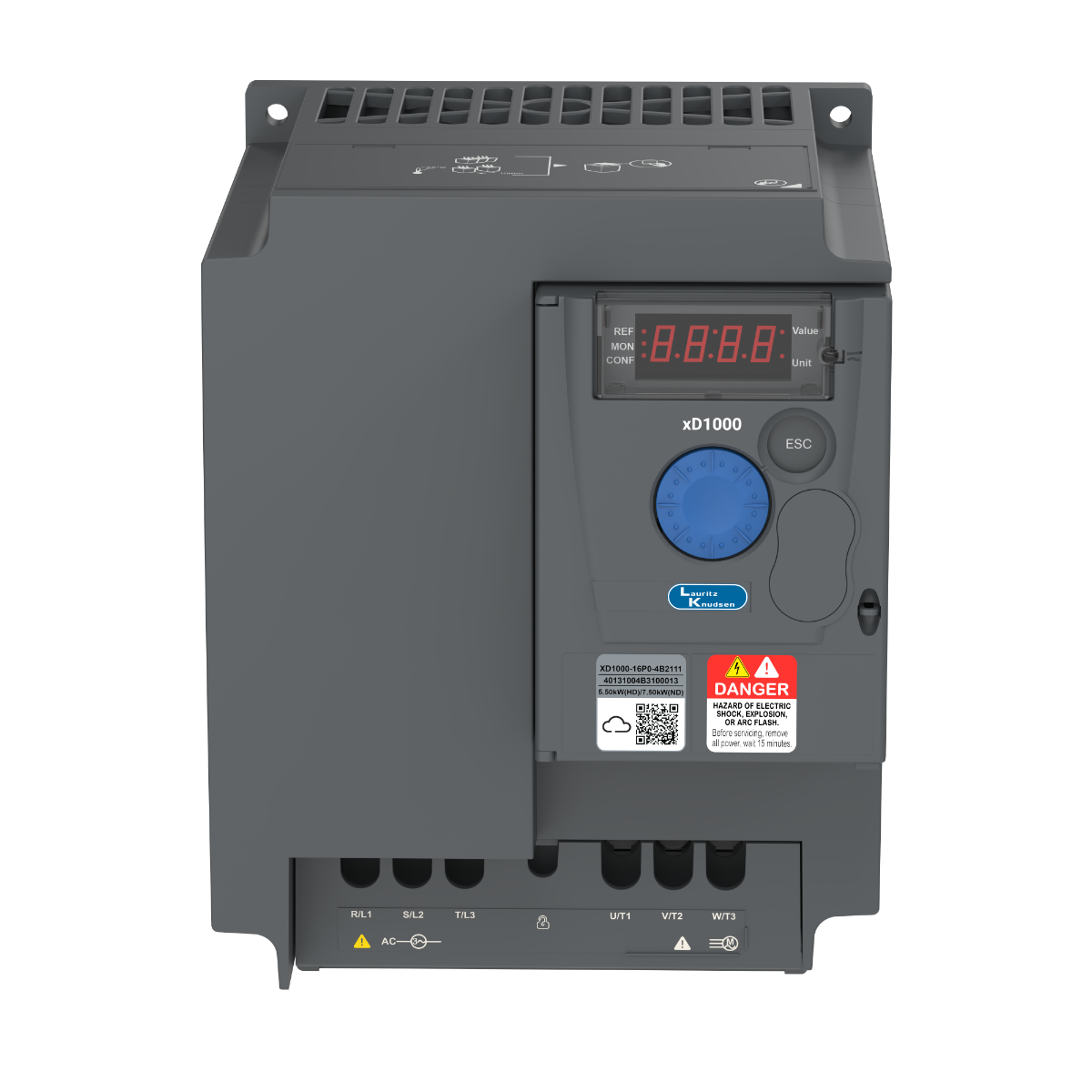

The Lauritz Knudsen XD1000 Series 415V Drive 5.5kW Heavy Duty / 7.5kW Normal Duty is an advanced variable frequency drive (VFD) engineered for efficient motor control in demanding industrial environments. Designed to optimize motor performance, the drive provides precise speed regulation, controlled acceleration & deceleration, & enhanced operational efficiency across a wide range of industrial applications.
With a Heavy Duty rating of 5.5kW & a Normal Duty rating of 7.5kW, the XD1000 Series drive is suitable for pumps, fans, blowers, conveyors, compressors, mixers, processing machinery, material handling systems, packaging equipment, & OEM machinery. By matching motor speed to application requirements, it helps reduce energy consumption while improving process performance & equipment reliability.
Its advanced control features, compact construction, & industrial-grade components make it an ideal solution for applications requiring accurate motor control, flexible operation, & long-term reliability.
How the Mechanism Works
Power electronics convert the incoming supply into a controlled output, varying motor voltage & frequency to regulate speed, torque, & acceleration.
Electrical Configuration
Product Type: Variable Frequency Drive (VFD)
• Series: XD1000
• Heavy Duty Rating: 5.5kW
• Normal Duty Rating: 7.5kW
• Operating Voltage: 415V
• Function: Motor Speed Control & Energy Management
• Motor Compatibility: AC Induction Motors
• Application: Industrial Automation & Motor Control
• Installation Type: Panel Mount
• Construction & Design
Construction & Design
The power stage, control electronics, cooling system, user interface, & terminals are integrated into a compact enclosure for controlled motor operation.
Safety & Protection
Provide the specified upstream protection, earthing, isolation, & cooling, & allow stored electrical energy to discharge before service.
Mounting & Durability
Install in the specified orientation with adequate ventilation, clearances, cable segregation, & environmental protection for reliable thermal performance.
Application Domains
Manufacturing Plants
• Industrial Automation Systems
• Water Treatment Facilities
• HVAC Systems
• Conveyor Systems
• Pumping Applications
• Processing Equipment
• OEM Machinery
Key Features
• XD1000 Series AC drive
• 5.5kW Heavy Duty rating
• 7.5kW Normal Duty rating
• 415V operation
• Variable frequency motor control
• Energy-efficient operation
• Smooth motor starting & stopping
• Industrial-grade construction
• Compact design
• Long service life
Applications
• Pump control systems
• Fan & blower applications
• Conveyor installations
• Industrial machinery
• Process automation
• Material handling systems
• Packaging equipment
• Energy-efficient motor control
FAQs
1. What is the XD1000 Series drive used for?
Ans: It is used for controlling the speed, torque, & performance of AC motors in industrial & commercial applications.
2. What are the power ratings of this drive?
Ans: The drive is rated for 5.5kW in Heavy Duty applications & 7.5kW in Normal Duty applications.
3. What voltage does this drive operate on?
Ans: It is designed for 415V operation.
4. What are the benefits of using a VFD?
Ans: A VFD improves energy efficiency, enables precise speed control, reduces mechanical stress, & enhances process productivity.
5. Is this drive suitable for pumps & fans?
Ans: Yes, it is ideal for pumps, fans, blowers, & other variable-speed motor applications.
6. Can it be installed in industrial control panels?
Ans: Yes, the drive is designed for panel-mounted industrial installations.
7. Does it help reduce energy consumption?
Ans: Yes, optimized motor control helps lower energy usage & reduce operating costs.
8. Does the drive require frequent maintenance?
Ans: No, its robust industrial design & high-quality components ensure reliable long-term operation with minimal maintenance under normal operating conditions.
Overview
| Rated Input Voltage | 3 P 380-460 Vac |
|---|---|
| Rated Output Current (ND) | 16 |
| Operational Frequency (Hz) | 50/60Hz |
| Communication | Modbus RS 485 |
| Width(mm) | 184.0 |
| Height(mm) | 140.0 |
| Depth(mm) | 151.0 |
| Warranty | 1 Year |
| Display & Resolution | Single Line LED - 4 Digit |
| IP Protection | IP 20 |
| Ambient temperature | HD : -10 – +55 °C without derating ND : -10 – +50 °C without derating |
| Heavy Duty Output (kW) | 5.50kW |
| Normal Duty Output kW | 7.5 |
| Rated Output Current (HD) | 12.6A |
| Overloading Capacity (HD) | Continuous current with 150% overload for 60 secs. |
| Overloading Capacity (ND) | Continuous current with 110% overload for 60 secs. |
| Built-In Keypad | 4 digit, 7 segment LED |
| Inputs/Outputs | 4DIs, 2DOs,1AI, 1AO |
| Control Method | V/F, Slip Compensation, V/F - Energy Saving, Quadratic V/F, Sensorless Vector Control (SVC) |
| Max Output Frequency | 400Hz |
| Certifications | CE, RoHS |
| Compliance standards | IEC 61800-3 IEC 61800-5-1 IEC 60721-9 |
| PCB Protection | Conformal coating class 3S2 for Dust and class 3C3 for Chemical pollution, complying to IEC 60721-3-9 |
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
