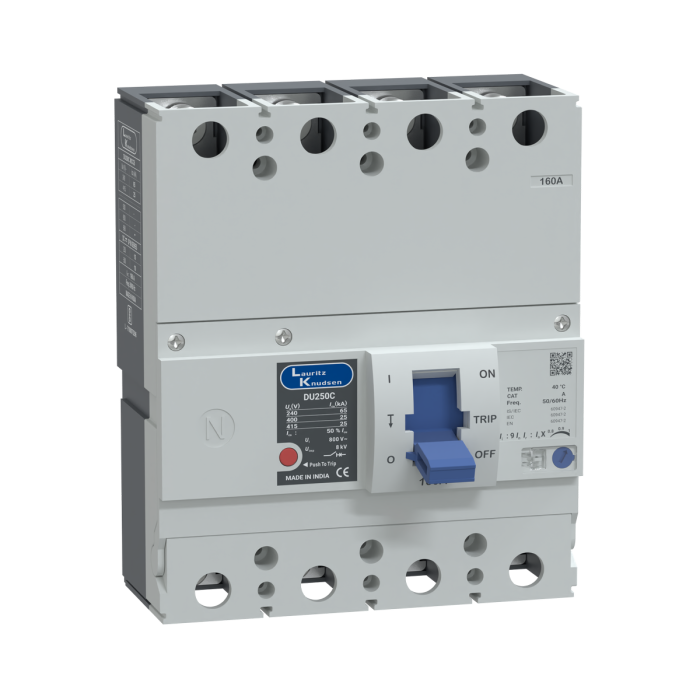

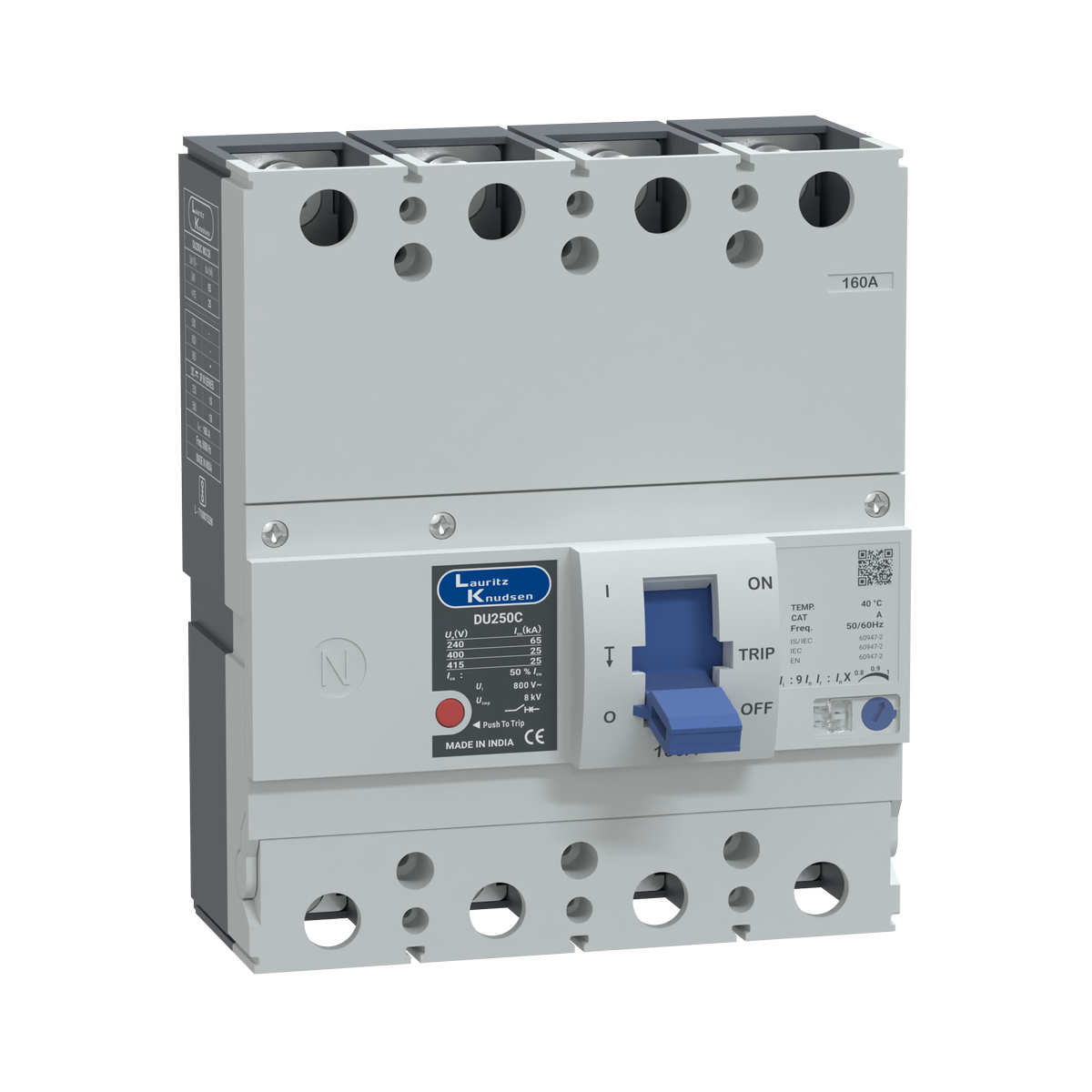

Lauritz Knudsen DU250C, MCCB, 4 Pole, 415V AC, 25kA Breaking Capacity, 160A | Thermal-Magnetic Release| 50/60 Hz | Compact Size | Spreader Terminals are Included
SKU :
CM90634OOMO
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CM90634OOMO
Lauritz Knudsen DU250C, MCCB, 4 Pole, 415V AC, 25kA Breaking Capacity, 160A | Thermal-Magnetic Release| 50/60 Hz | Compact Size | Spreader Terminals are Included
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹13,100.00
₹10,950.40
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Estimated delivery:
Out of stock
Lauritz Knudsen DU250C, MCCB, 4 Pole, 415V AC, 25kA Breaking Capacity, 160A | Thermal-Magnetic Release| 50/60 Hz | Compact Size | Spreader Terminals are Included
₹13,100.00
₹10,950.40
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Lauritz Knudsen The DU Series, a new generation of MCCBs, stands out due to its state-of-the-art design, contemporary user-friendly features, ergonomics, aesthetics and compactness.
- DU Series complies with the latest standards like IS/IEC 60947-2, IEC 60947-2 & EN 60947-2.
- The range is specially designed for tropical conditions, ensuring reliable performance at high ambient and humid environments.
- The range can satisfy the most demanding system requirements.
- The DU Series, having a wide range of accessories, ensures operational safety, reliability and versatility.
- The products conform to international standards, carry CE marking.
Overview
| Rated Operational Current (A) | 160A |
|---|---|
| No. of Poles | 4P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | Thermal Magnetic |
| Rated Short Circuit Breaking capacity Icu(kA) | 25kA |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 50% |
| Ambient temperature | -5°C to 55°C |
| Conformance to Standards | IS 60947-2, IEC 60947-2 & EN 60947-2 |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 5000 |
| Mechanical Life (Operating Cycles) | 15000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 140 |
| Height(mm) | 165 |
| Depth(mm) | 60 |
| Discount Percentage | Between 0-10 % |
