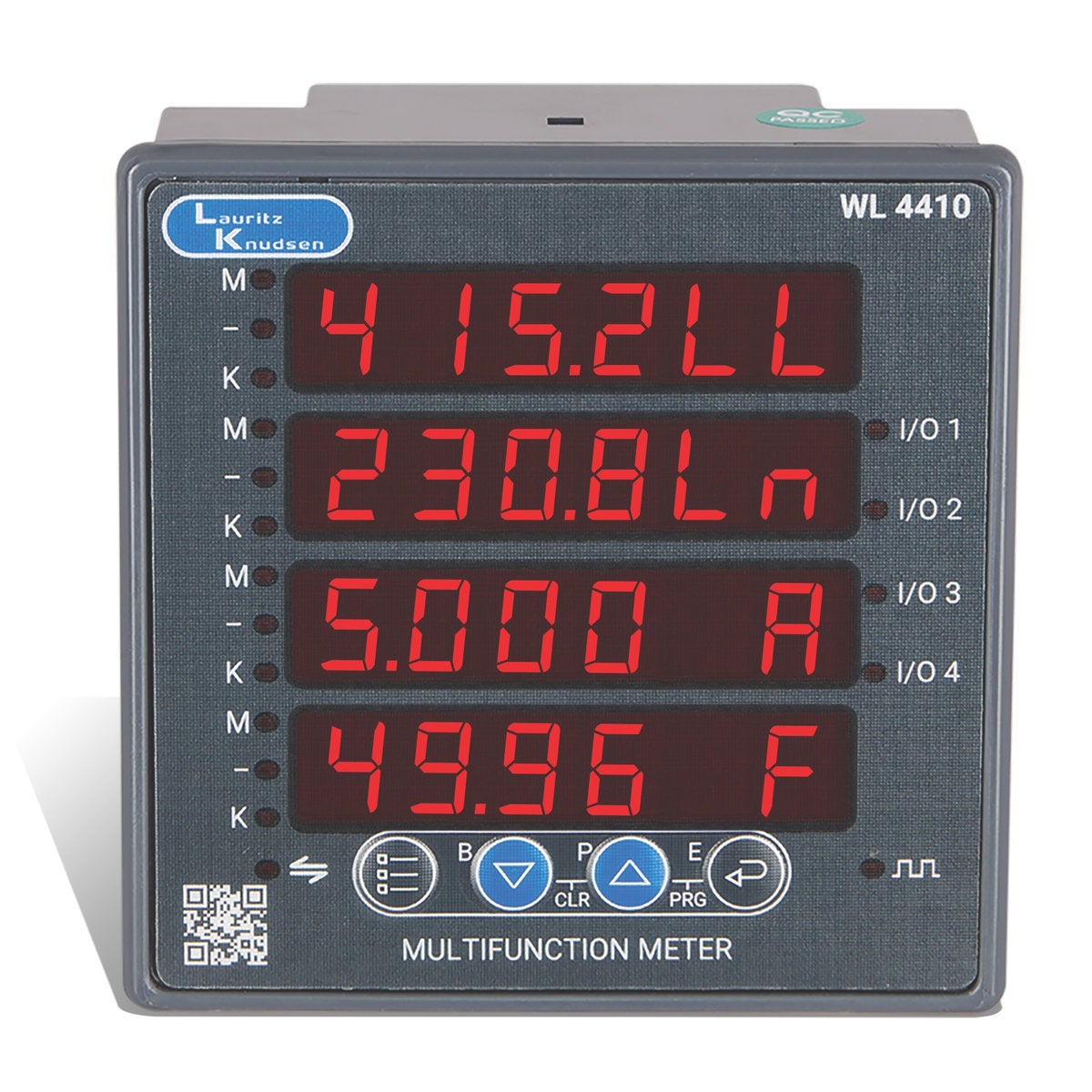

Lauritz Knudsen 4410 Series Basic Multifunction Meter (MFM) | Digital LED meter CL 1 with RS 485 | CT/PT site programmable
SKU :
WL441011OOOO
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
WL441011OOOO
Lauritz Knudsen 4410 Series Basic Multifunction Meter (MFM) | Digital LED meter CL 1 with RS 485 | CT/PT site programmable
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹11,050.00
₹9,746.80
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Estimated delivery:
Out of stock
Disclaimer:
Following the brand transition from L&T Switchgear to Lauritz Knudsen effective 29 May 2024, products supplied by sellers may carry either the L&T or Lauritz Knudsen brand name depending on stock availability.
Show More
Lauritz Knudsen 4410 Series Basic Multifunction Meter (MFM) | Digital LED meter CL 1 with RS 485 | CT/PT site programmable
₹11,050.00
₹9,746.80
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Accuracy Class 1 as per IEC 62053-21 and Class 0.5, 0.5S, 0.2, 0.2S as per IEC 62053-22
- True RMS measurement
- Expert in Load monitoring
- THD for Voltage and Current
- Password protection provision for security
- Maximum Demand measurement with Real Time Clock
- Auto scrolling and freeze mode for constant single page viewing available
- Terminals with sealing provision (optional)
- My Favourite screen option for user selectable parameters in LCD series
- Site selectable for 3 Phase 4 wire, 3 Phase 3 wire, 1 Phase
- Direct access key for Basic parameters, Power and Energy parameters
- Suitable with EMS, PMS, SCADA Softwares
Lauritz Knudsen This Multifunction Meter having a feature of Measuring the Voltage, Current, Frequency, Power, Energy, Rotation per Minute, No. of inturreption, % Voltage & Current THD and Min & Max values of all Basic Parameters.
Salient Propositions and Features:
Packing Inclusions: Meter, Manual, Calibration Report, Panel Fixing & Screws
Overview
| Length(mm) | 58 |
|---|---|
| Height(mm) | 96 |
| Width(mm) | 96 |
| Communication | With RS 485 |
| Type of Measurement | 3 Phase 3 Wire, 3 Phase 4 Wire & 1 Phase |
| Type of Measurement - 2 | True Root Mean Square Values with 128 Samples per Cycle |
| Display & Resolution | 4 Line LED - 4 Digit for Instantaneous & 6 Digit Cumulative |
| Weight (in grams) | 300 |
| Phase | 1 & 3 Ph |
| Size | 96x96x58 mm |
| Accuracy Class | CL 1 |
| Warranty | 1 Year |
