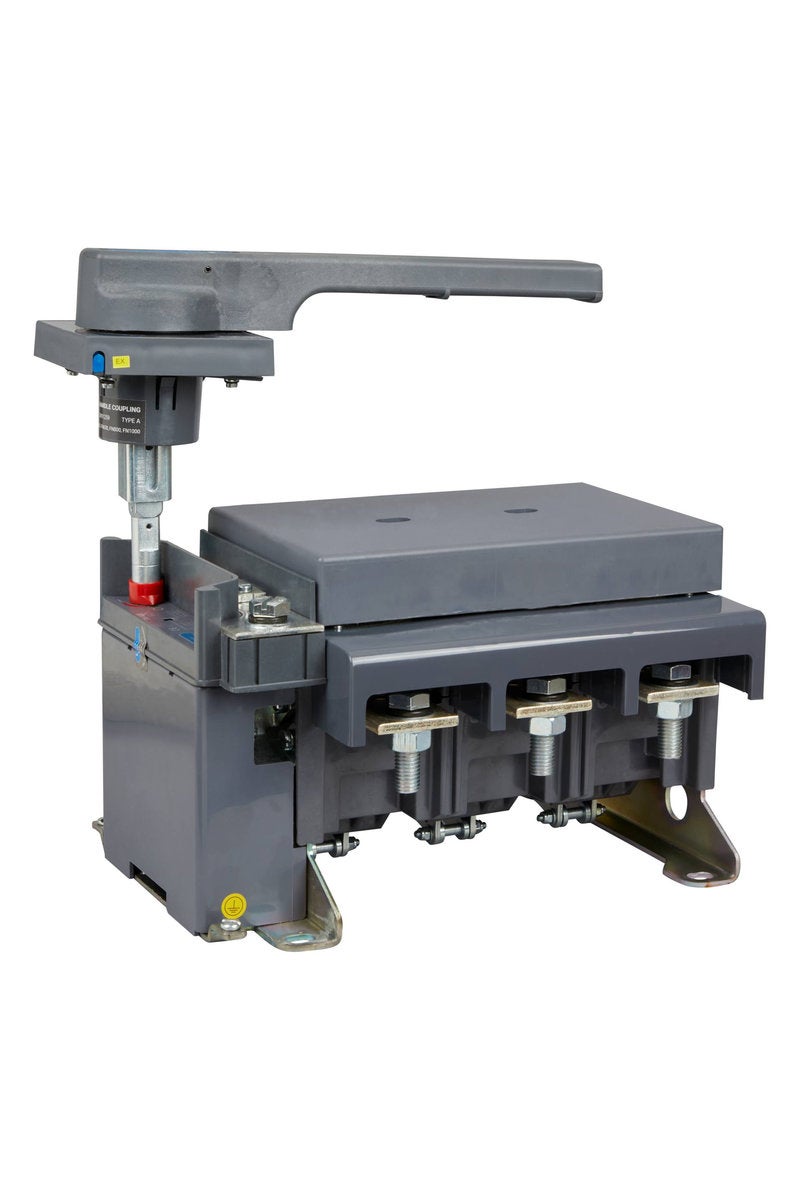

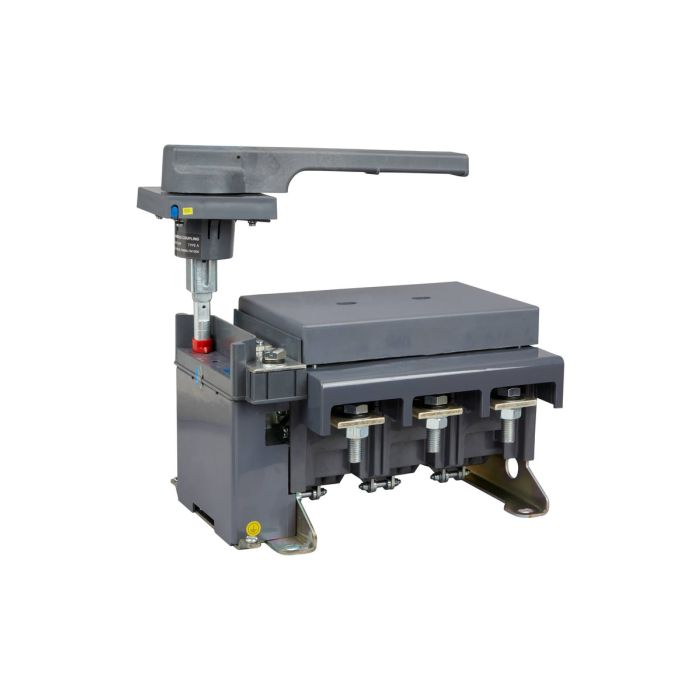

Lauritz Knudsen FN SD (Switch Disconnector) 63A | 4 Pole / TPN | Open Execution| Strong & durable construction
SKU :
SK95540OOOO
Lauritz Knudsen FN SD (Switch Disconnector) 63A | 4 Pole / TPN | Open Execution| Strong & durable construction
SKU: SK95540OOOO
Images:
Image 360:
How to video:
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
SK95540OOOO
Lauritz Knudsen FN SD (Switch Disconnector) 63A | 4 Pole / TPN | Open Execution| Strong & durable construction
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹4,130.00
₹3,341.76
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Estimated delivery:
Out of stock
Lauritz Knudsen FN SD (Switch Disconnector) 63A | 4 Pole / TPN | Open Execution| Strong & durable construction
₹4,130.00
₹3,341.76
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Terminal Shrouds on both line and load side
- Phase barriers
- High clearances and creepage distances
- High ground clearance
- FN SD range: 32A to 1000A
- CZ SD Range: 125A to 630A
- C-Line SD Range: 1000A to 2000A
- AC-23A utilization category for entire range
- Quick-make /Quick-break mechanism
- Suitable for Aluminum termination
- Door interlocking in ON position with defeat feature
Overview
| Rated Operational Current (A) | 63A |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Utilization Category | AC-23A |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 15000 |
| Rated Insulation Voltage Ui (V) | 690V |
| Short Time Withstand for 1sec (kA) | 1.5 |
| Rated Operational Power (kW) | 29 |
| Rated Breaking Capacity@AC-23A (A) | 504 |
| Rated Making Capacity@AC-23A (A) | 630 |
| Version | Open Execution |
| No. of Poles | TPN |
| Maximum Al termination (sq.mm) | 35 |
| Mounting positions | All Orientations |
| Standard Accessories | Terminal Shrouds, Phase Barriers, Extended handle with shaft |
| Pollution Degree | 3 |
| Discount Percentage | Between 0-10 % |
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects...
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Description
- Terminal Shrouds on both line and load side
- Phase barriers
- High clearances and creepage distances
- High ground clearance
- FN SD range: 32A to 1000A
- CZ SD Range: 125A to 630A
- C-Line SD Range: 1000A to 2000A
- AC-23A utilization category for entire range
- Quick-make /Quick-break mechanism
- Suitable for Aluminum termination
- Door interlocking in ON position with defeat feature
Overview
| Rated Operational Current (A) | 63A |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 |
| Utilization Category | AC-23A |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 15000 |
| Rated Insulation Voltage Ui (V) | 690V |
| Short Time Withstand for 1sec (kA) | 1.5 |
| Rated Operational Power (kW) | 29 |
| Rated Breaking Capacity@AC-23A (A) | 504 |
| Rated Making Capacity@AC-23A (A) | 630 |
| Version | Open Execution |
| No. of Poles | TPN |
| Maximum Al termination (sq.mm) | 35 |
| Mounting positions | All Orientations |
| Standard Accessories | Terminal Shrouds, Phase Barriers, Extended handle with shaft |
| Pollution Degree | 3 |
| Discount Percentage | Between 0-10 % |
