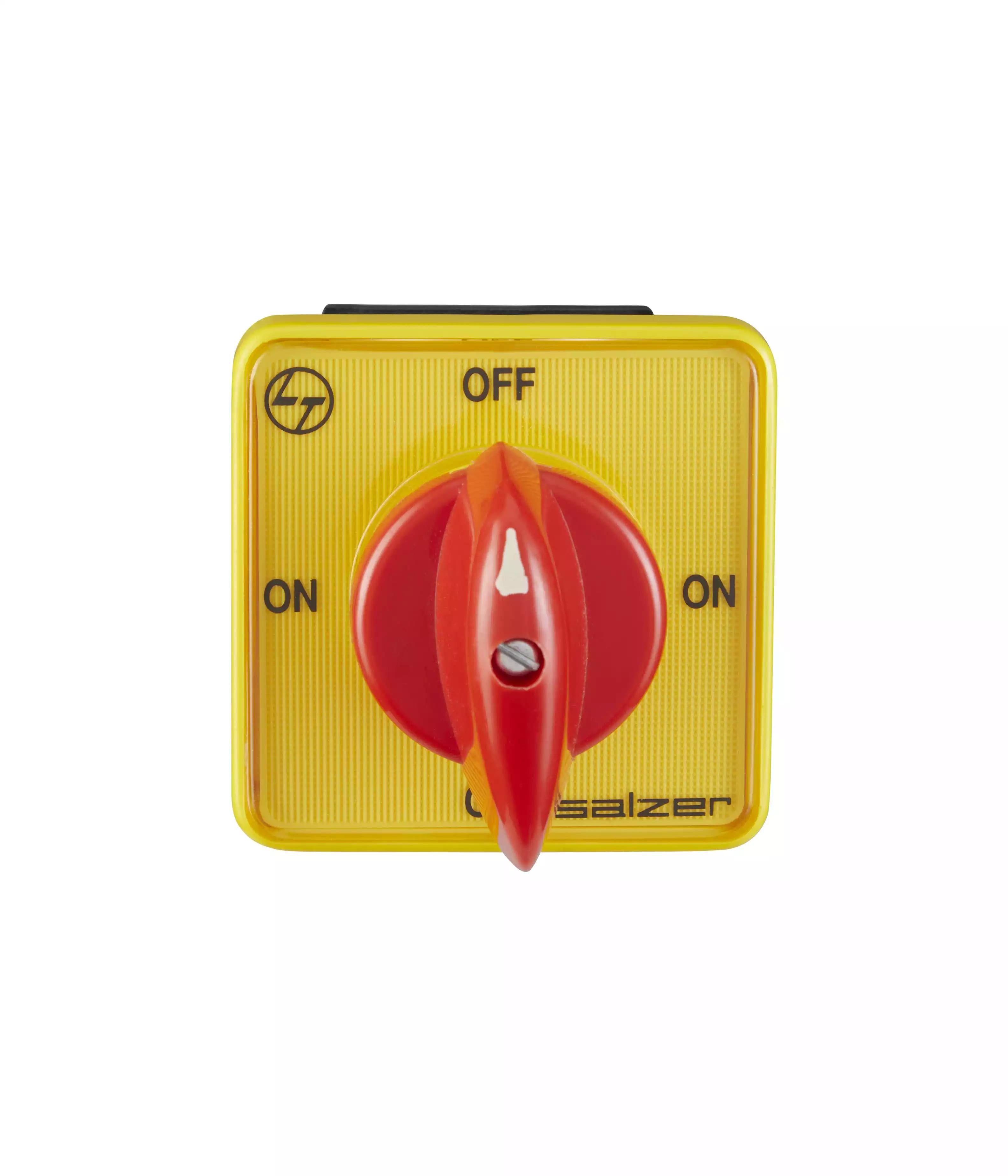

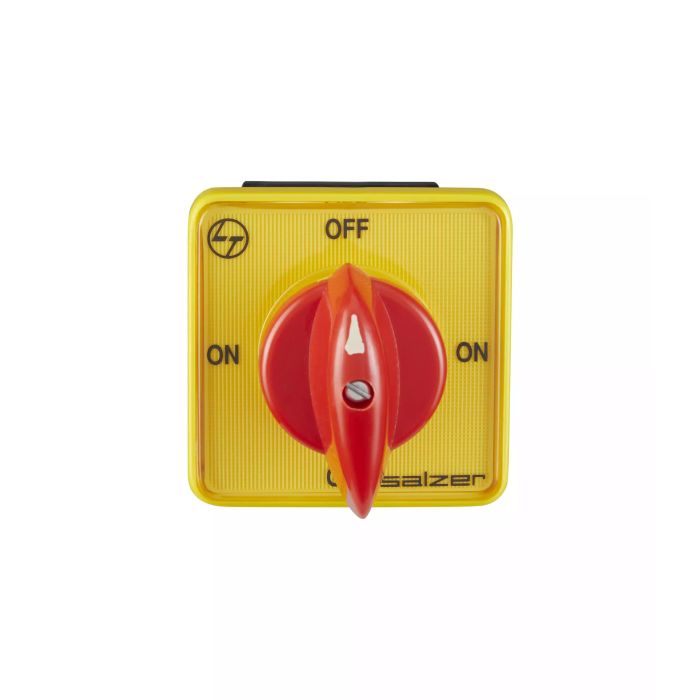

Isolator Switch 100A 3Pole on off

61197SKB03TDYR
Be the first one to review this.

Incl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

Isolator Switch Isolator switches are mainly used for powering up circuits such as mains and instrumentation circuits of a motor. Isolator with spring return is used for momentary energization of a circuit. Features: • Wide range from 1 Pole to 12 Poles • Available from 6A to 400A • Spring return option available upto 4 poles • Isolators also come with pre close contacts and is used for safety circuits for connecting neutral and earth lines. • Rated for AC1/AC21 applications. • Available in 60 degree, 90 degree and 90 degree full rotation Advantages : Easy to mount. Compact design No maintenance Economical Applications: Switching of main / control and instrumentation circuits motor ON-OFF,control panel switches, plant and industrial engineering, commercial and construction vehicles, radio frequency selection, voice and data communication, entertainment systems, automatic climate control.

Product Details

Conformance to IEC standards IEC-60947-1/3/5/UL508
Internationals & Environemnt Compliances Conformance CE & ROHS
Type Isolator Switch
No. of Poles 3
Current Rating 100A
Color Yellow Front Plate Red Knob
IP rating 65
No of Ways on off
Knob or Handle Tear Drop
Mounting Style Standard Mounting
With OFF or Without OFF With OFF
Rotation 90 degree complete rotation

Related Posts

No Related Posts

Seller Information

Documents

Extended Warranty

Reviews

Write Your Own Review
This is a required field
You're reviewing: Isolator Switch 100A 3Pole on off
* Required Field
loader
Loading...

check-circle You submitted your review for moderation.

The 100 Amp Isolator Switch 3 Pole is an essential protective device in electrical circuits, designed to disconnect the power supply safely. Its primary function is to isolate electrical equipment during maintenance or emergencies, ensuring complete disconnection of all three phases in a circuit. The importance of this 3 pole isolator switch lies in its ability to protect both equipment and personnel by preventing accidental electrical contact and overcurrent conditions. This makes it a crucial component in both residential and industrial electrical systems.

Features and Benefits

Technical Specifications

Applications

The 100Amp isolator3 phase is ideal for a range of applications, including residential lighting circuits, low-power devices, and specific industrial equipment. It is particularly effective in environments where electrical overload and short circuits are a concern, providing a reliable solution to protect both infrastructure and personnel.

Installation and Usage

Installing the Isolator Switch 100A 3 Pole On/Off is straightforward and can be completed with basic tools. Simply follow the wiring diagram provided, ensuring that the power supply is completely disconnected before starting.

Price and Availability

You can find these isolators at the most competitive prices at our Smartshop. Also, if you wish to buy in bulk, contact our sales team for special offers.
