Lauritz Knudsen Double Throw with Spring Return Switches, 16A | 1 Pole | 2 way with OFF Spring Return | High‑Voltage DC Isolator
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen Double Throw with Spring Return Switches, 16A | 1 Pole | 2 way with OFF Spring Return | High‑Voltage DC Isolator
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen Isolator Switch 16A 1 Pole 2-Way is a high-quality switching device engineered for safe electrical isolation & controlled circuit selection. Designed for low-voltage electrical systems, it allows operators to manually switch between two circuit paths while providing dependable electrical isolation & operational safety.
Featuring a 16A current rating, 1 Pole configuration, & 2-Way operation, this switch is suitable for electrical control panels, distribution boards, instrumentation systems, automation equipment, & light industrial applications where reliable switching & isolation are required.
Built using durable materials & precision-engineered contacts, the switch delivers consistent performance, smooth operation, & long service life under normal operating conditions.
How the Mechanism Works
The product functions by:
• Providing manual ON/OFF & circuit selection control
• Switching a single electrical conductor between two positions
• Supporting safe electrical isolation procedures
• Allowing controlled circuit transfer operations
• Improving electrical system flexibility
• Enhancing operational safety during maintenance
• Delivering stable electrical connectivity
• Maintaining dependable switching performance
It serves as a practical electrical control solution for applications requiring manual circuit selection & isolation.
Electrical Configuration
• Product Type: Isolator Switch
• Current Rating: 16A
• Pole Configuration: 1 Pole
• Switch Type: 2-Way
• Operation: Manual Switching
• Application: Circuit Selection & Electrical Isolation
• Installation Type: Control Panel & Electrical Installation
• Suitable For: Low-Voltage Electrical Systems
• Catalog Number: 61361SCB03TDYR
Construction & Design
Designed for dependable switching applications:
• Robust switching mechanism
• 16A current carrying capacity
• 1-pole switching configuration
• Durable electrical contacts
• Smooth switching operation
• Compact installation design
• Reliable mechanical construction
• Long operational lifespan
Safety & Protection
• Reliable circuit isolation
• Safe switching operation
• Enhanced electrical safety
• Improved maintenance protection
• Stable electrical performance
• Durable contact reliability
• Reduced operational interruptions
• Long service life
Mounting & Durability
• Suitable for electrical panels & control systems
• Compact & space-saving design
• Durable construction for long-term use
• Reliable mechanical operation
• High-quality manufacturing standards
• Minimal maintenance requirements
• Suitable for residential & commercial environments
• Designed for continuous operation
Application Domains
• Residential Buildings
• Commercial Buildings
• Offices
• Control Panels
• Automation Systems
• Instrumentation Systems
• Educational Institutions
• Light Industrial Facilities
Key Features
• Isolator switch
• 16A current rating
• 1 Pole configuration
• 2-Way operation
• Reliable circuit isolation
• Safe electrical switching
• Durable contact system
• Compact installation design
• Smooth operation
• Long service life
Applications
• Electrical control panels
• Circuit isolation systems
• Instrumentation circuits
• Automation systems
• Control circuit applications
• Commercial electrical installations
• Industrial control systems
• Electrical maintenance operations
FAQs
1. What is the 61361SCB03TDYR Isolator Switch used for?
Ans: It is used for electrical isolation & manual switching between circuit paths in low-voltage electrical systems.
2. What is the current rating of this switch?
Ans: The switch is rated at 16A.
3. What does 1 Pole mean?
Ans: A 1 Pole switch controls & switches a single electrical conductor within a circuit.
4. What does 2-Way operation mean?
Ans: It allows switching between two selectable circuit positions or paths.
5. Where can this switch be installed?
Ans: It can be installed in control panels, automation systems, electrical installations, instrumentation systems, & commercial facilities.
6. Is it suitable for circuit isolation applications?
Ans: Yes, it is designed to provide reliable electrical isolation & controlled switching functionality.
7. What are the advantages of an isolator switch?
Ans: It improves electrical safety, enables safe maintenance procedures, provides reliable circuit control, & enhances operational flexibility.
8. Does it require frequent maintenance?
Ans: No, its durable construction & reliable switching mechanism provide long-term, low-maintenance performance under normal operating conditions.
Overview
| Conformance to IEC standards | IEC-60947-1/3/5/UL508 |
|---|---|
| Internationals & Environemnt Compliances Conformance | CE & ROHS |
| Type | Isolator Switch |
| No. of Poles | 1 |
| Current Rating | 16A |

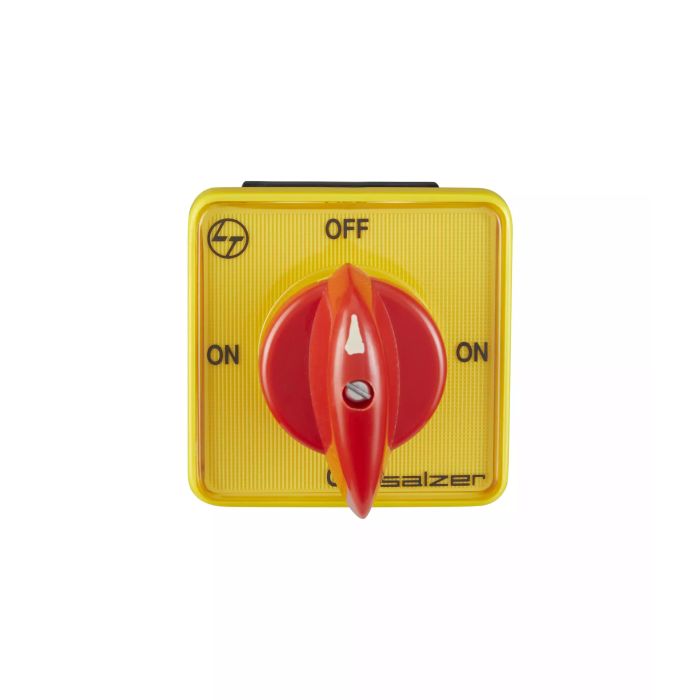

| Color | Yellow Front Plate Red Knob |
| IP rating | 65 |
| No of Ways | 2 Way |
| Knob or Handle | Tear Drop |
| Mounting Style | Standard Mounting |
| With OFF or Without OFF | With OFF |
