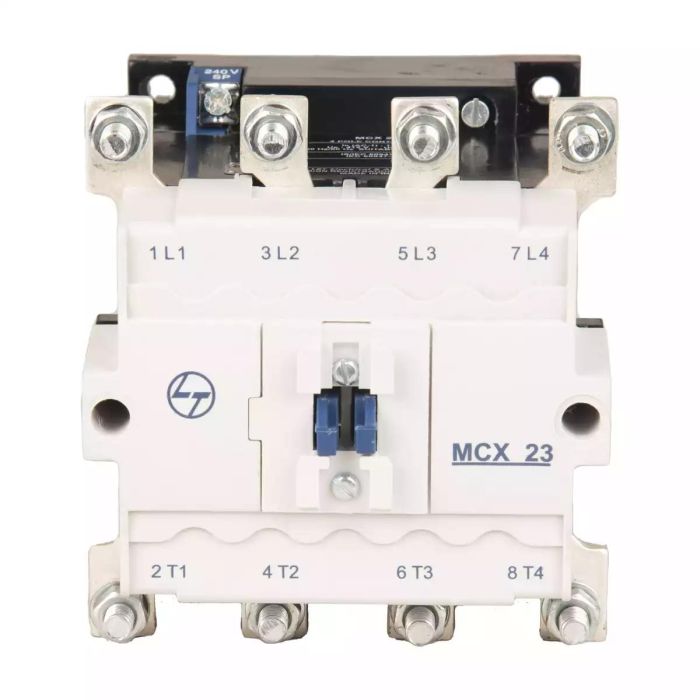

Lauritz Knudsen MCX Contactor 130A 4P 415V AC AC-1 240V AC Coil 50/60 Hz
SKU :
CS97018BOOO
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CS97018BOOO
Lauritz Knudsen MCX Contactor 130A 4P 415V AC AC-1 240V AC Coil 50/60 Hz
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹13,780.00
₹13,008.32
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Estimated delivery:
Out of stock
Lauritz Knudsen MCX Contactor 130A 4P 415V AC AC-1 240V AC Coil 50/60 Hz
₹13,780.00
₹13,008.32
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Lauritz Knudsen MCX range of 4 pole contactors is available from 16A to 800A AC-1.
- The contactors are widely used in conjunction with auto source transfer controller for transfer of power from mains to backup supply.
Overview
| Ambient temperature | -20 to 60 degree C |
|---|---|
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 690V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 240 V AC |
| Rated operational current at 415V | 130A (AC1) |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 4P |
| Height(mm) | 109 |
| Width(mm) | 103 |
| Depth(mm) | 120.5 |
| Coil Operating band %Uc (Pick up) | 80 - 110 % |
| Coil Operating band %Uc (Drop off) | 40 - 60 % |
| Pick up VA consumption | 190VA |
| Hold on VA consumption | 22VA |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
View All
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Description
- Lauritz Knudsen MCX range of 4 pole contactors is available from 16A to 800A AC-1.
- The contactors are widely used in conjunction with auto source transfer controller for transfer of power from mains to backup supply.
Overview
| Ambient temperature | -20 to 60 degree C |
|---|---|
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 690V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 240 V AC |
| Rated operational current at 415V | 130A (AC1) |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 4P |
| Height(mm) | 109 |
| Width(mm) | 103 |
| Depth(mm) | 120.5 |
| Coil Operating band %Uc (Pick up) | 80 - 110 % |
| Coil Operating band %Uc (Drop off) | 40 - 60 % |
| Pick up VA consumption | 190VA |
| Hold on VA consumption | 22VA |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
View All
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
