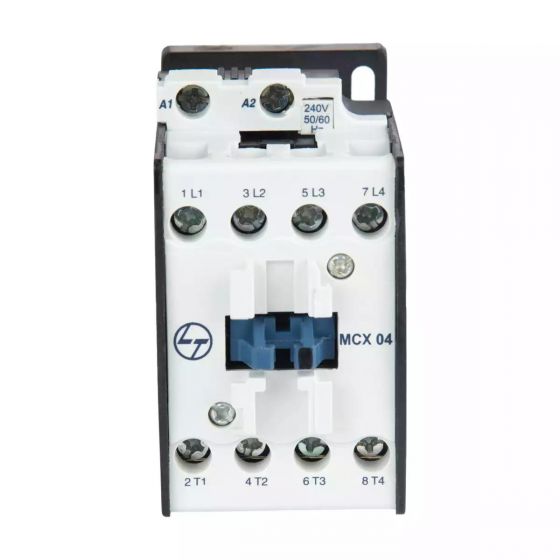

Lauritz Knudsen MCX Power Contactor 40A, 4 Pole, 415V AC | AC1 Rating - 220A | 50/60 Hz | Electrical Coil
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen MCX Power Contactor 40A, 4 Pole, 415V AC | AC1 Rating - 220A | 50/60 Hz | Electrical Coil
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen MCX Contactor 40A 4P 415V AC (AC 1) with 220V AC Coil (50–60 Hz) is a heavy-duty switching device designed for efficient & reliable control of electrical loads in industrial & commercial applications. With a 40A current rating & 4 pole configuration, it is ideal for handling high-capacity load requirements in multi-phase systems.
Designed for AC 1 duty applications, this contactor is suitable for switching resistive & non-inductive loads, such as heating systems & power distribution circuits. The 220V AC coil ensures compatibility with commonly used control voltage systems, offering stable & efficient operation. Built using premium materials & precision engineering, it delivers long-lasting durability, consistent performance, & high reliability in demanding industrial environments.
Purpose & Function
This contactor is designed for efficient electrical switching & control:
• Enables safe switching of electrical circuits & loads
• Controls resistive loads under AC 1 utilization category
• Provides reliable operation in automation systems
• Supports efficient power distribution management
• Enhances system safety & operational efficiency
Electrical Configuration
• Product type: Contactor
• Model: MCX
• Rated current: 40A
• Number of poles: 4P
• Voltage rating: 415V AC
• Utilization category: AC 1 (resistive loads)
• Coil voltage: 220V AC
• Frequency: 50–60 Hz
• Function: Electrical switching & load control
Construction & Design
Engineered for durability & high-performance operation:
• High-quality contacts for efficient electrical conductivity
• Compact & modular design for optimized panel installation
• Heavy-duty construction ensures long service life
• Precision-engineered switching mechanism for reliability
• Suitable for demanding industrial applications
Safety & Protection
• Ensures safe switching under rated load conditions
• Reduces risk of electrical faults & equipment damage
• Provides stable & consistent operational performance
• Enhances safety of control circuits & systems
• Improves overall system reliability
Mounting & Installation
• Suitable for panel or DIN rail mounting
• Compact design optimizes control panel space
• Quick & easy installation process
• Ensures secure & stable electrical connections
• Compatible with standard industrial panel layouts
Application Domains
• Industrial control panels
• Automation & PLC systems
• Power distribution systems
• High-capacity resistive load switching
• Commercial & infrastructure installations
• Electrical control & switching systems
Key Features
• 40A rated MCX contactor
• 4-pole configuration for multi-circuit control
• 415V AC operational voltage
• 220V AC coil (50–60 Hz)
• Heavy-duty & reliable industrial design
Applications
• Switching of high-capacity resistive loads
• Industrial automation systems
• Control panels & switchgear assemblies
• Power distribution control
• Heating & electrical load systems
FAQs
1. What is a contactor?
Ans: A contactor is an electrical device used to safely switch & control power circuits.
2. What does 4P mean?
Ans: It indicates a four-pole contactor capable of controlling four circuits simultaneously.
3. What is AC 1 duty?
Ans: AC 1 refers to switching resistive or non-inductive loads such as heating systems.
4. What is the coil voltage?
Ans: This model operates with a 220V AC control coil.
5. Where is this contactor used?
Ans: It is used in industrial control panels, automation systems, & power distribution setups.
6. Is it suitable for motor loads?
Ans: It is mainly intended for resistive loads; motor control requires AC 3 rated contactors.
7. Is installation easy?
Ans: Yes, it is designed for quick & secure installation in industrial panels.
Overview
| Ambient temperature | -20 to 60 degree C |
|---|---|
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 690V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 220 V AC |
| Rated operational current at 415V | 40A (AC1) |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 4P |
| Height(mm) | 83 |
| Width(mm) | 45 |
| Depth(mm) | 83.7 |
| Coil Operating band %Uc (Pick up) | 55 - 120 % |
| Coil Operating band %Uc (Drop off) | 30 - 50 % |
| Pick up VA consumption | 68VA |
| Hold on VA consumption | 11VA |
