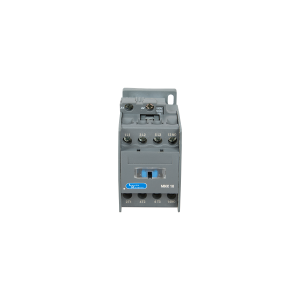

Lauritz Knudsen MNX Power Contactor 18A, 3 Pole, 220V AC | AC1 Rating - 30A | AC3 Rating - 18A | with 1 in auxilary contact | Electrical Coil | Click fit type construction up to 40A
SKU :
CS94101KOOO
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CS94101KOOO
Lauritz Knudsen MNX Power Contactor 18A, 3 Pole, 220V AC | AC1 Rating - 30A | AC3 Rating - 18A | with 1 in auxilary contact | Electrical Coil | Click fit type construction up to 40A
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹1,680.00
₹1,416.00
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Estimated delivery:
Out of stock
Disclaimer:
Following the brand transition from L&T Switchgear to Lauritz Knudsen effective 29 May 2024, products supplied by sellers may carry either the L&T or Lauritz Knudsen brand name depending on stock availability.
Show More
Lauritz Knudsen MNX Power Contactor 18A, 3 Pole, 220V AC | AC1 Rating - 30A | AC3 Rating - 18A | with 1 in auxilary contact | Electrical Coil | Click fit type construction up to 40A
₹1,680.00
₹1,416.00
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Lauritz Knudsen MNX power contactor are mainly used in motor feeder ad control system applications.
- The range is availabe from 9A to 650A (AC-3) and provides a relaible performance across diverse condition like high ambient temperature, humidity etc.
- Standardized accessories and spares are available for the entire range
Overview
| Ambient temperature | -20 to 55 degree C |
|---|---|
| Mechanical Life (No. of operating cycles) | 7200 Cy/hr |
| Rated impulse withstand voltage (Uimp) | 8kV |
| Rated Insulation Voltage Ui (V) | 690V |
| Conformance to Standards | IS/IEC 6094741, IEC 6094741 |
| Coil Voltage | 220 V AC |
| Rated operational current at 415V | 18A |
| Discount Percentage | Between 0-10 % |
| No. of Poles | 3P |
| Height(mm) | 83 |
| Width(mm) | 45 |
| Depth(mm) | 88 |
| Rated kW | 9.3kW |
| Rated making capacity | 450A |
| Coil Operating band %Uc (Pick up) | 65 - 120 % |
| Rated breaking capacity | 250A |
| Mechanical Life | 15 Million |
| Coil Operating band %Uc (Drop off) | 35 - 50 % |
| Pick up VA consumption | 68VA |
| Hold on VA consumption | 11VA |
