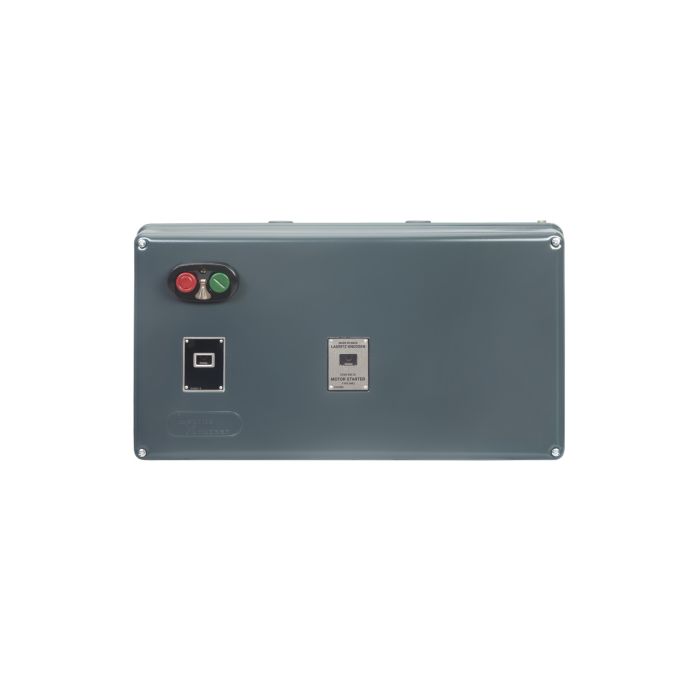

Lauritz Knudsen MK2 FASD, Fully Automatic Star Delta Starter - 15 HP | Relay Range 20-32A | 360V AC | with ST100 Timer
SKU :
CS91583COEO
Recommended
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CS91583COEO
Lauritz Knudsen MK2 FASD, Fully Automatic Star Delta Starter - 15 HP | Relay Range 20-32A | 360V AC | with ST100 Timer
Further Offers for this product:
No sellers found for this product.
₹15,200.00
₹11,861.36
Incl. Tax
To View the best prices please Log In / Register
Shipping:
Out of stock
Lauritz Knudsen MK2 FASD, Fully Automatic Star Delta Starter - 15 HP | Relay Range 20-32A | 360V AC | with ST100 Timer
₹15,200.00
₹11,861.36
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
MK2 with 20-32A Relay range for higher current application
New MK2 Contactor (AC3-25A)
Features:
1. 200-400 V wide band coil operation
2. Field proven starters
3. Reliable protection against overload
4. Reliable operation & performance under adverse field conditions viz. Hot & humid environment, supply voltage-unbalance etc.
5. ON & OFF indication
6. Rugged silver tipped contacts
7. Enclosure provides protection against dust, humidity & insects
8. Compatible with Voltage/Current Auto SPPR
9. Can be connected to Dry Run Protection device
Applications:
1. DOL Starters - Available up to 7.5hp
2. Star-Delta Starters - Available up to 15hp (Types : Fully-Automatic / Semi-Automatic)
3. Agriculture water pumps
4. Flour mill motors
Overview
| Coil Voltage | 360V |
|---|---|
| DOL/SASD/ FASD | FASD |
| Discount Percentage | Between 0-10 % |
| type | MK2 FASD |
| HP | 15HP |
| Length(mm) | 399 |
| Breadth(mm) | 115 |
| Height(mm) | 221 |
| Relay Range (A) | 20 - 32A |
Documents
Warranty
All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
View All
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
