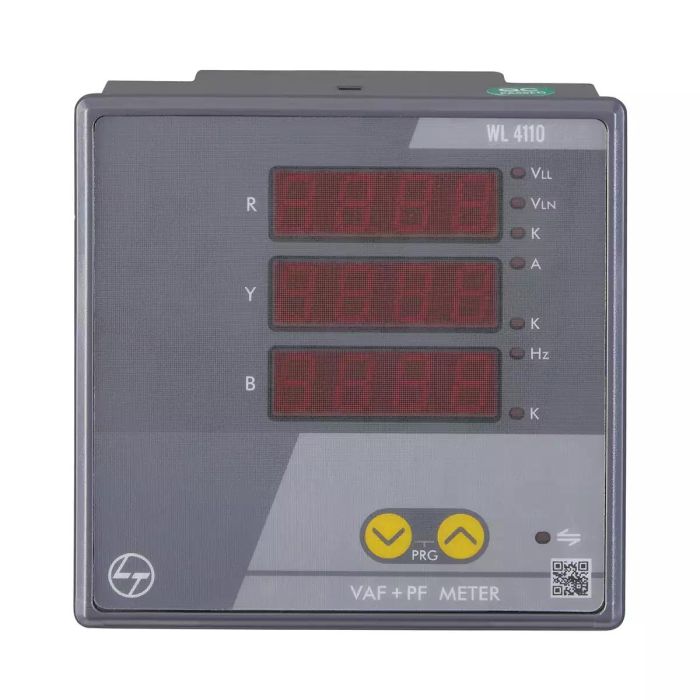

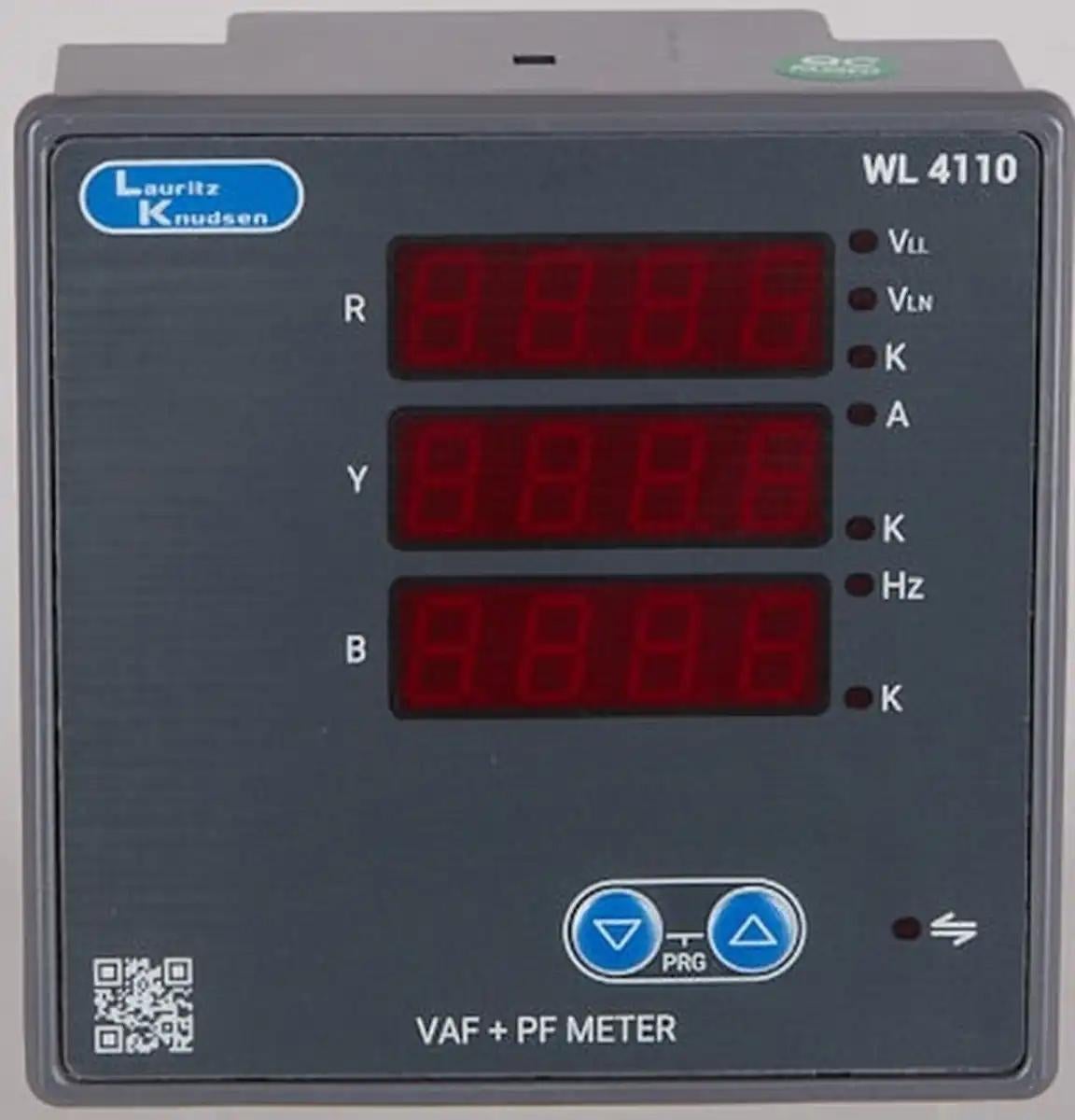

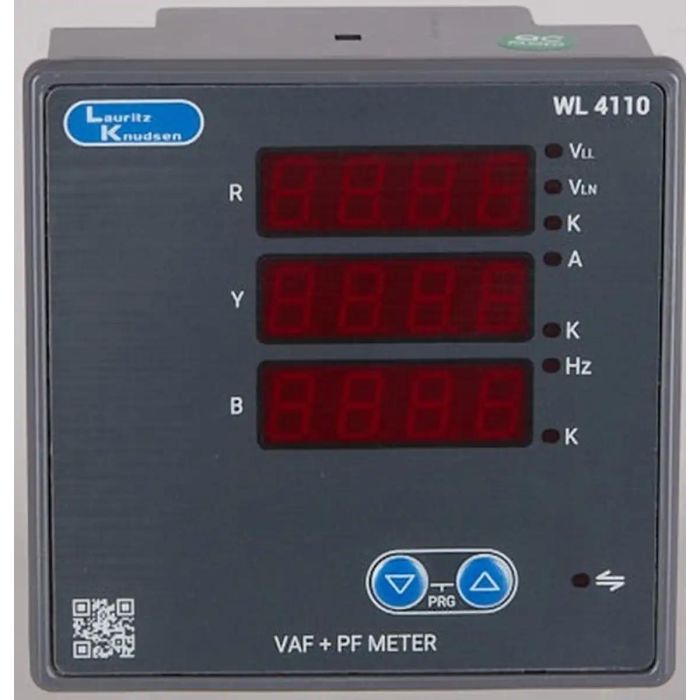

Lauritz Knudsen VAF + PF Digital Meter, Cl 1
₹2,555.00
₹2,411.92
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Auto and manual scrolling.
- Password protection site selectable
- Accuracy Class 1 as per IEC 62053-21 and Class 0.5 as per IEC 62053-22
- True RMS measurement
- Field programmable CT, PT ratio
- Site selectable 1A/5A
- Phase wise and average display of voltage and current as per applicable meter
- Inbuilt selector switch for 3 phase models
- Site selectable for 3 Phase 4 wire, 3 Phase 3 wire, 1 phase
- Wide operating range of 80 to 300 V AC/DC auxiliary supply
- Suitable for 50/60 Hz
Lauritz Knudsen This is a basic Multifinction Meter which is used to Measure the Voltage, Current, Frequency & Power Factor with Class 1 Accuracy.
Salient Propositions and Features:
This Meter can be used at Residential / Industrial Power Distribution Panel to measure basic Electrical Power Parameters.
Overview
| Length(mm) | 58 |
|---|---|
| Height(mm) | 96 |
| Width(mm) | 96 |
| Communication | Without RS 485 |
| Type of Measurement | 3 Phase 3 Wire, 3 Phase 4 Wire & 1 Phase |
| Type of Measurement - 2 | True Root Mean Square Values with 64 Samples per Cycle |
| Display & Resolution | 3 Line LED - 4 Digit |
| Weight (in grams) | 300 |
| Phase | 1 & 3 Ph |
| Size | 96x96x58 mm |
| Accuracy Class | CL 1 |
| Warranty | 1 Year |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
View All
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
