Digital panel meters have changed how the technology works by giving accurate electricity consumption readings. You can keep tabs on your electricity inputs and determine how much electricity is used. There are many different ways you can leverage the power of these panels.

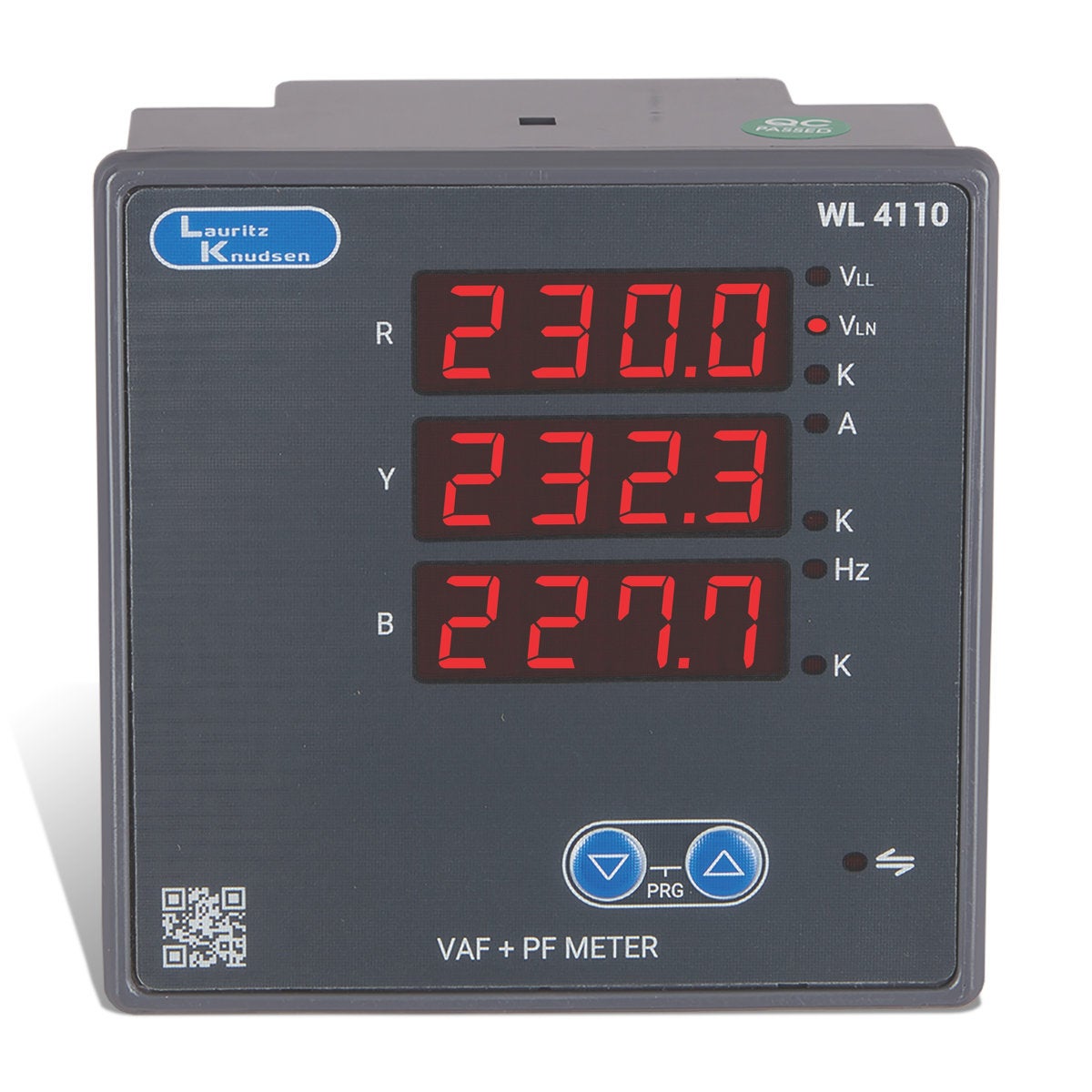

Lauritz Knudsen 41XX Series VAF + PF Meter | Digital meter CL1 with RS485 | Flush mounting 96 x 96 mm | CT secondary site selectable 1A/5A
SKU :
WL411011OOOO
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
WL411011OOOO
Lauritz Knudsen 41XX Series VAF + PF Meter | Digital meter CL1 with RS485 | Flush mounting 96 x 96 mm | CT secondary site selectable 1A/5A
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹3,330.00
₹3,020.80
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Estimated delivery:
Out of stock
Disclaimer:
Following the brand transition from L&T Switchgear to Lauritz Knudsen effective 29 May 2024, products supplied by sellers may carry either the L&T or Lauritz Knudsen brand name depending on stock availability.
Show More
Lauritz Knudsen 41XX Series VAF + PF Meter | Digital meter CL1 with RS485 | Flush mounting 96 x 96 mm | CT secondary site selectable 1A/5A
₹3,330.00
₹3,020.80
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Auto and manual scrolling.
- Password protection site selectable
- Accuracy Class 1 as per IEC 62053-21 and Class 0.5 as per IEC 62053-22
- True RMS measurement
- Field programmable CT, PT ratio
- Site selectable 1A/5A
- Phase wise and average display of voltage and current as per applicable meter
- Inbuilt selector switch for 3 phase models
- Site selectable for 3 Phase 4 wire, 3 Phase 3 wire, 1 phase
- Wide operating range of 80 to 300 V AC/DC auxiliary supply
- Suitable for 50/60 Hz
- Suitable with EMS, PMS, SCADA Softwares
Lauritz Knudsen This is a basic Multifinction Meter which is used to Measure the Voltage, Current, Frequency & Power Factor with Class 1 Accuracy.
Salient Propositions and Features:
Packing Inclusions: Meter, Manual, Calibration Report, Panel Fixing & Screws
This Meter can be used at Residential / Industrial Power Distribution Panel to measure basic Electrical Power Parameters.
Overview
| Length(mm) | 58 |
|---|---|
| Height(mm) | 96 |
| Width(mm) | 96 |
| Communication | With RS 485 |
| Type of Measurement | 3 Phase 3 Wire, 3 Phase 4 Wire & 1 Phase |
| Type of Measurement - 2 | True Root Mean Square Values with 64 Samples per Cycle |
| Display & Resolution | 3 Line LED - 4 Digit |
| Weight (in grams) | 300 |
| Phase | 1 & 3 Ph |
| Size | 96x96x58 mm |
| Accuracy Class | CL 1 |
| Warranty | 1 Year |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
View All
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
