New Launch

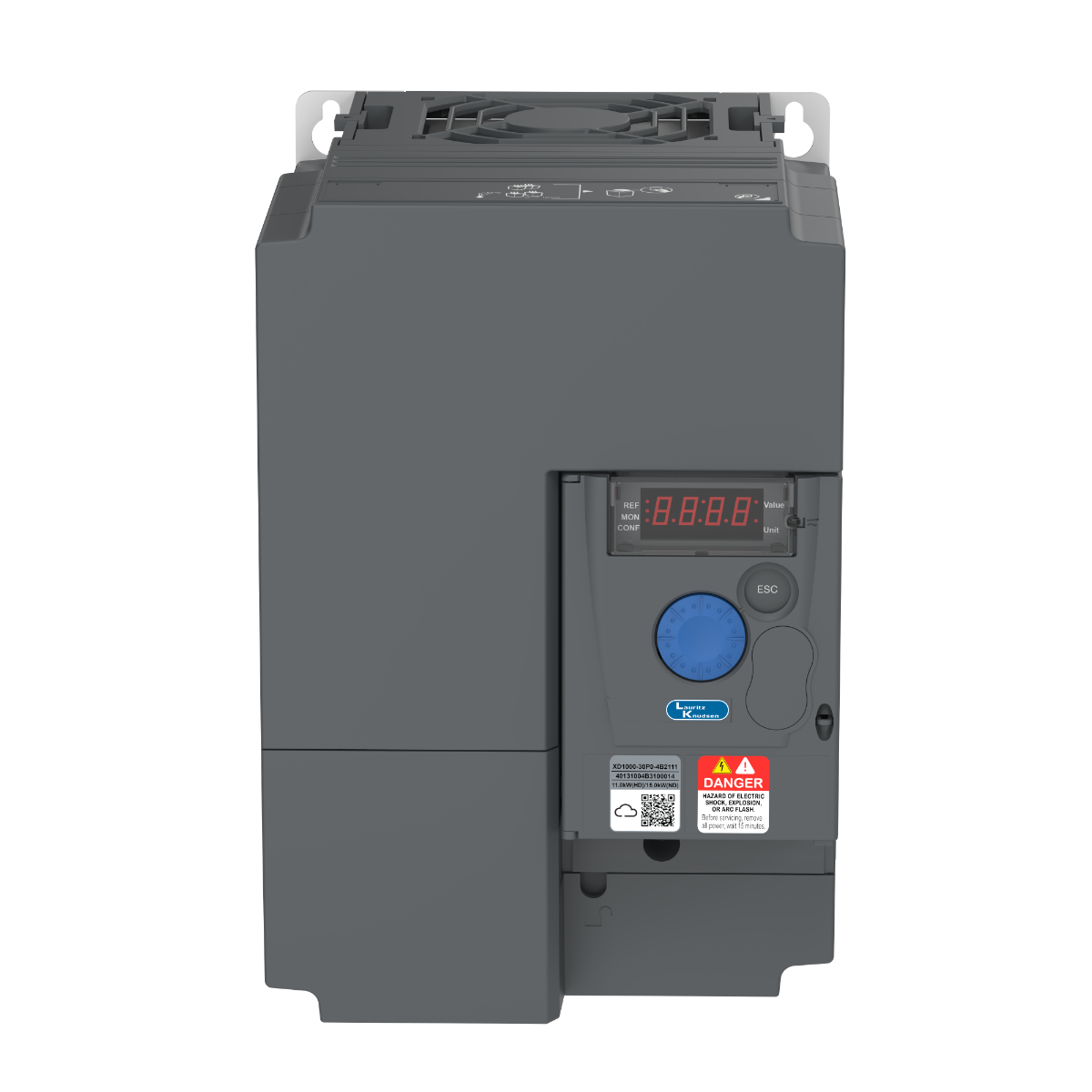

xD1000 Series 415V Drive 11.0kW(HD)/15.0kW(ND)
XD1000-30P0-4B2111
₹88,000.00
₹46,728.00
Incl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
XD1000-30P0-4B2111
xD1000 Series 415V Drive 11.0kW(HD)/15.0kW(ND)
| Seller Name | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹1000
|
No sellers found for this product.
Out of stock
xD1000 Series 415V Drive 11.0kW(HD)/15.0kW(ND)
₹88,000.00
₹46,728.00
Description
literature section
Download Getting Started Guide
The xD1000 Drive is a compact yet robust variable frequency drive (VFD) designed to meet the needs of various general-purpose applications such as pump, fan, conveyor & compressors cutting across Industry & Building segments. It is also capable to handle machine applications like F&B machines, packaging machines, woodworking machines, textile machines, special purpose machines etc. It offers a user-friendly interface that simplifies installation and operation, making it accessible for both experienced and novice users.
Standard features
- Rated @ 55 degC (HD), @ 50 deg C (ND)
- Transient overtorque 170%~200%
- 4DIs, 2DOs,1AI, 1AO
- Inbuilt PID with 4 Preset PID references, Sleep & Wakeup, Predictive speed
- Auxiliary Pump control
- Catch on the Fly
- Skip Frequency
- Automatic Restart
- Current Limitation
- 8 preset speeds
- Auto restart
- Cooling fan control
- Fast stop ramp divider
Application & Segments
- Pump, Fan, Conveyor & Compressor
- Building HVAC loads - AHU, cooling tower fans & pumps, compressors, HVLS fans
- Ceramic machine - Conveyors
- Material handling - Long Travel, Cross Travel, Conveyors
- F&B machines
- Packaging machine
- Wood working machine
- Textile machine
- Machine tools
- Special purpose machine
- Washing machine
Product Details
| Rated Input Voltage | 3 P 380-460 Vac |
|---|---|
| Communication | Modbus RS 485 |
| Warranty | 1 Year |
| Display & Resolution | Single Line LED - 4 Digit |
| Operational Frequency (Hz) | 50/60Hz |
| IP Protection | IP 20 |
| Ambient temperature | HD : -10 – +55 °C without derating ND : -10 – +50 °C without derating |
| Heavy Duty Output (kW) | 11kW |
| Normal Duty Output kW | 15 |
| Rated Output Current (HD) | 24A |
| Rated Output Current (ND) | 30 |
| Overloading Capacity (HD) | Continuous current with 150% overload for 60 secs. |
| Overloading Capacity (ND) | Continuous current with 110% overload for 60 secs. |
| Built-In Keypad | 4 digit, 7 segment LED |
| Inputs/Outputs | 4DIs, 2DOs,1AI, 1AO |
| Control Method | V/F, Slip Compensation, V/F - Energy Saving, Quadratic V/F, Sensorless Vector Control (SVC) |
| Max Output Frequency | 400Hz |
| Certifications | CE, RoHS |
| Compliance standards | IEC 61800-3 IEC 61800-5-1 IEC 60721-11 |
| PCB Protection | Conformal coating class 3S2 for Dust and class 3C3 for Chemical pollution, complying to IEC 60721-3-11 |
| Height(mm) | 150.0 |
| Width(mm) | 232.0 |
| Depth(mm) | 171.0 |
